Product Description

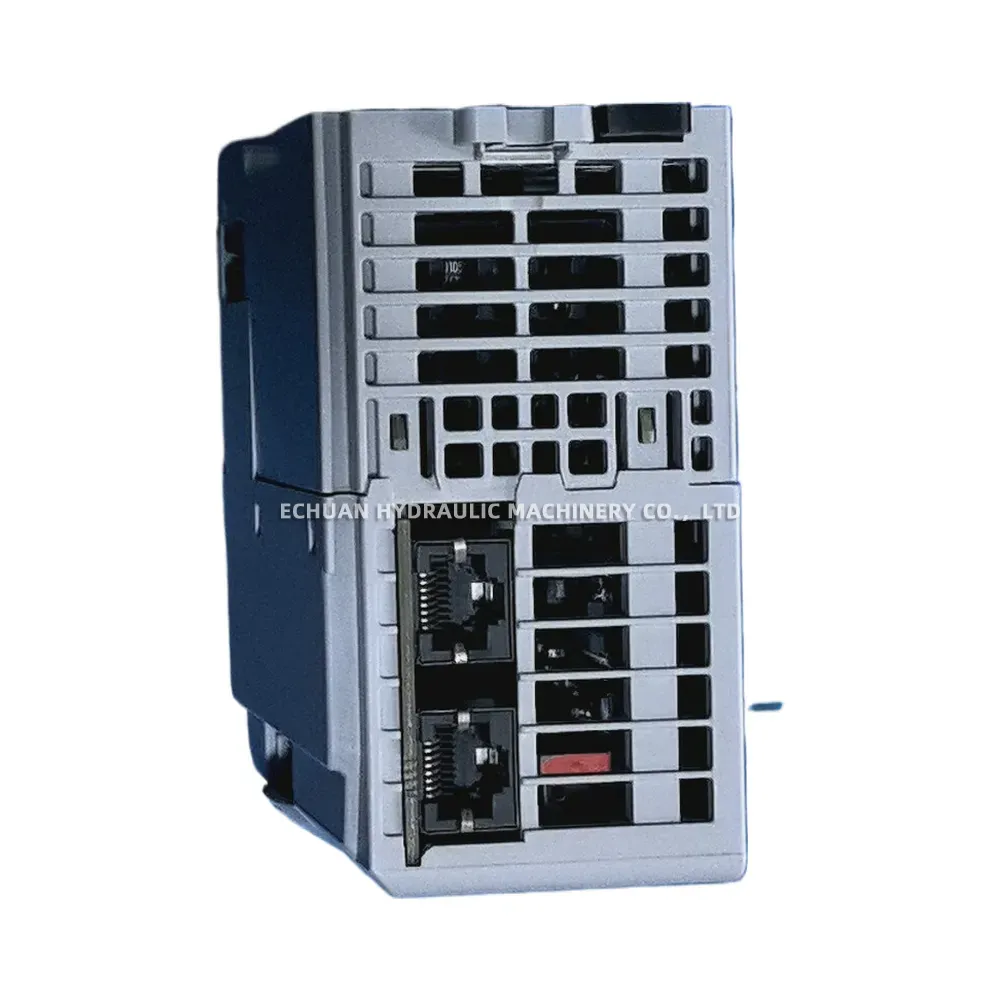

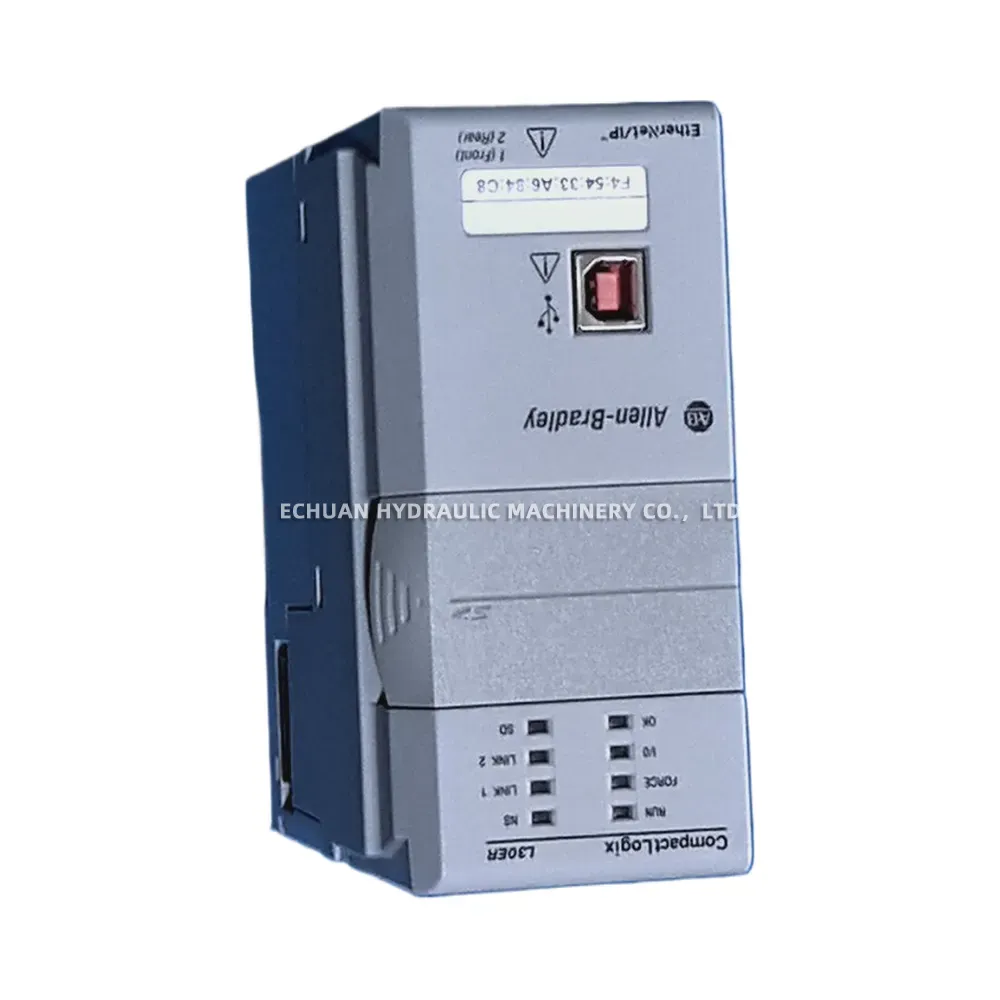

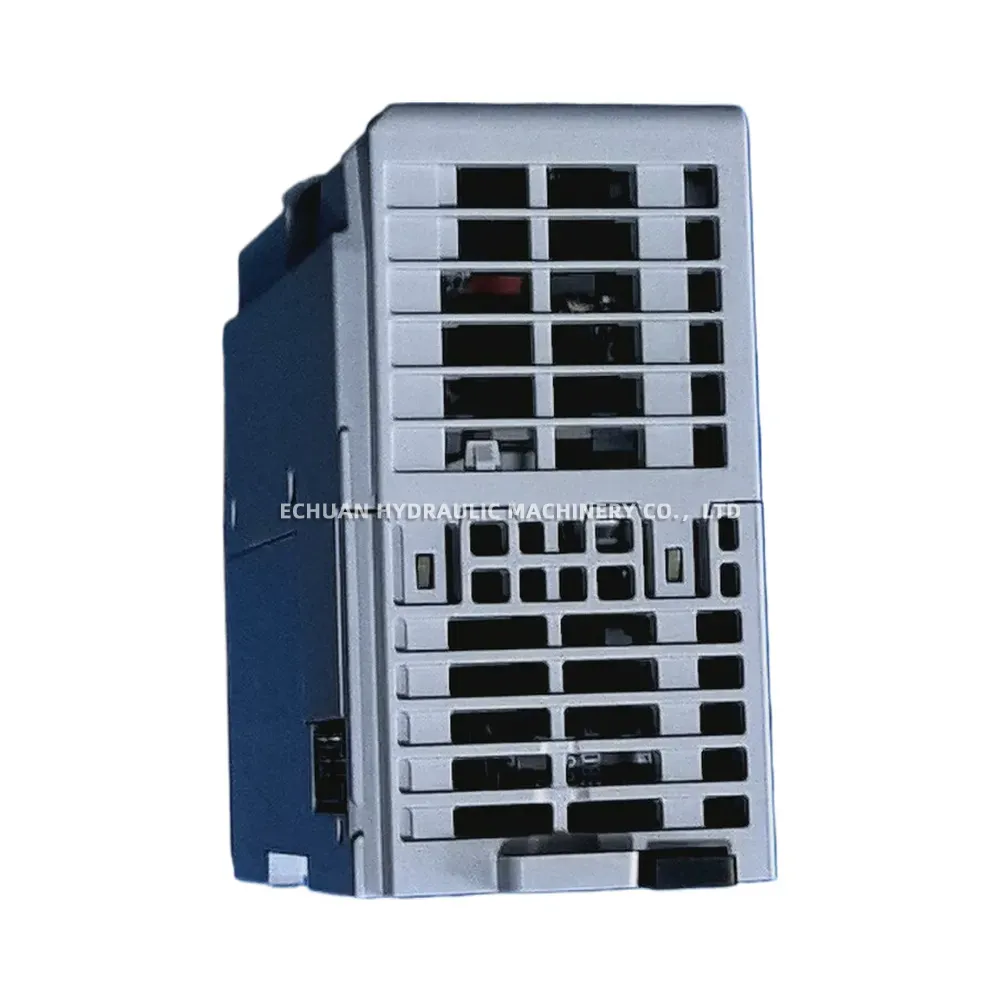

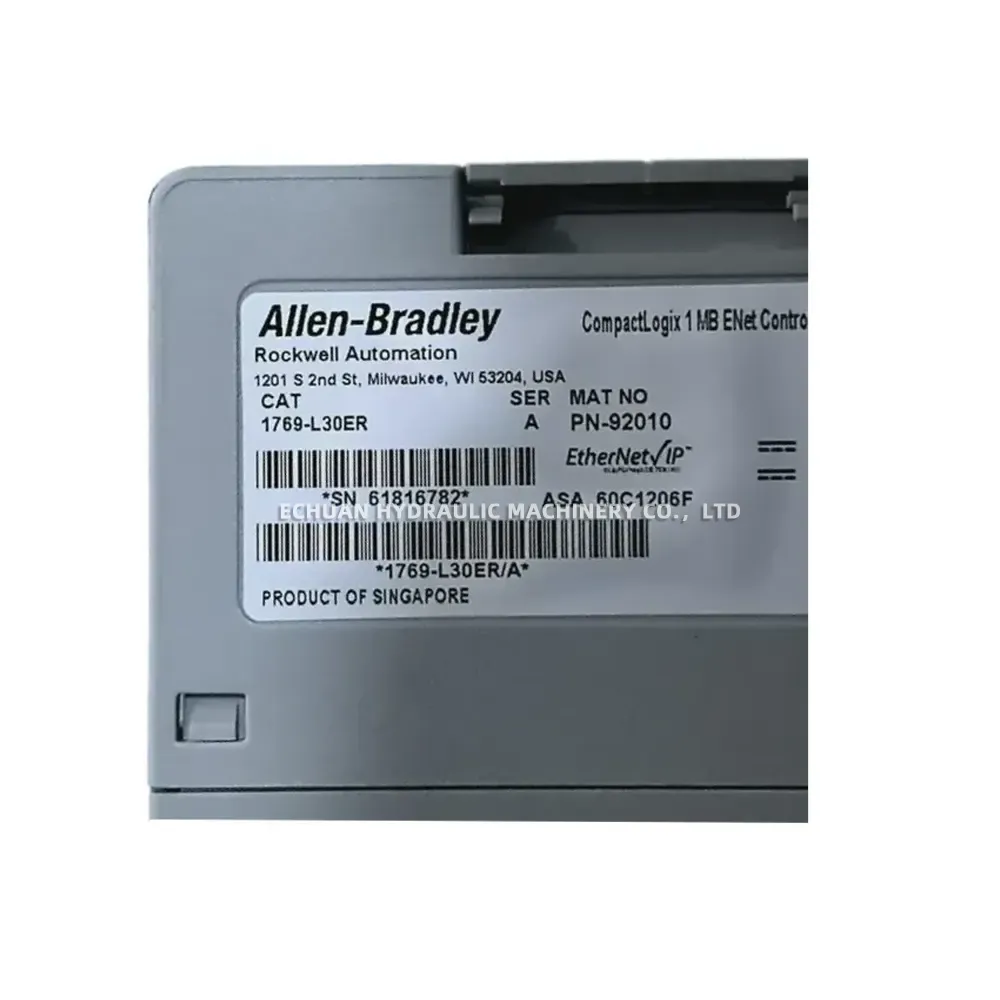

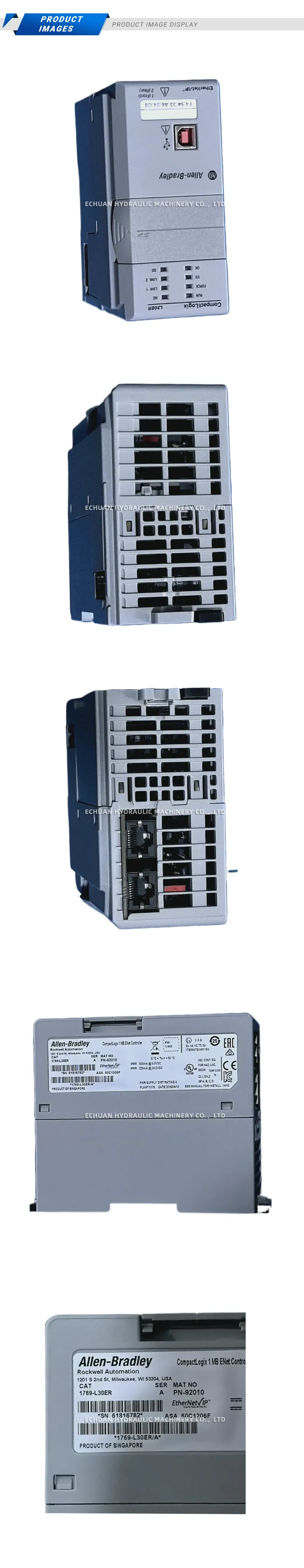

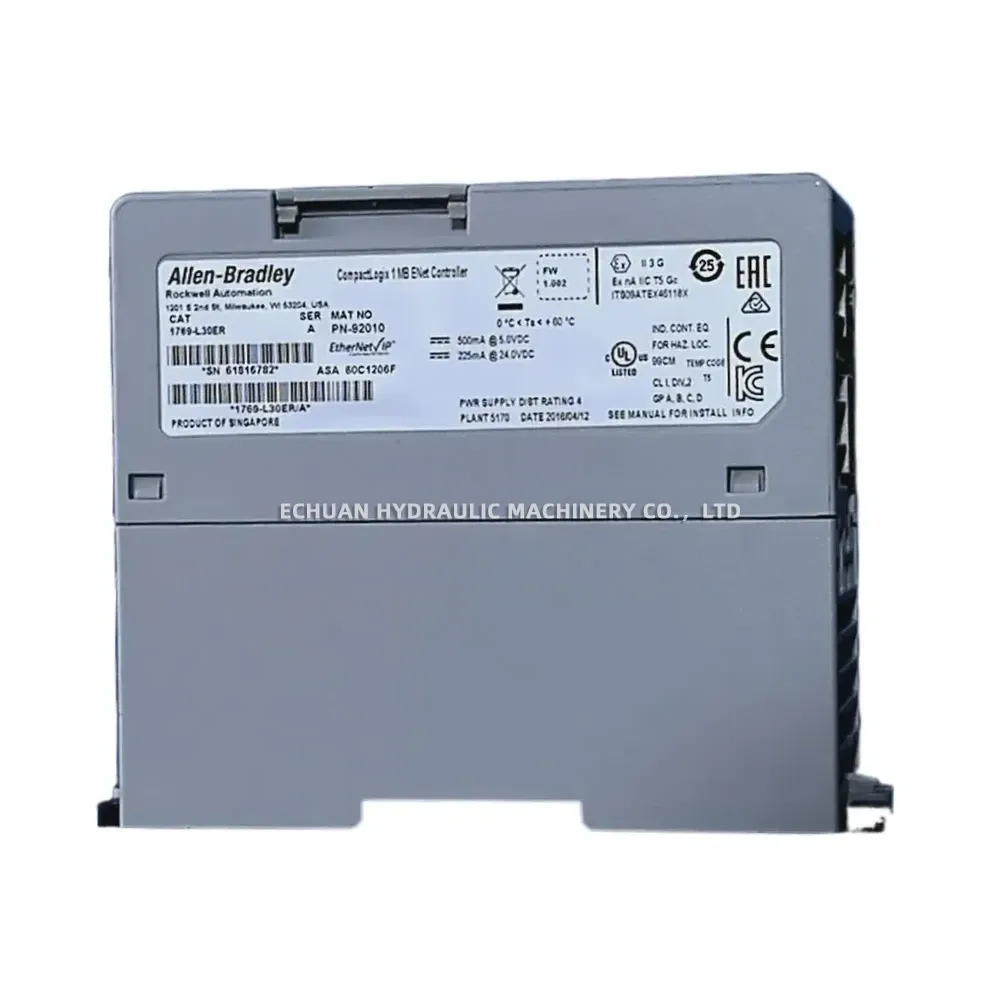

Allen-Bradley 1769-L30ER CompactLogix Controller
The Allen-Bradley 1769-L30ER by Rockwell Automation is a highly versatile CompactLogix 5370 L3 controller designed for complex industrial automation control applications. This robust module features 1 MB of user memory and built-in dual EtherNet/IP connectivity, making it ideal for high-performance network integration and device-level ring (DLR) topologies. Equipped with a convenient USB port, it allows for easy programming, configuration, and firmware updates. The controller includes comprehensive diagnostic status LEDs (NS, Link 1/2, SD, Run, Force, I/O, and OK) for real-time system monitoring. Built to withstand demanding industrial environments, it operates reliably within a temperature range of 0°C to +60°C and holds multiple hazardous location certifications, including ATEX and UL Class I, Division 2.
Technical Specifications:
- Brand: Allen-Bradley / Rockwell Automation
- Model/Catalog Number: 1769-L30ER (Series A)
- Controller Type: CompactLogix 1 MB EtherNet/IP Controller
- User Memory: 1 MB
- Communication Ports: Dual EtherNet/IP ports, 1 x USB port
- Power Requirements: 500mA @ 5.0VDC; 225mA @ 24.0VDC
- Power Supply Distance Rating: 4 modules
- Operating Temperature: 0°C to +60°C
- Diagnostic LEDs: Network Status (NS), Link 1/2, SD, Run, Force, I/O, OK
- Certifications: UL Listed (Class I, Div 2, Groups A, B, C, D), ATEX (Ex nA IIC T5 Gc), CE, EAC
Allen-Bradley 1769-L30ER CompactLogix Controller
Optimize your industrial automation with the Allen-Bradley 1769-L30ER CompactLogix Controller. Featuring 1MB memory, built-in dual EtherNet/IP connectivity, and a robust design for hazardous locations, this PLC delivers reliable, high-speed control for modern manufacturing systems.
