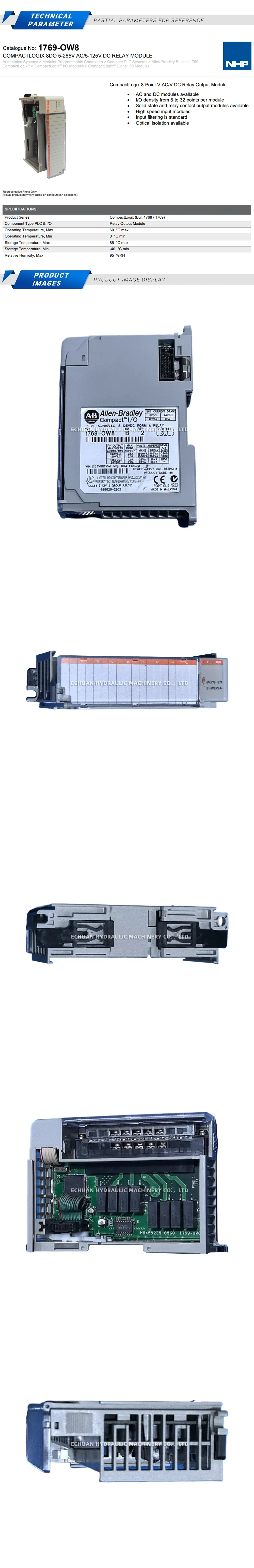

Product Description

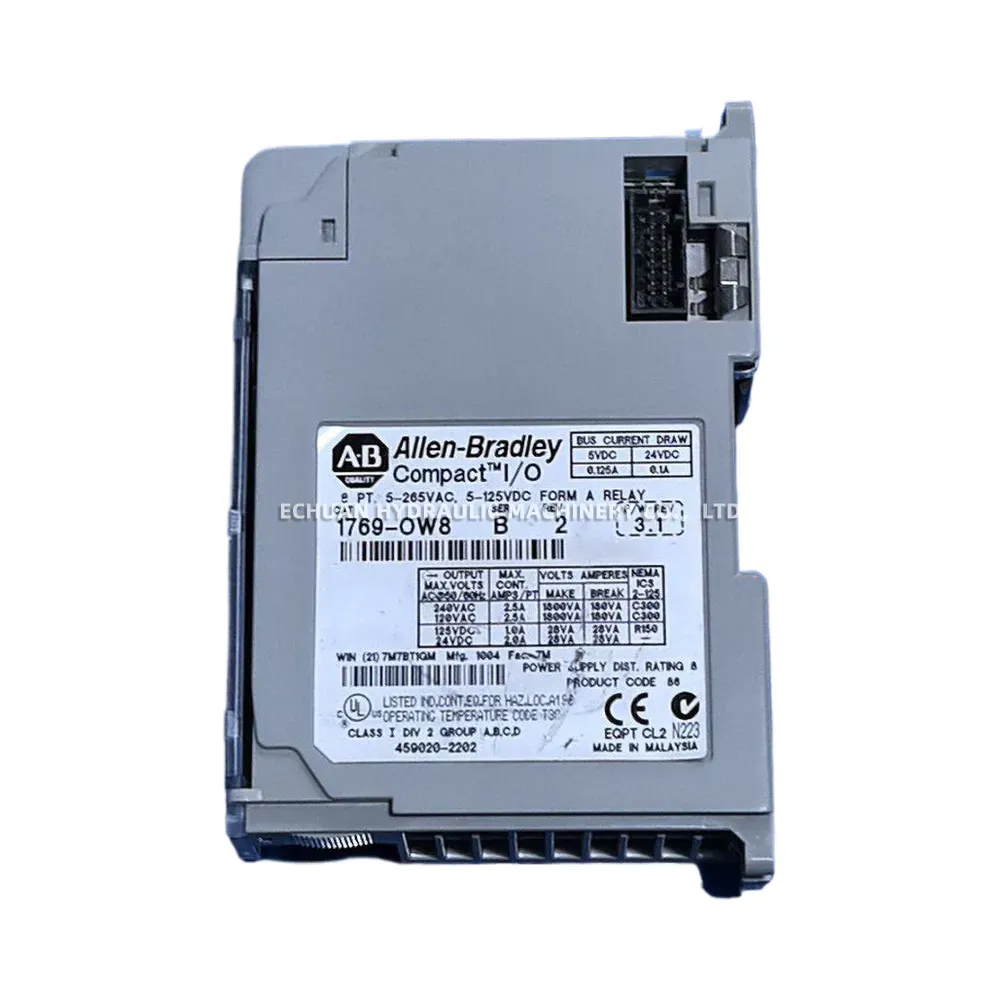

Allen-Bradley 1769-OW8
The Allen-Bradley 1769-OW8 is a Compact I/O digital relay output module designed for use with CompactLogix and MicroLogix 1500 controllers. It provides eight individually isolated, normally open (Form A) relay outputs, offering high flexibility for switching a wide range of AC and DC loads. This module is ideal for controlling devices such as motor starters, solenoids, contactors, and pilot lights in various industrial automation applications. Its robust design and individual isolation ensure reliable and safe operation by preventing channel-to-channel interference.
Technical Specifications:
- Outputs: 8 normally open (N.O.), individually isolated relays
- Operating Voltage Range: 5…265V AC, 5…125V DC
- Backplane Current: 125 mA at 5.1V DC; 100 mA at 24V DC
- Signal Delay: 10 ms maximum for both ON to OFF and OFF to ON
- Module Power Dissipation: 3.25 W maximum
Allen-Bradley 1769-OW8
Allen-Bradley 1769-OW8 CompactLogix 8-point digital relay output module with individually isolated contacts for reliable switching of AC and DC loads. A versatile I/O solution for industrial control systems.
