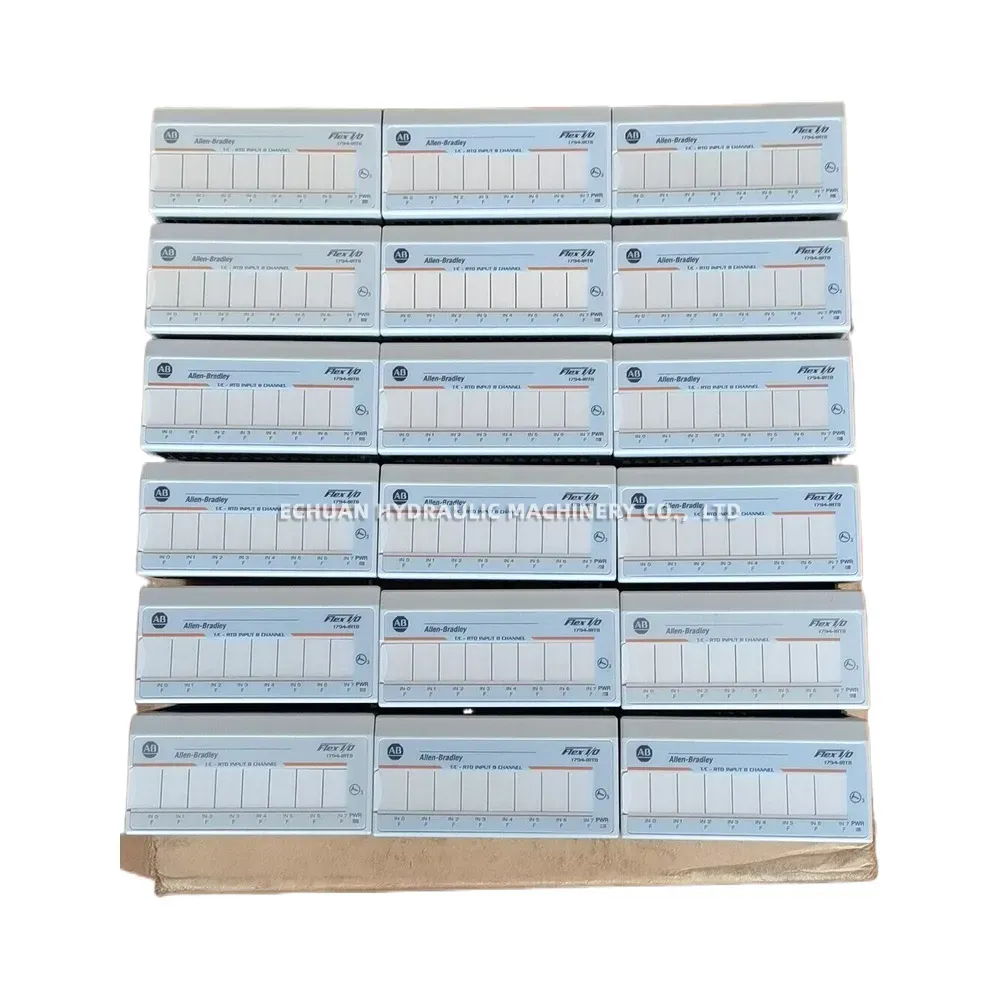

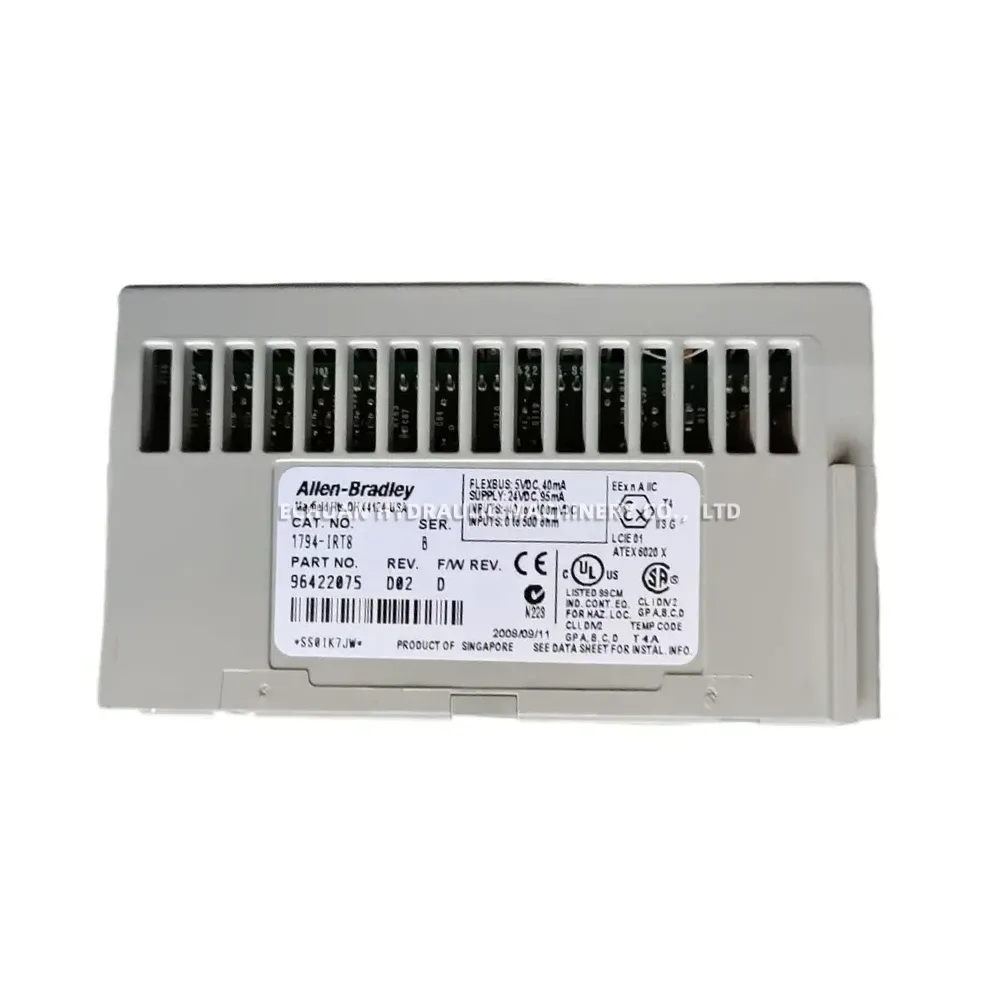

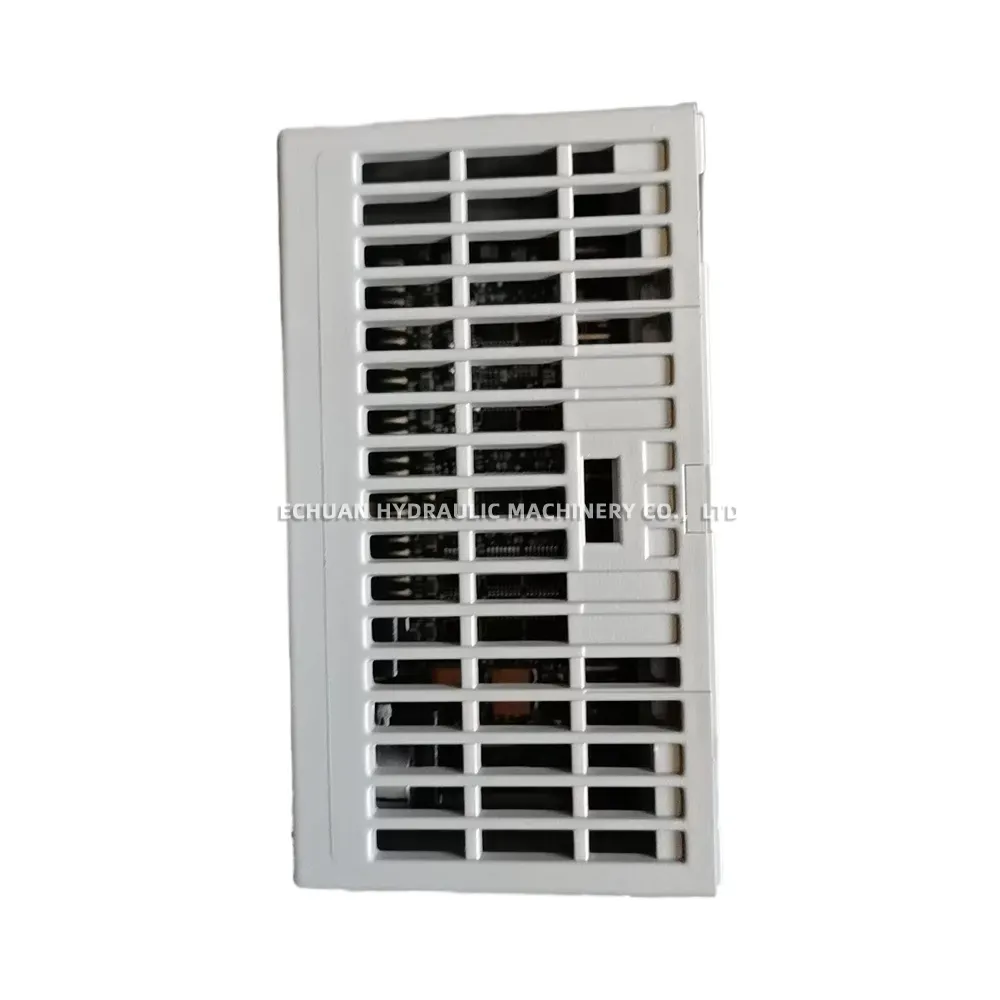

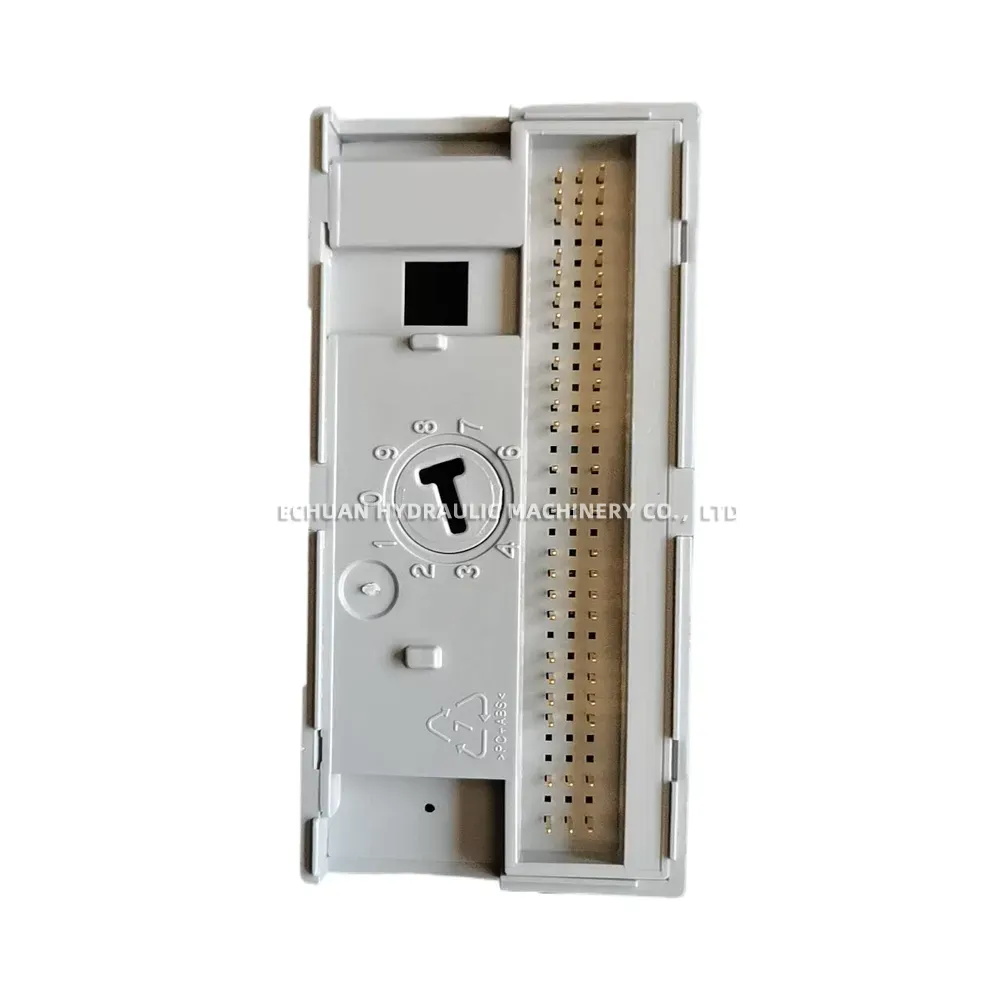

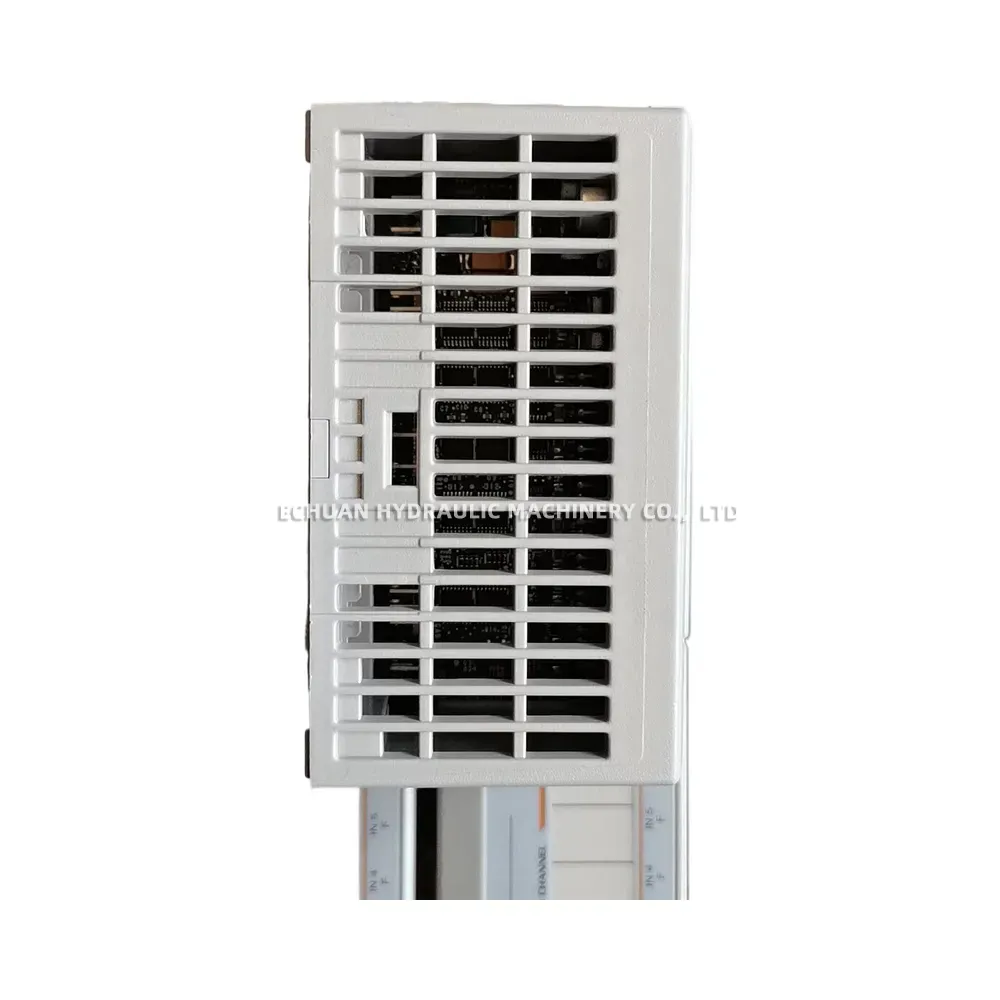

Allen-Bradley 1794-IRT8 Flex I/O RTD Input Module
The Allen-Bradley 1794-IRT8 is a high-performance Flex I/O RTD (Resistance Temperature Detector) input module designed for precision temperature monitoring and industrial automation applications. This 8-channel module provides isolated inputs for RTD sensors, ensuring accurate readings and robust signal integrity in demanding environments. Operating with an ENBUS power consumption of 5VDC at 40mA and a supply requirement of 24VDC at 55mA, it supports input ranges from -40 to +100 mVDC and 0 to 500 ohms. Built for durability and safety, the 1794-IRT8 is certified for use in hazardous locations, including Class I, Division 2, Groups A, B, C, and D, as well as Class I, Zone 2, Group IIC (T4 rating), making it an ideal choice for critical process control systems.
Technical Specifications:
- Brand: Allen-Bradley
- Model/Catalog Number: 1794-IRT8
- Module Type: Flex I/O RTD Input Module
- Number of Channels: 8 Isolated Inputs
- ENBUS Power Consumption: 5VDC, 40mA
- Supply Voltage: 24VDC, 55mA
- Input Voltage Range: -40 to +100 mVDC
- Input Resistance Range: 0 to 500 ohm
- Certifications: ATEX 6008 X, LCIE 01, Listed 321X IND. CONT. EQ.
- Hazardous Location Ratings: Class I, Div 2, Groups A,B,C,D; Class I, Zone 2, Group IIC T4
Allen-Bradley 1794-IRT8 Flex I/O RTD Input Module
Optimize your industrial control system with the Allen-Bradley 1794-IRT8 Flex I/O 8-Channel RTD Input Module. This rugged, hazardous-location certified module delivers precise temperature monitoring with isolated inputs, supporting -40 to +100 mVDC and 0 to 500 ohm ranges for seamless automation integration.
| Brand | Allen-Bradley |
|---|---|
| Model | 1794-IRT8 |
| Part No. | 644109707265 |
| Category | Electrical |
