Product Description

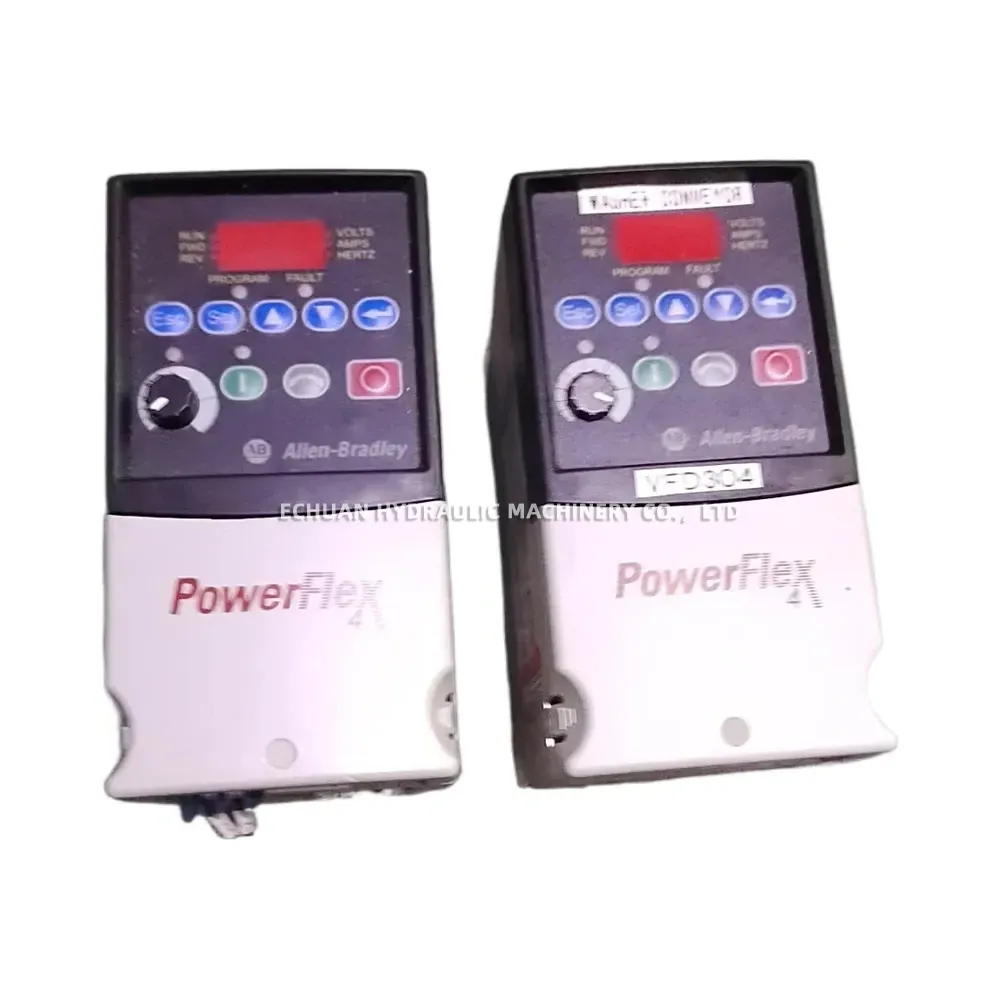

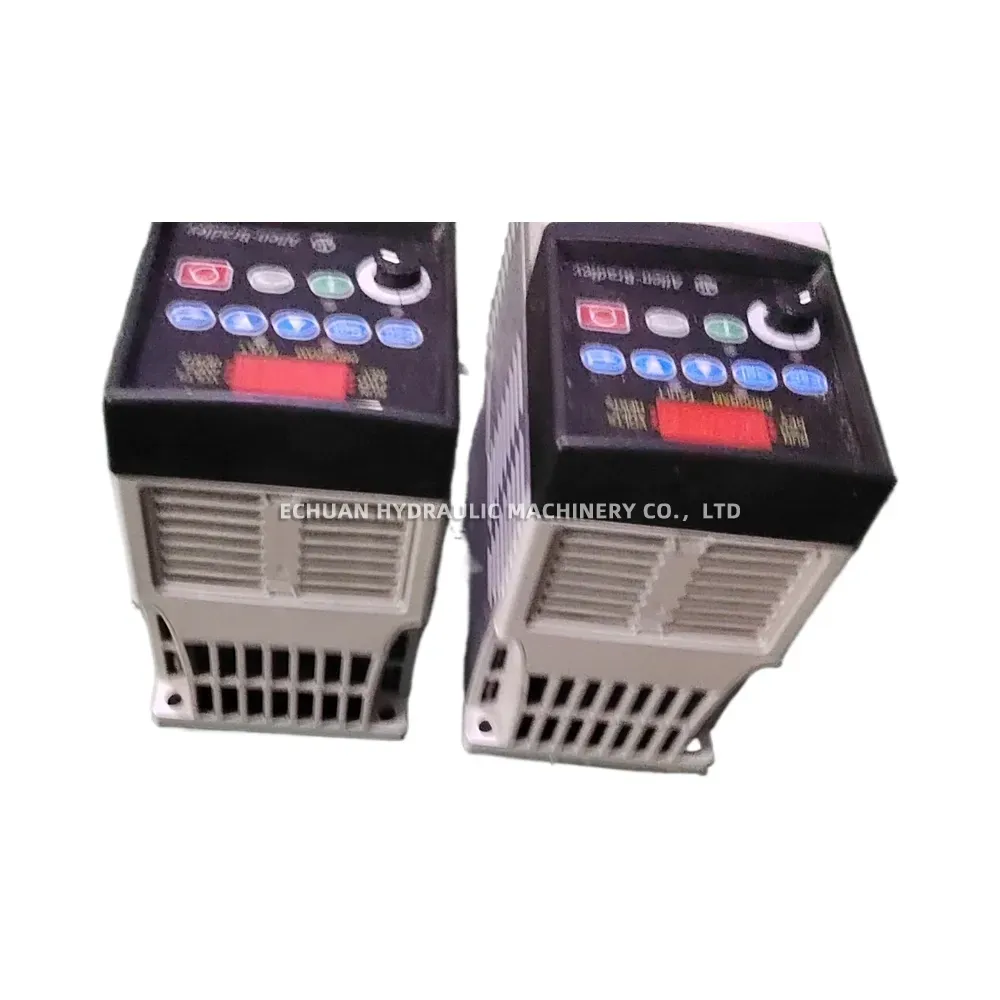

Allen-Bradley 22A-D2P3N104 AC Drive / Variable Frequency Drive
The Allen-Bradley 22A-D2P3N104 is a compact, high-performance PowerFlex 4 AC Drive engineered by Rockwell Automation. Designed for machine-level speed control, this variable frequency drive (VFD) supports a motor rating of 0.75 kW (1.0 HP) and requires a 3-phase, 380-480V AC input. It delivers a continuous output of 2.3 Amps and a 60-second overload capacity of 3.45 Amps, ensuring robust operation during peak demands. Featuring an IP20 / UL Open-Type enclosure rating and a high short-circuit current rating of 100kA, the 22A-D2P3N104 provides reliable, safe, and efficient motor control for a wide variety of industrial automation applications.

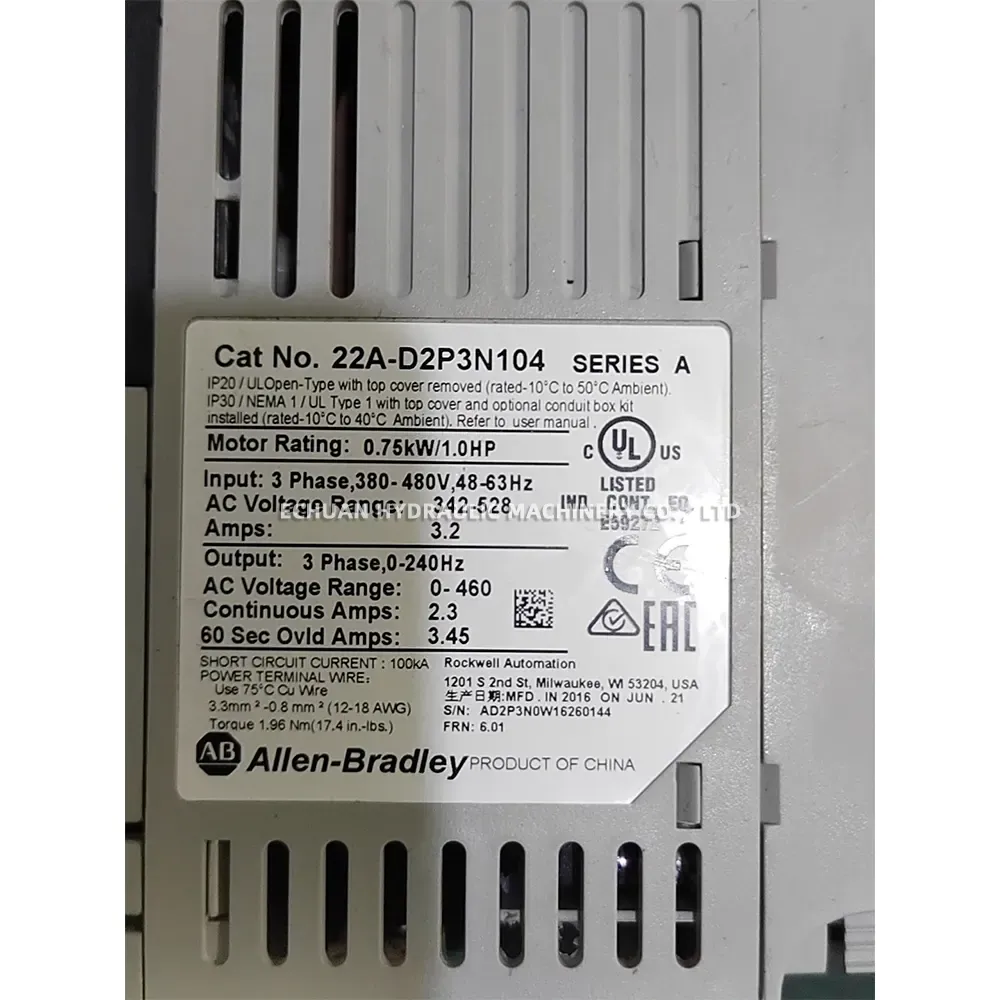

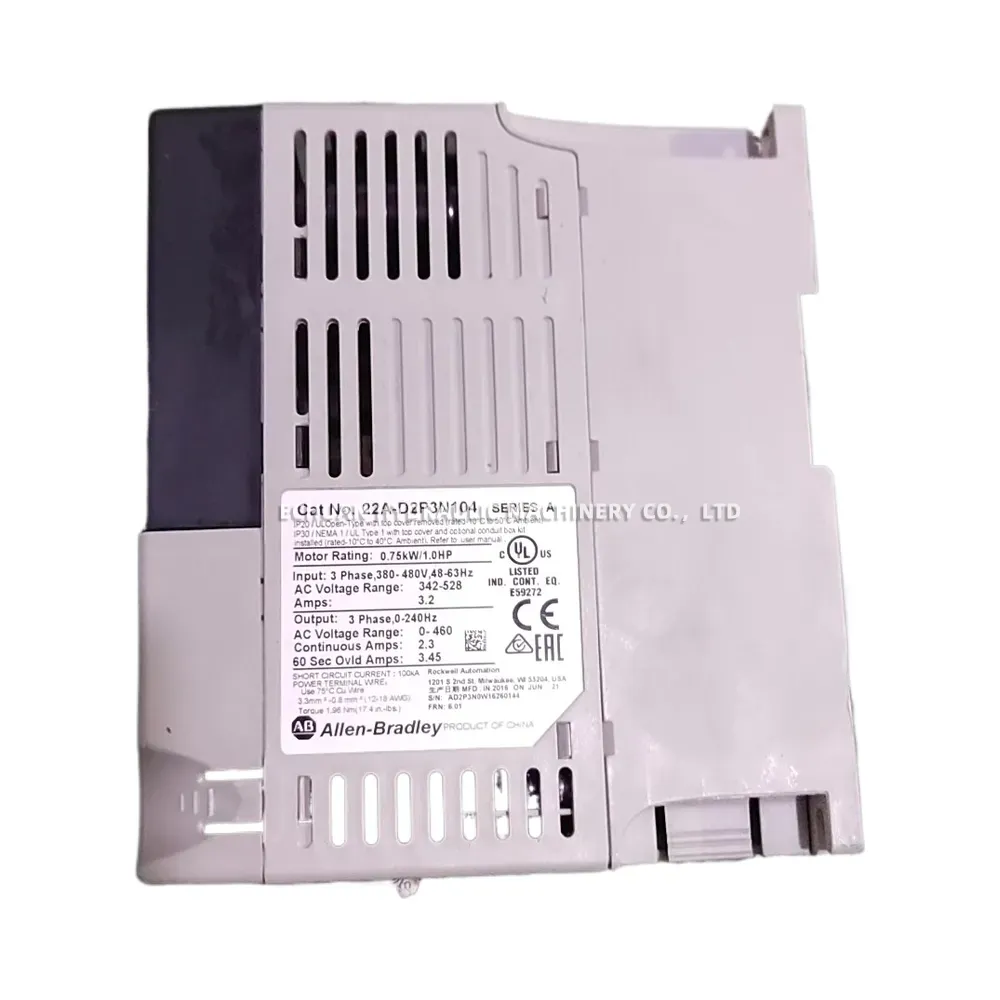

Technical Specifications:
- Brand: Allen-Bradley / Rockwell Automation
- Model Number: 22A-D2P3N104
- Product Series: PowerFlex 4 (Series A)
- Motor Rating: 0.75 kW / 1.0 HP
- Input Power: 3 Phase, 380-480V AC (Range: 342-528V), 48-63Hz, 3.2 Amps
- Output Power: 3 Phase, 0-460V AC, 0-240Hz
- Output Current: 2.3 A Continuous / 3.45 A (60 Sec Overload)
- Short Circuit Current Rating: 100kA
- Enclosure Rating: IP20 / UL Open-Type (-10°C to 50°C Ambient)
- Wiring Specifications: 75°C Cu Wire, 3.3mm² – 0.8 mm² (12-18 AWG), Torque 1.96 Nm (17.4 in.-lbs.)
Allen-Bradley 22A-D2P3N104 AC Drive / Variable Frequency Drive
Optimize your industrial motor control with the Allen-Bradley 22A-D2P3N104 PowerFlex 4 AC Drive. This compact 3-phase, 380-480V VFD delivers 0.75kW (1.0HP) of reliable power and precise speed control, making it the perfect solution for space-saving panel integration and efficient automation.
| Brand | Allen-Bradley |
|---|---|
| Model | 22A-D2P3N104 |
| Part No. | 754424339080 |
| Category | Electrical |
