Product Description

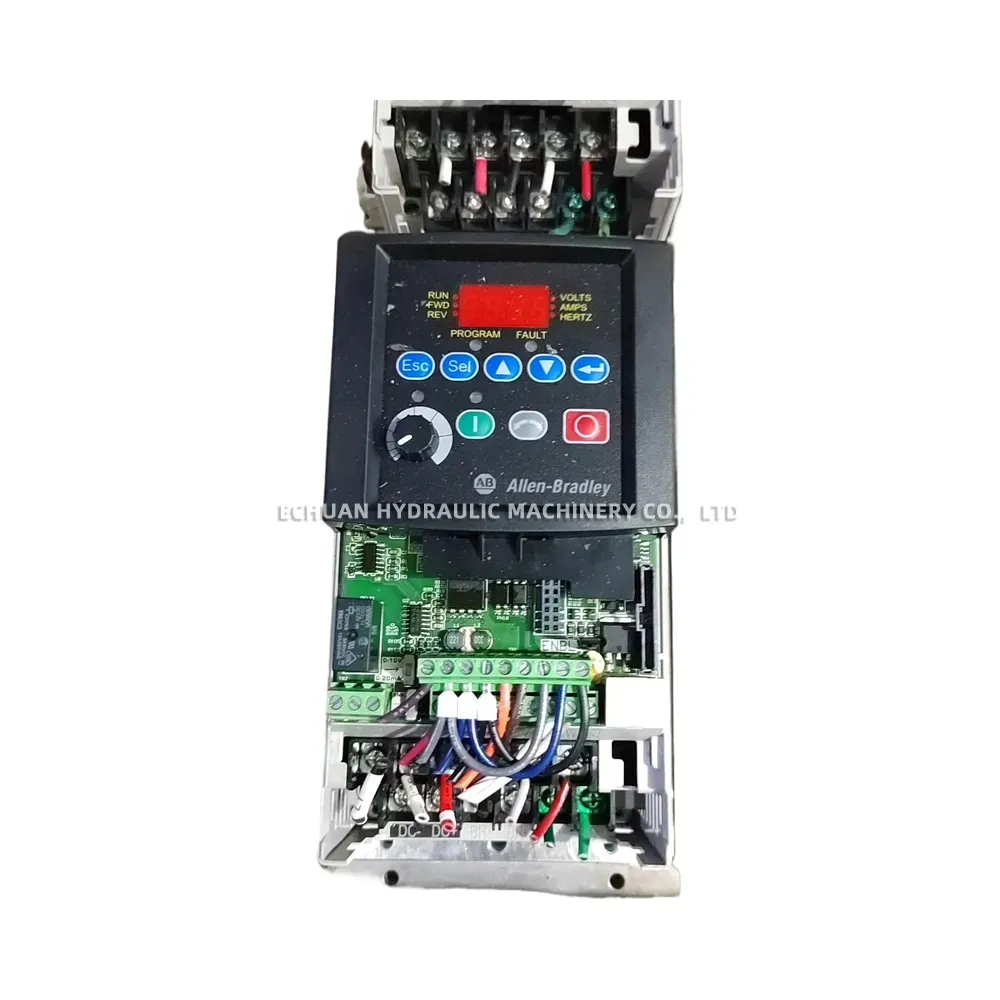

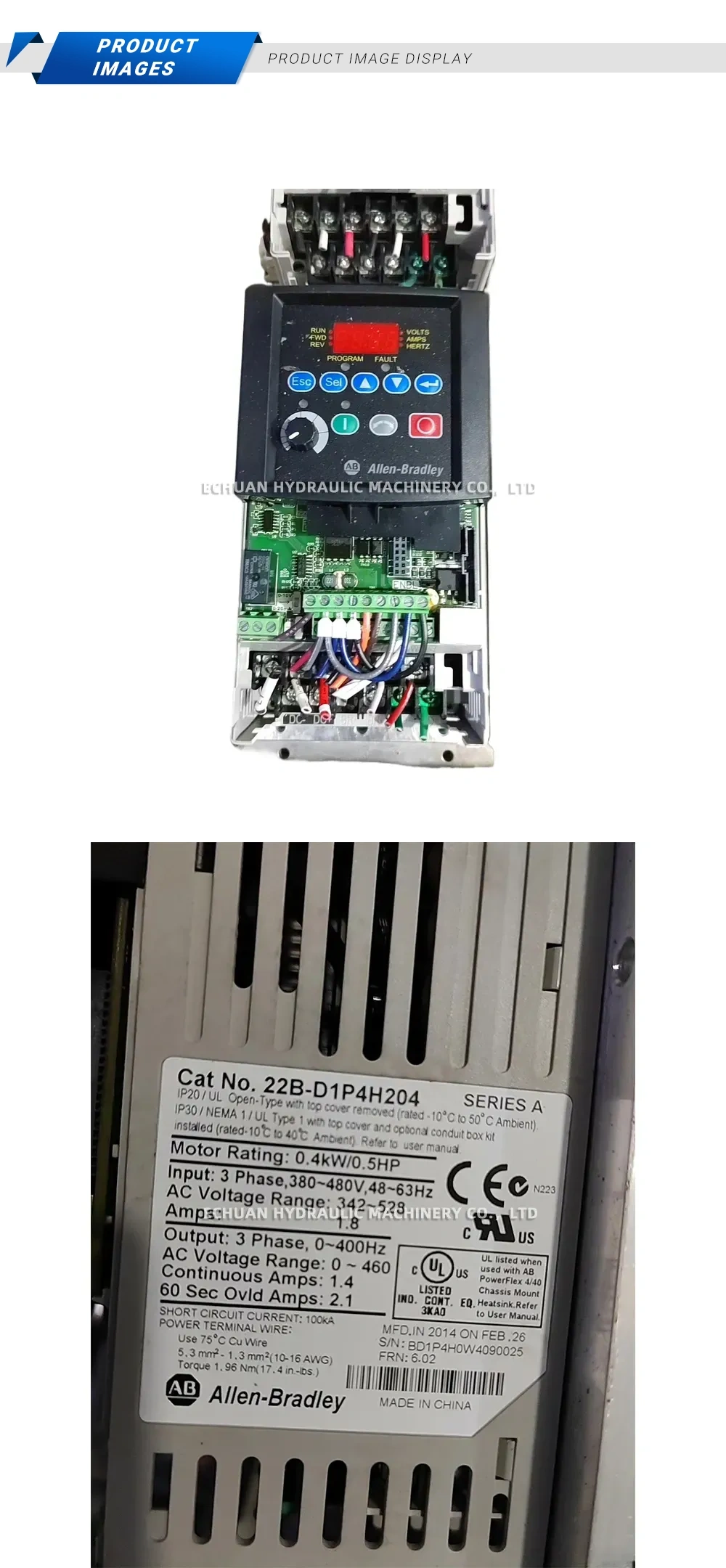

Allen-Bradley 22B-D1P4H204 AC Drive
The Allen-Bradley 22B-D1P4H204 is a robust and highly efficient PowerFlex 40 AC Drive designed for precise motor control in industrial applications. This Series A variable frequency drive features a motor rating of 0.4 kW (0.5 HP) and operates on a 3-Phase, 380-480V AC input. Engineered for versatility, it provides a continuous output current of 1.4 Amps and supports a 60-second overload of up to 2.1 Amps. With its compact footprint and flexible enclosure ratings (IP20 Open-Type standard, or IP30/NEMA 1 with an optional conduit box kit), the 22B-D1P4H204 ensures reliable performance, seamless integration, and advanced speed control for your automated systems.

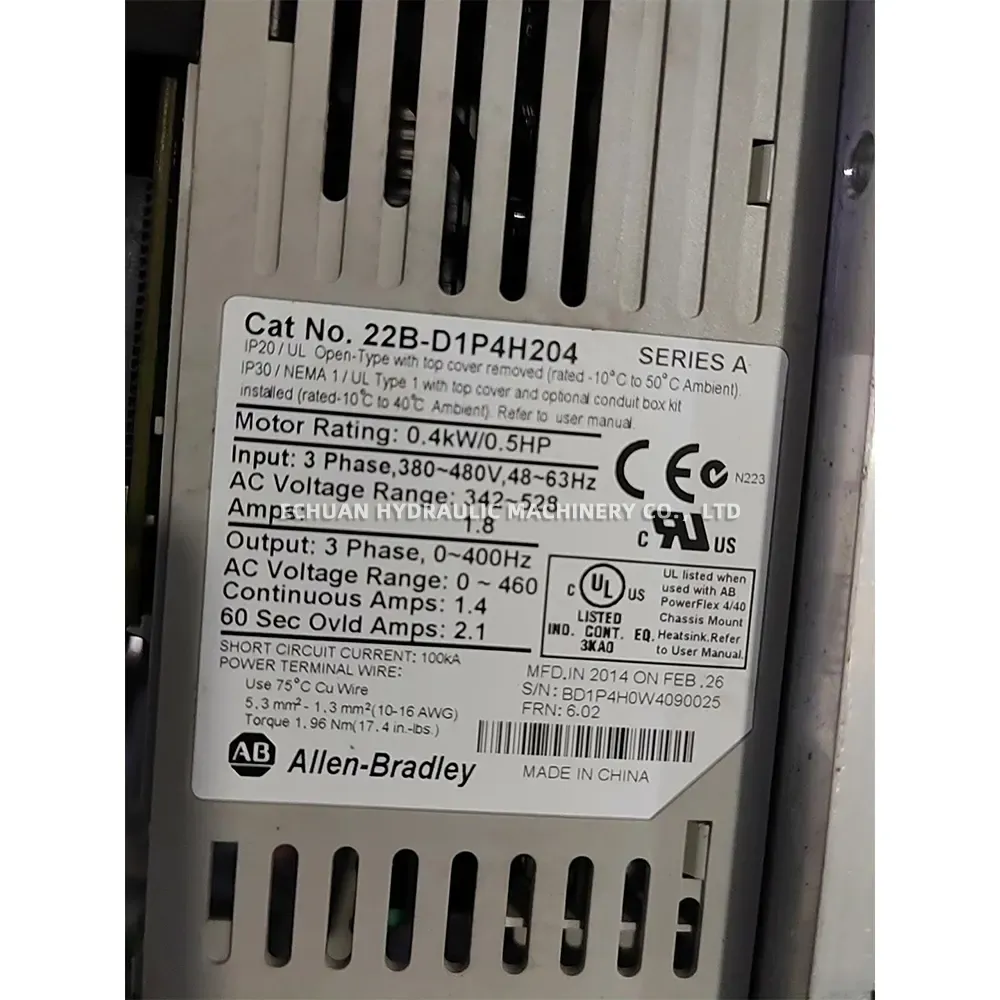

Technical Specifications:
- Brand: Allen-Bradley
- Model Number: 22B-D1P4H204 (Series A)
- Product Family: PowerFlex 40
- Motor Rating: 0.4 kW / 0.5 HP
- Input Specifications: 3 Phase, 380~480V AC, 48~63Hz, 1.8 Amps
- Output Specifications: 3 Phase, 0~460V AC, 0~400Hz
- Continuous Output Current: 1.4 Amps
- Overload Current (60 Sec): 2.1 Amps
- Short Circuit Current Rating: 100kA
- Enclosure Rating: IP20 / UL Open-Type (IP30 / NEMA 1 with optional kit)
- Power Terminal Wiring: 5.3 mm² – 1.3 mm² (10-16 AWG), Use 75°C Cu Wire
Allen-Bradley 22B-D1P4H204 AC Drive
Optimize your industrial motor control with the Allen-Bradley 22B-D1P4H204 PowerFlex 40 AC Drive. This compact, 3-Phase, 380-480V variable frequency drive delivers 0.4kW/0.5HP and 1.4A continuous output for reliable and efficient automation performance.
| Brand | Allen-Bradley |
|---|---|
| Model | 22B-D1P4H204 |
| Part No. | 755441105245 |
| Category | Electrical |
