Product Description

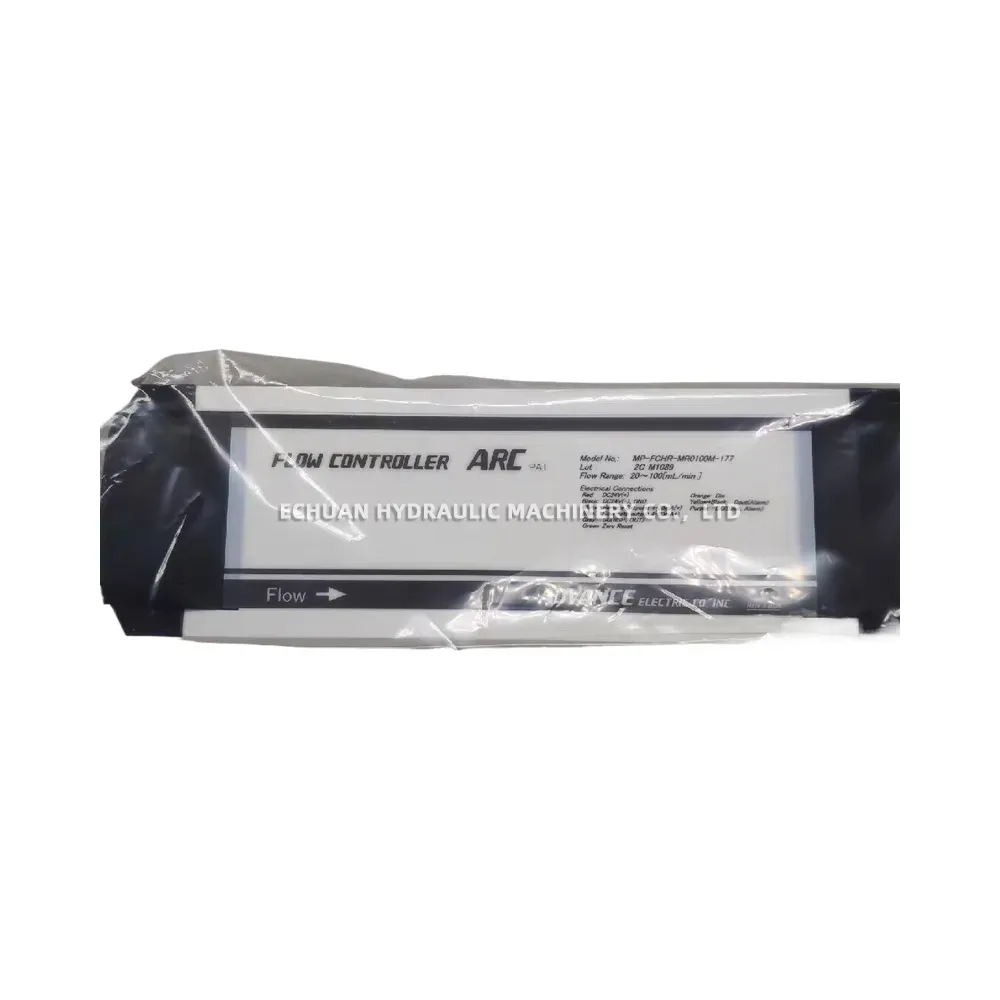

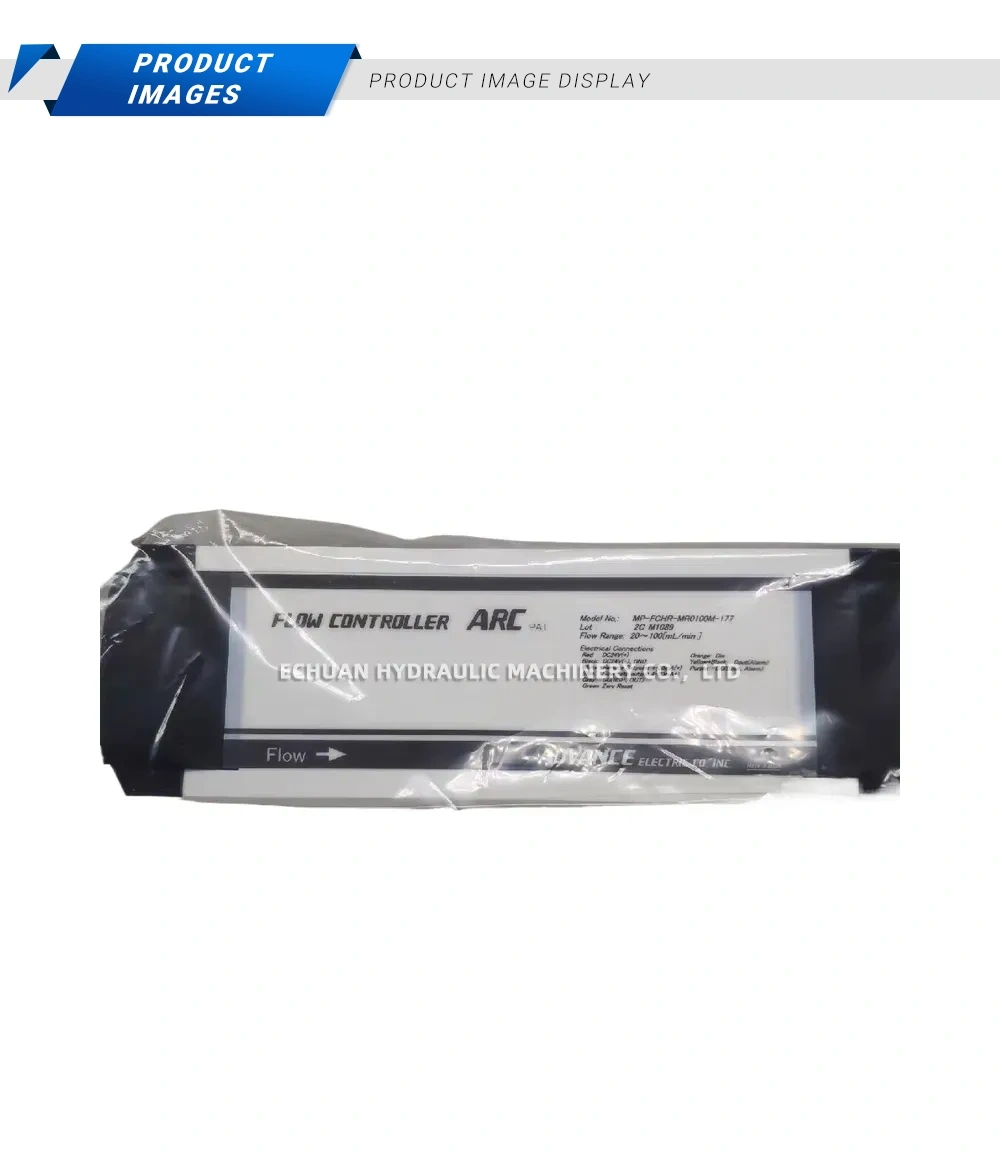

ARC MF-FCHR-MR0100M-177 Flow Controller
The ARC MF-FCHR-MR0100M-177 Flow Controller, manufactured by Advance Electric Co. Inc., is a highly reliable and precise instrument designed for industrial fluid and gas control applications. Operating on a standard DC24V power supply, this unit provides accurate flow regulation within a designated range of 20 to 100 mL/min. It features comprehensive electrical integration capabilities, including remote setpoint adjustments (0-5Vdc/4-20mA), cascade outputs, slope adjustment, and zero adjust functions. Engineered for seamless system integration, it ensures optimal process control and monitoring with built-in alarm and ground safety connections.
Technical Specifications:
- Brand: ARC (Advance Electric Co. Inc.)
- Model: MF-FCHR-MR0100M-177
- Flow Range: 20~100 mL/min
- Power Supply: DC24V+ (Red wire) / GND (Black wire)
- Remote Setpoint: 0-5Vdc / 4-20mA (White wire)
- Cascade Output: 4-20mA / 0-5Vdc (Blue wire)
- Control Features: SLOPE OUT (Gray wire), Zero Adjust (Green wire), Use (Orange wire)
- Safety & Alarms: Ground (Yellow/Green wire), DGD Gas/Alarm (Purple wire)
ARC MF-FCHR-MR0100M-177 Flow Controller
Optimize your industrial fluid systems with the ARC MF-FCHR-MR0100M-177 Flow Controller. Manufactured by Advance Electric Co. Inc., this 24VDC controller offers a precise 20-100 mL/min flow range, remote setpoint capabilities (0-5Vdc/4-20mA), and cascade outputs for reliable, accurate process control.
| Brand | ARC |
|---|---|
| Model | MF-FCHR-MR0100M-177 |
| Part No. | 900621197851 |
| Category | Electrical |
