Product Description
ASCO NUMATICS YA2BB4524G00061

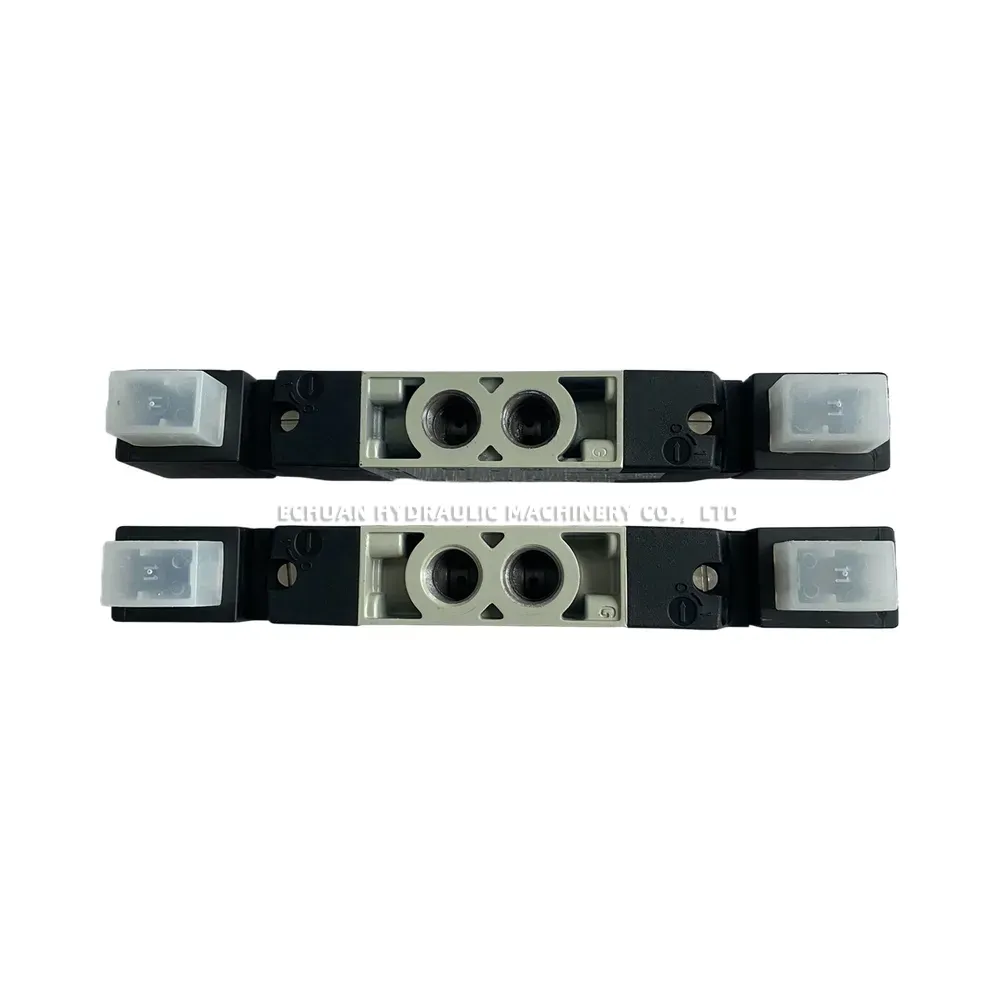

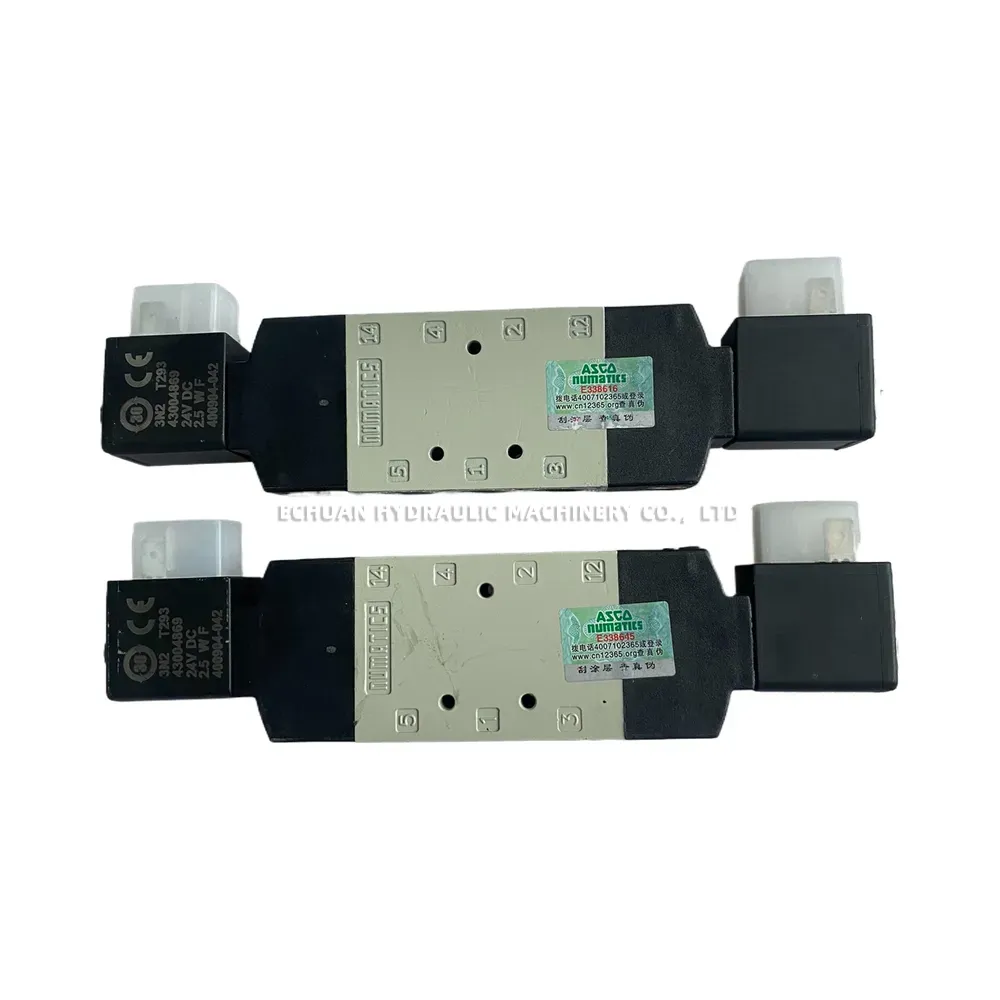

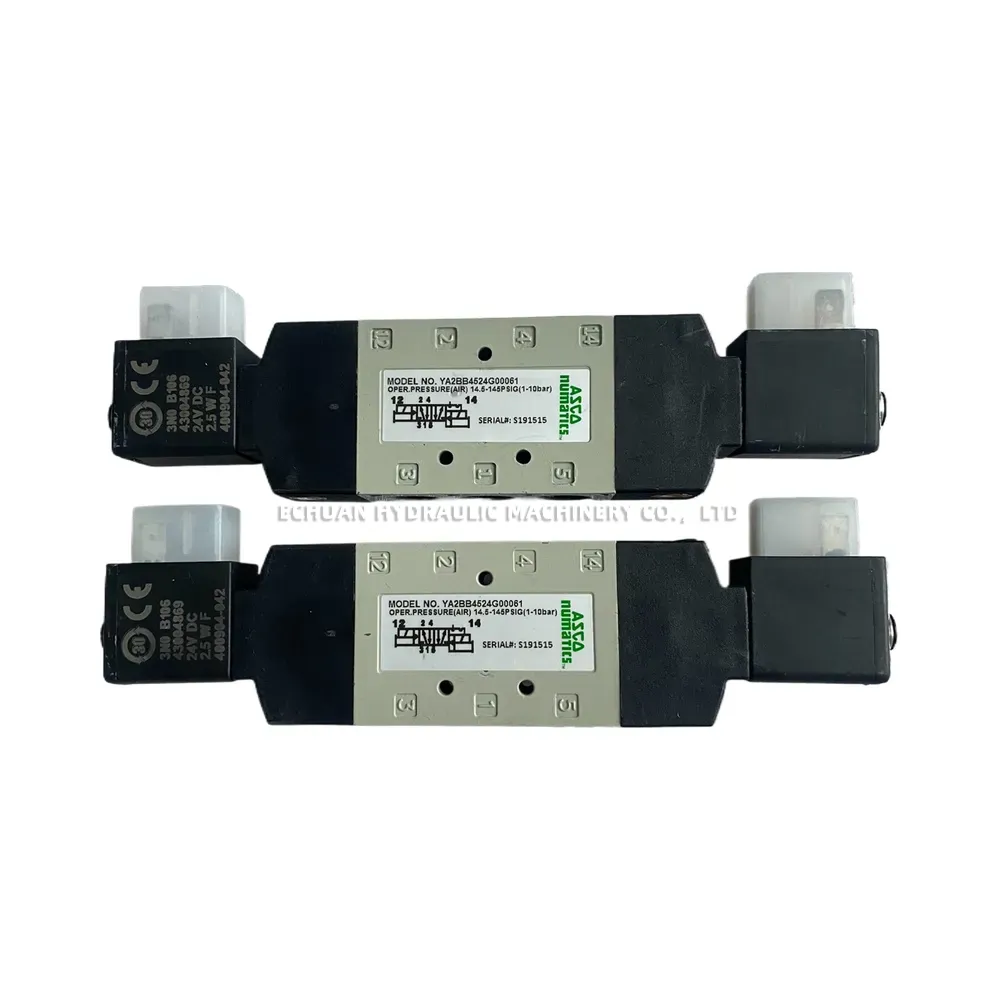

The ASCO Numatics YA2BB4524G00061 is a 5/2 single solenoid air pilot actuated spool valve from the 501 Series. Designed for reliable pneumatic control, this valve directs airflow to control actuators like cylinders. It features a compact design suitable for various industrial automation applications, offering efficient operation with its low-wattage solenoid coil. This specific model operates on 24V DC and utilizes G1/8 port connections.
Technical Specifications:
- Valve Function: 5/2 Single Solenoid, Air Pilot Actuated
- Series: ASCO Numatics 501
- Port Size: G1/8
- Voltage: 24V DC
- Operating Pressure: 1.5 to 10 bar (21.7 to 145 psi)
- Flow Coefficient (Cv): Approx. 0.55
- Flow Rate (ANR): Approx. 550 l/min
- Body Material: Anodized Aluminum
- Seal Material: Nitrile (NBR) / Polyurethane (PUR)
- Electrical Connection: Specific configuration denoted by G00061 (Often DIN or M12)
- Manual Override: Typically included (confirm specific type for G00061)
ASCO NUMATICS YA2BB4524G00061
Model:ASCO NUMATICS YA2BB4524G00061
| Brand | ASCO NUMATICS |
|---|---|
| Model | YA2BB4524G00061 |
| Part No. | ASCO NUMATICS YA2BB4524G00061 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/asco-numatics-ya2bb4524g00061 |
