Product Description

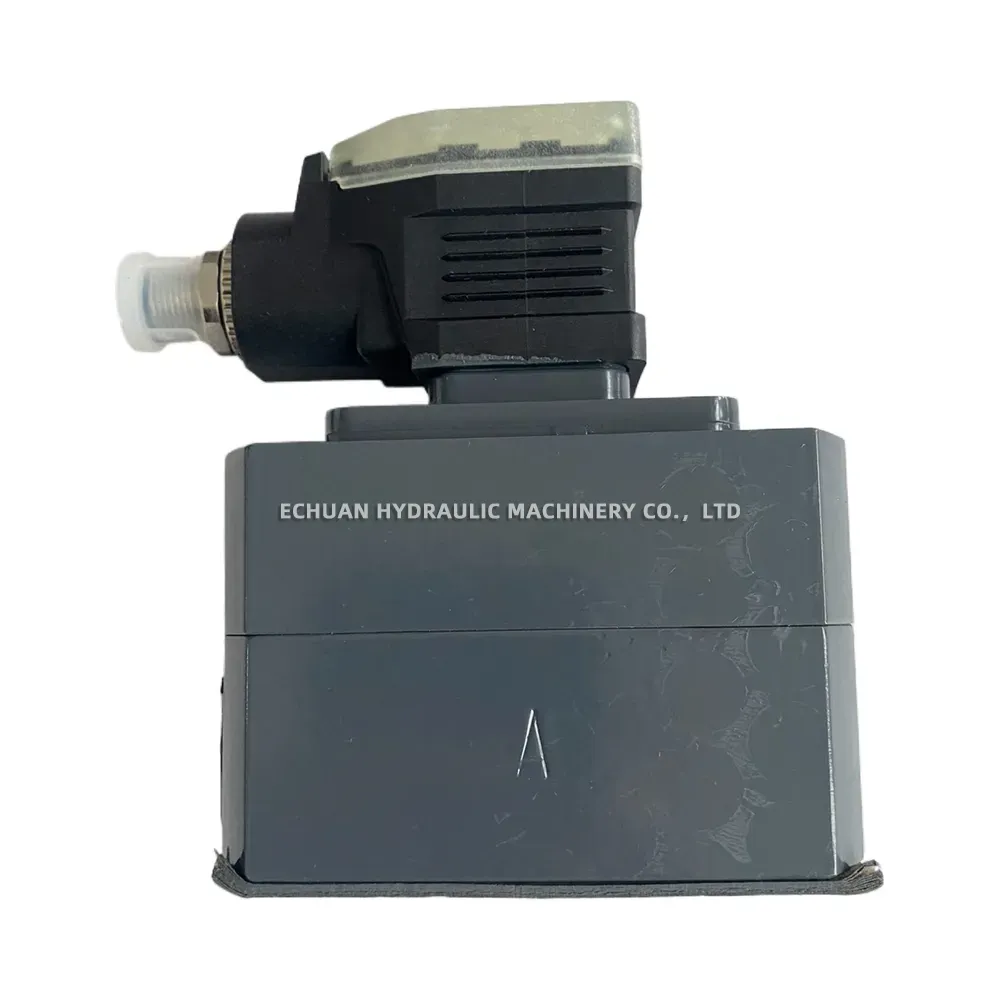

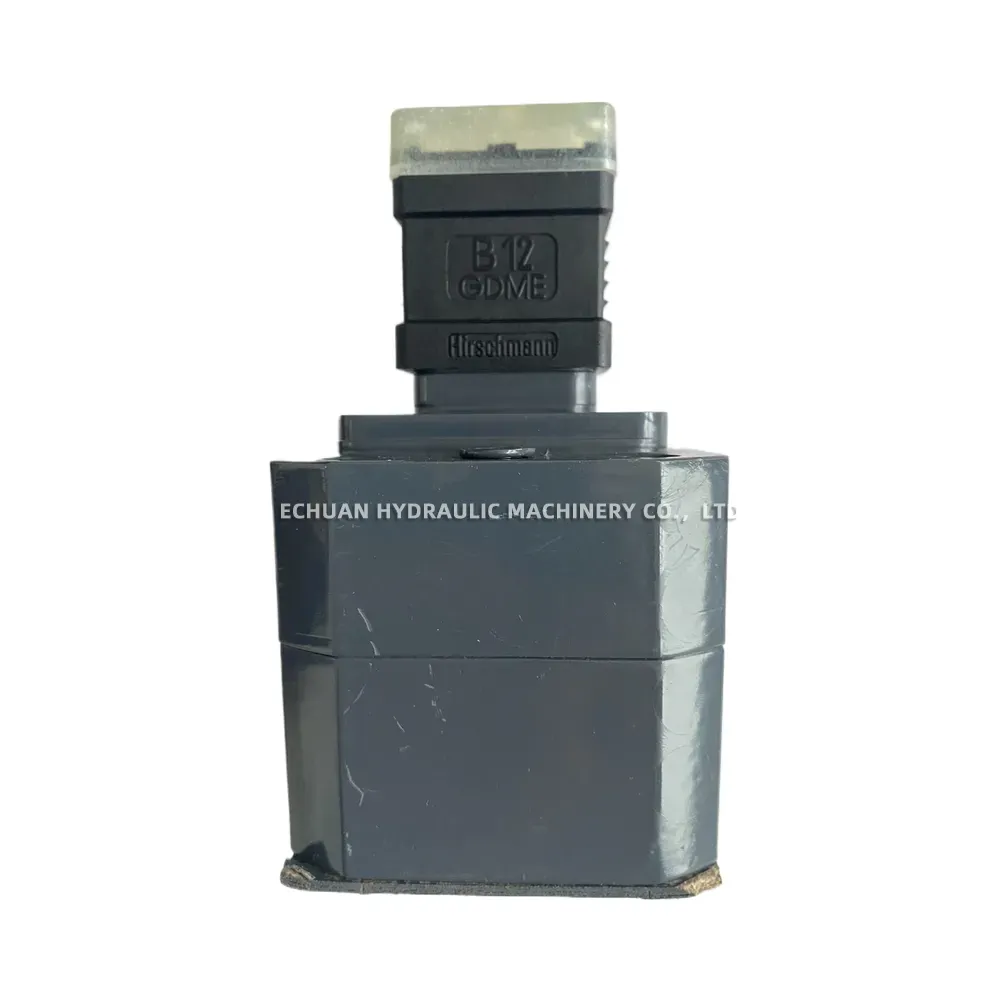

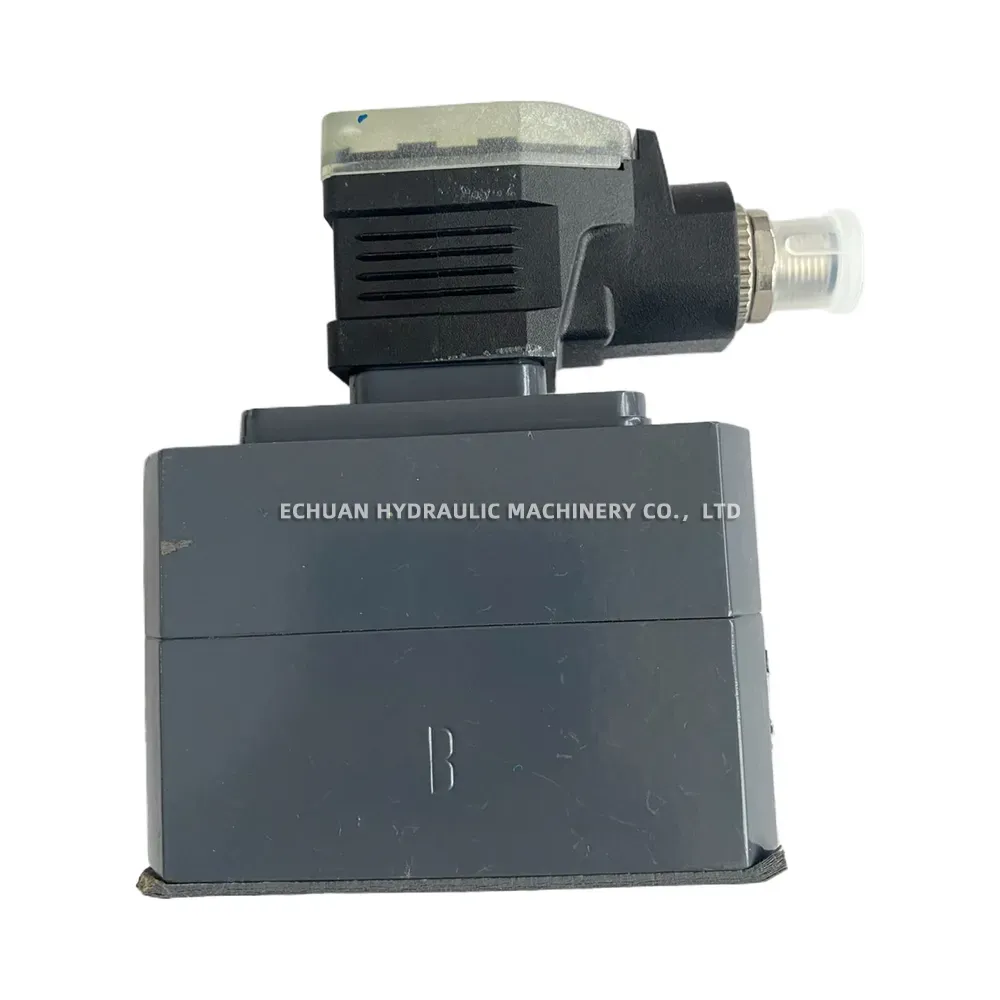

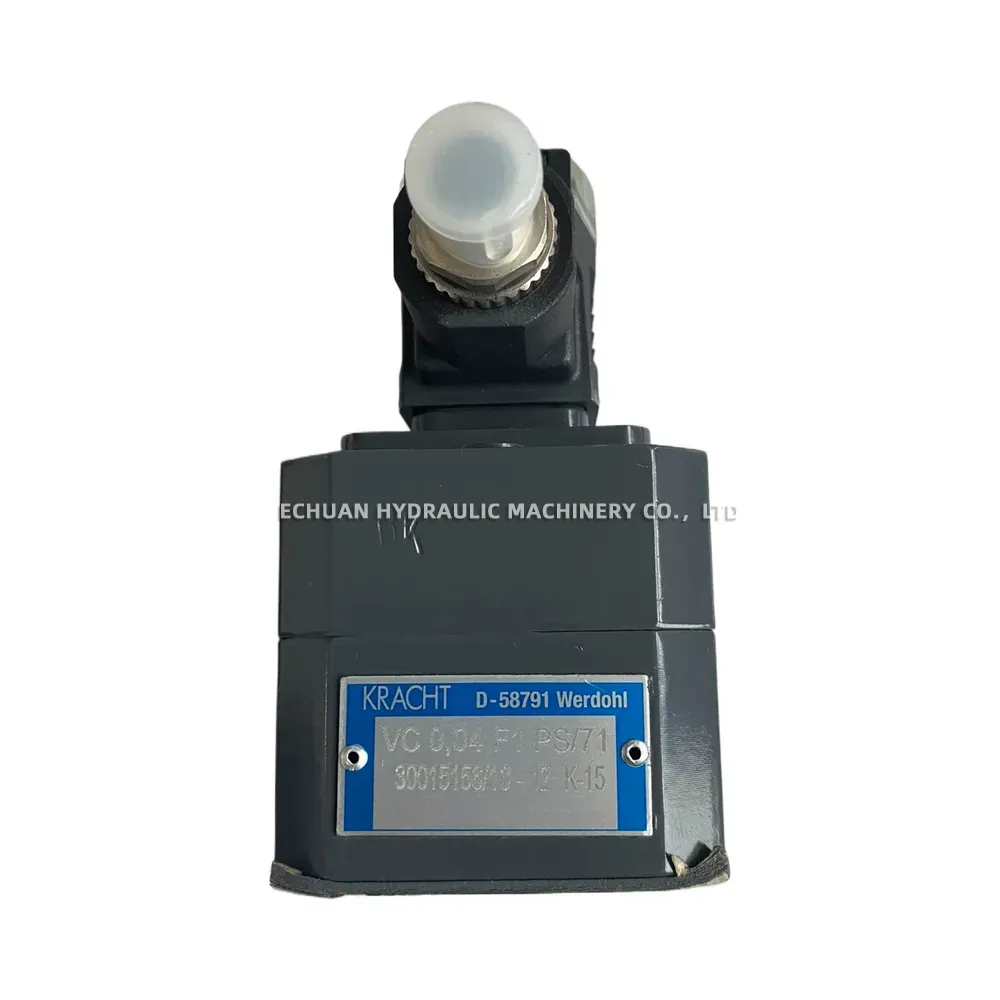

KRACHT VC0.04F1PS/71 Volumetric Flow Meter
The KRACHT VC0.04F1PS/71 is a high-precision gear-type volumetric flow meter designed for accurately measuring the flow rate of various liquids, including oils and other viscous fluids. It operates on the principle of positive displacement, where rotating gears trap and transfer known volumes of fluid, providing highly accurate measurements independent of viscosity fluctuations within its operating range. This model features a robust cast iron body and FKM seals, making it suitable for demanding industrial environments. The integrated /71 inductive pulse generator provides a reliable square wave output signal proportional to the flow rate.

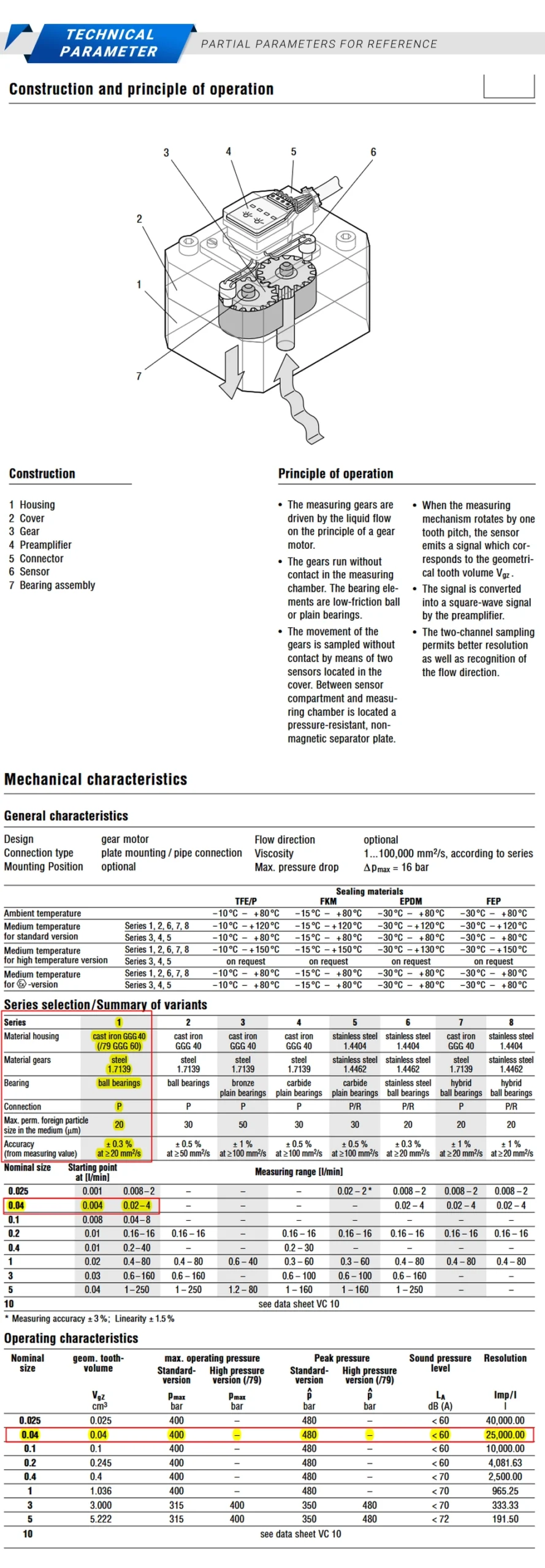

Technical Specifications:
- Model Series: VC Volumeter
- Size (Nominal Displacement): 0.04 cm³/rev
- Measuring Range (approx.): 0.008 – 0.8 l/min
- Body Material (F1): Grey Cast Iron (EN-GJL-250)
- Gear Material: Steel (1.7139)
- Bearing Type (P): Multi-layer plain bearing, lead-free
- Seal Material (S): FKM (Viton)
- Maximum Operating Pressure: Up to 400 bar (5800 psi) – dependent on specific configuration/application
- Fluid Temperature Range (with FKM seals): -10 °C to +120 °C (+14 °F to +248 °F)
- Viscosity Range: 1 to 1,000,000 mm²/s (cSt)

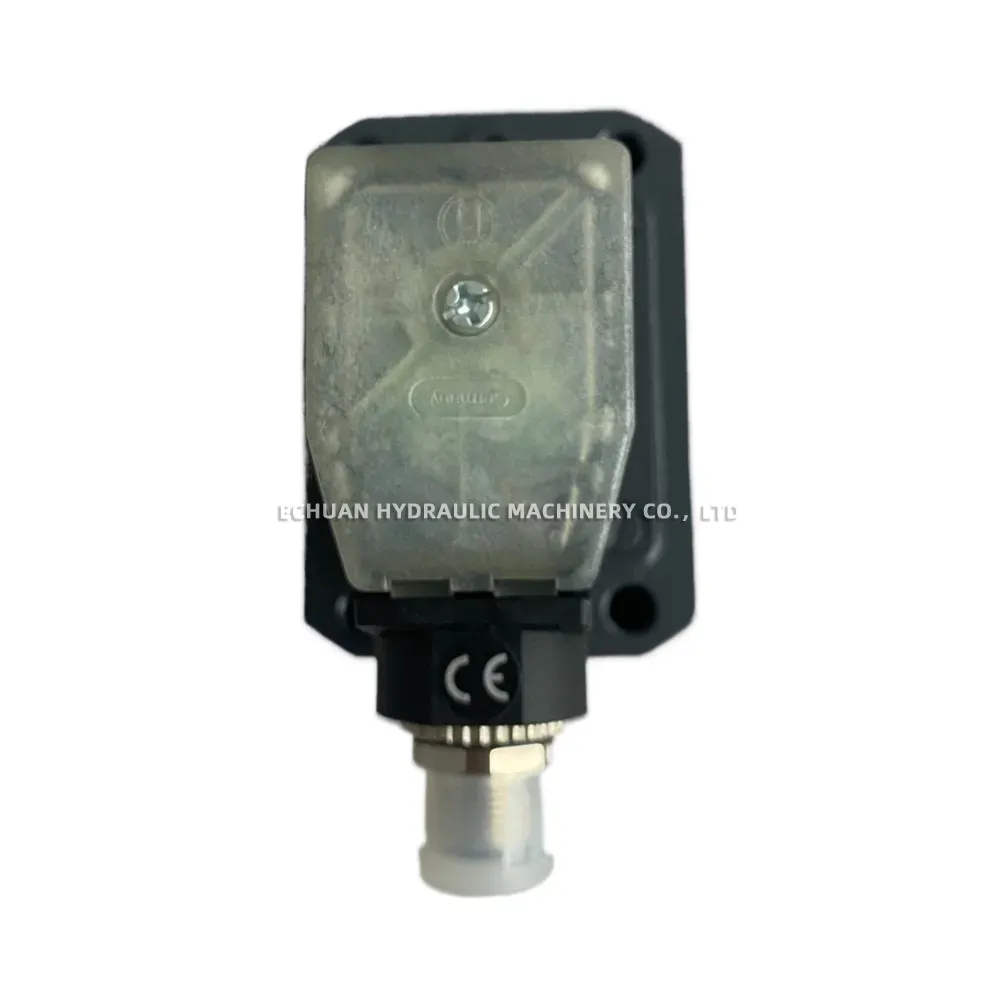

- Pulse Generator (/71): Inductive Sensor (NJ2-V3-N, standard)
- Output Signal: Square wave pulse
- Process Connection: G 1/4″ (BSPP female thread)
- Accuracy: Typically ±0.3% of reading (depending on operating conditions)
- Repeatability: ±0.05%
KRACHT VC0.04F1PS/71
Model:KRACHT VC0.04F1PS/71
| Brand | KRACHT |
|---|---|
| Model | VC0.04F1PS/71 |
| Part No. | KRACHT VC0.04F1PS/71 |
| Category | Other products |
