Product Description
ATOS DHA-0631/2/M 24DC
The ATOS DHA-0631/2/M 24DC is a high-performance, direct-acting, spool-type solenoid directional control valve designed for use in hydraulic systems. This valve provides reliable ON/OFF control for starting, stopping, and directing fluid flow. It conforms to the ISO 4401 standard for mounting surfaces (size 06 / CETOP 3), ensuring easy integration and interchangeability. The robust construction guarantees a long service life even in demanding industrial applications. Equipped with 24V DC solenoids for efficient electrical actuation and a manual override pin (M) for emergency or setup operations, this valve offers both precision and versatility for hydraulic circuit control.
Technical Specifications:
- Valve Type: 4/3 Way, Spool-Type, Solenoid Operated Directional Valve
- Mounting Standard: ISO 4401 Size 06 (CETOP 3, NG6)
- Max Operating Pressure: 350 bar (5075 PSI)
- Max Flow Rate: 60 l/min (15.8 GPM)
- Solenoid Voltage: 24V DC
- Spool Configuration: Closed Center (Code 1)
- Operator: Manual Override Pin (M)

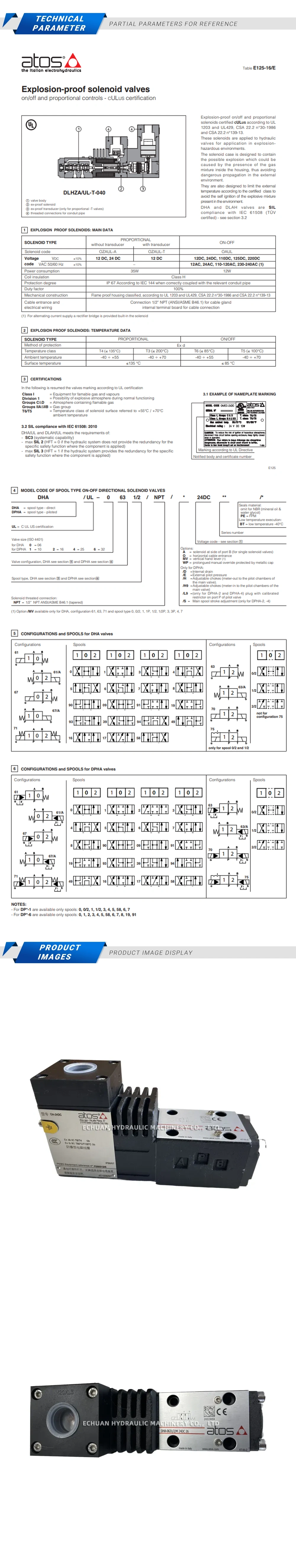

ATOS DHA-0631/2/M 24DC
High-performance ATOS DHA-0631/2/M 24DC solenoid directional control valve. A 4/3 way, closed center, CETOP 3 (NG6) valve with a max pressure of 350 bar and a 24V DC coil. Features a manual override for versatile hydraulic system control.
