Product Description

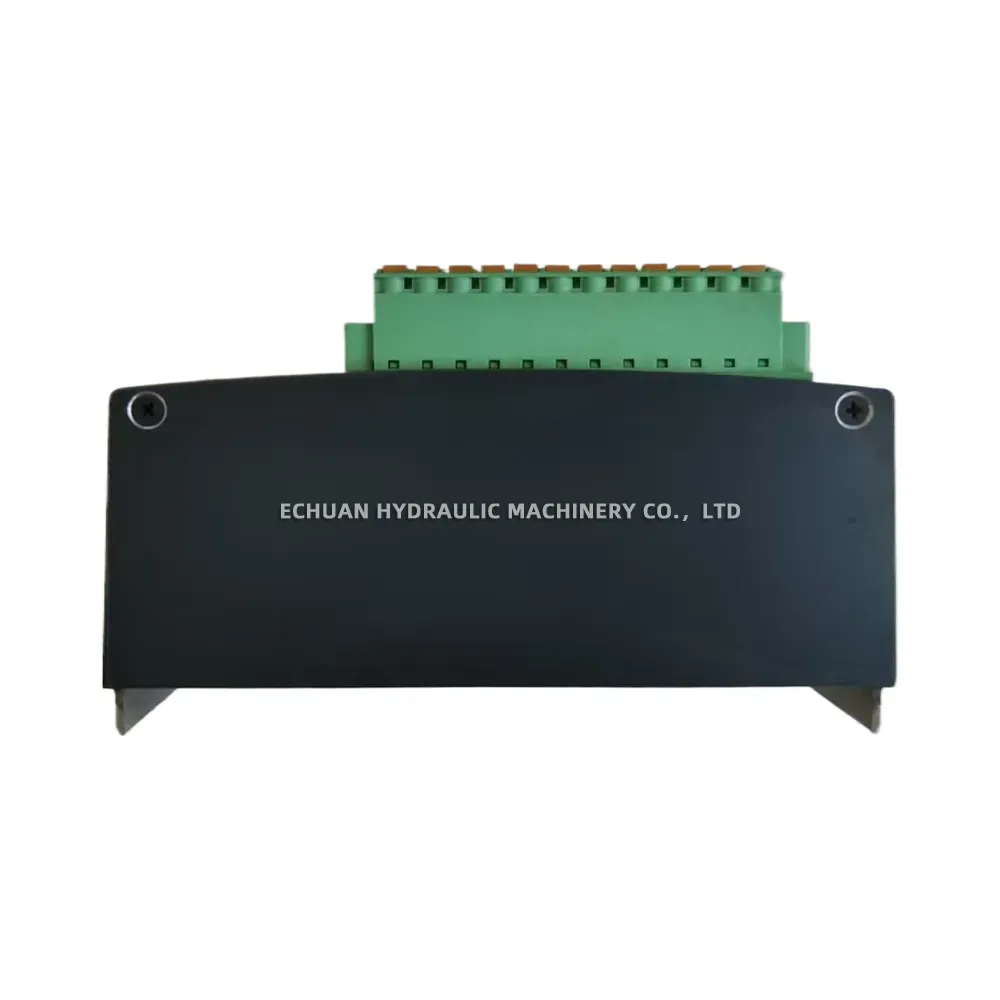

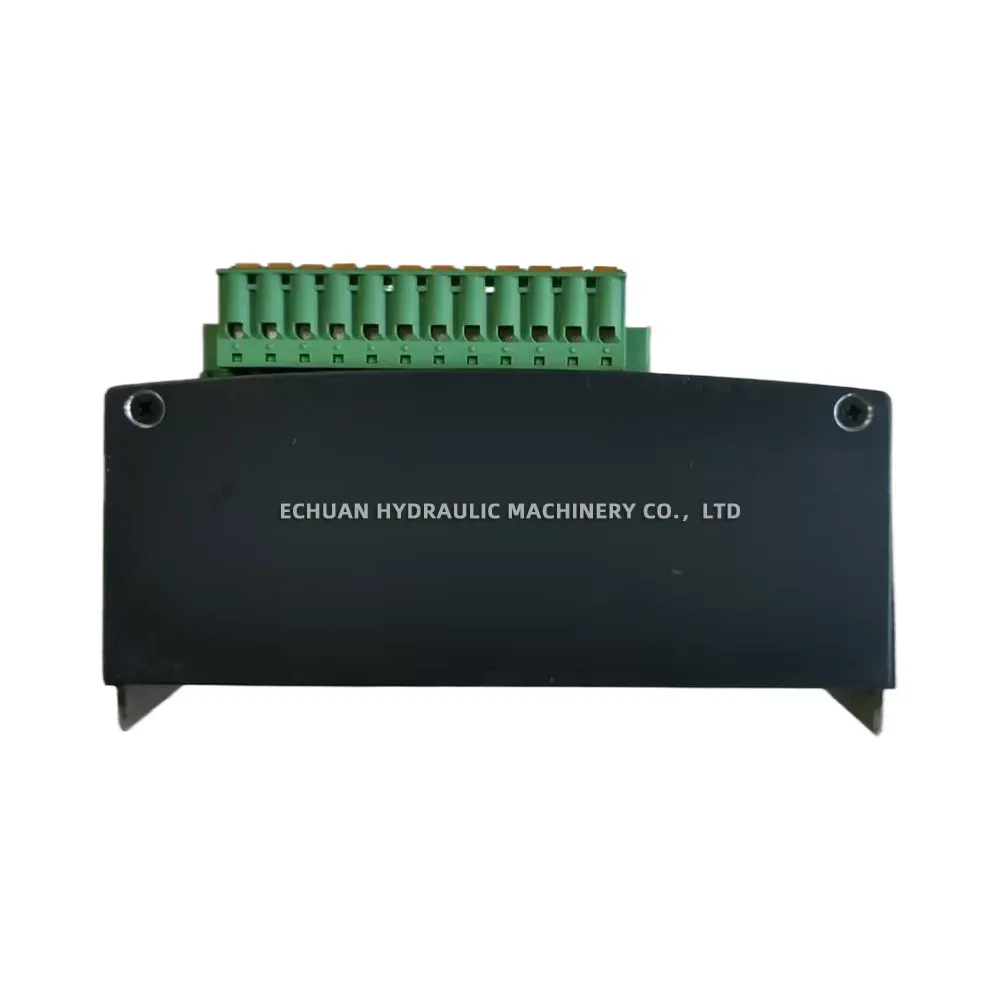

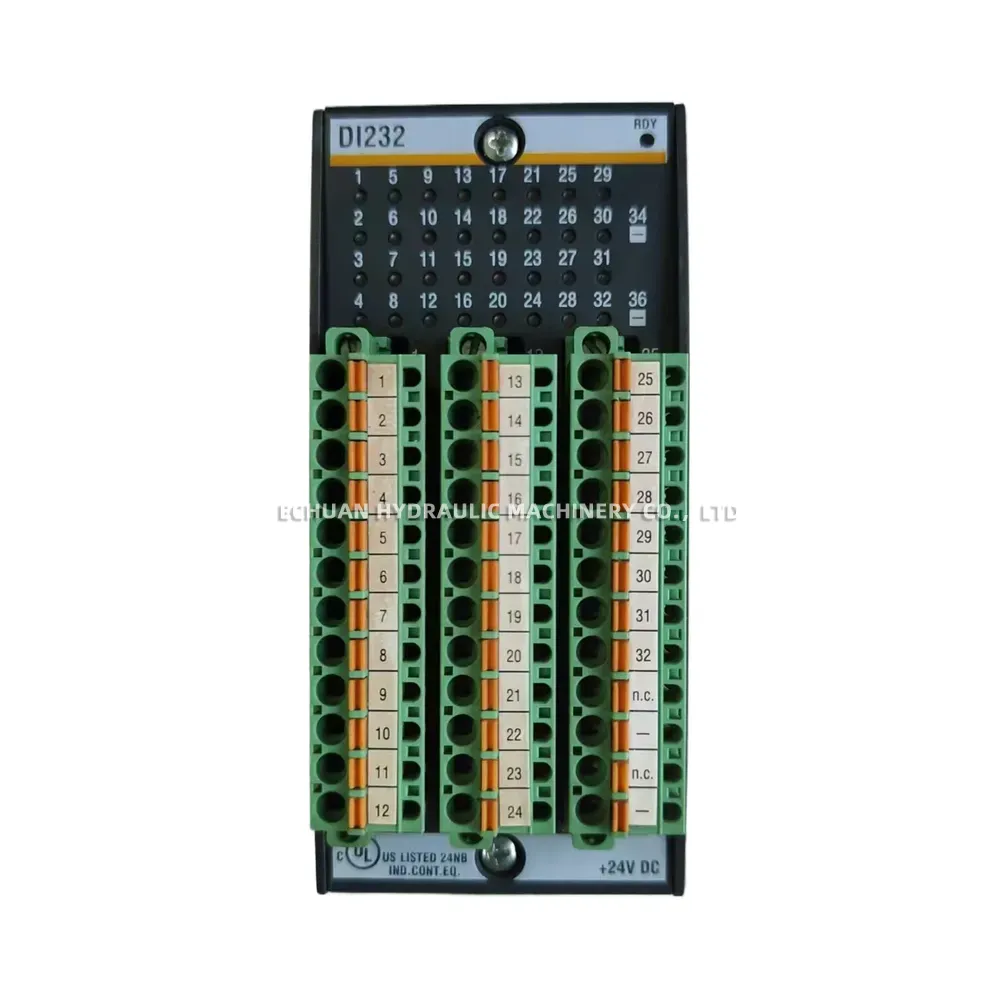

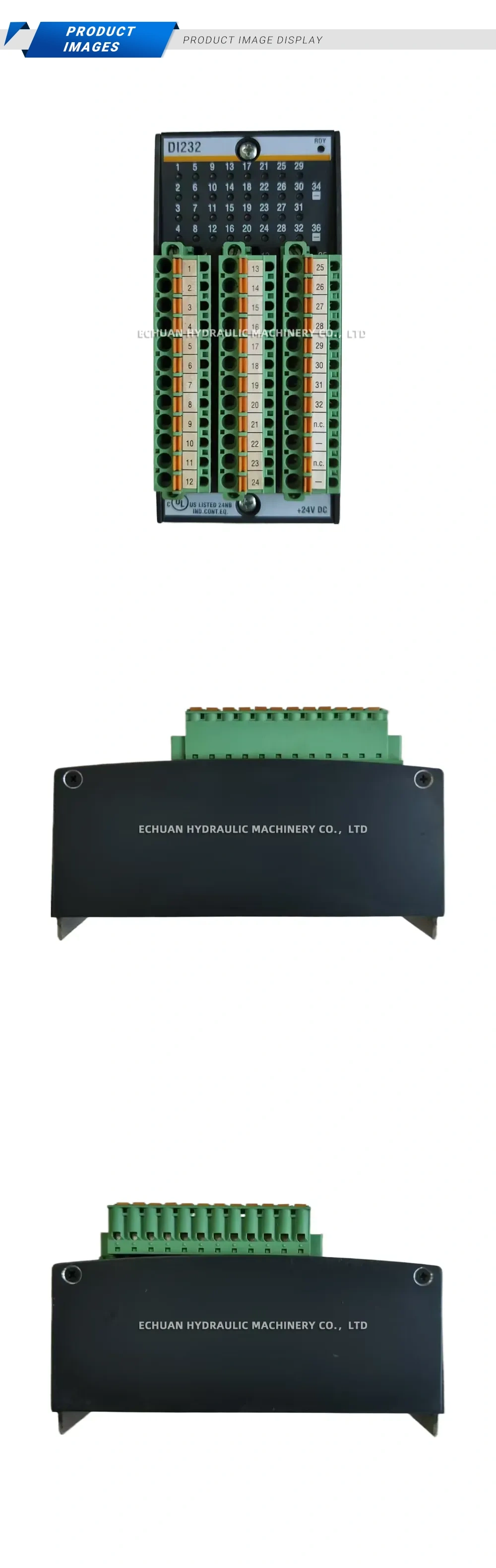

Bachmann DI232 Digital input module
The Bachmann DI232 is a robust digital input module designed for the Bachmann M1 automation system. It provides 16 digital input channels for processing 24V DC signals, making it an ideal solution for a wide range of industrial automation applications. Each channel is equipped with a status LED for clear diagnostics, and the module features electrical isolation between the channels and the system bus, ensuring reliable and safe operation. The DI232 is engineered for high performance and durability in demanding industrial environments, facilitating the acquisition of binary control signals from sensors, switches, and other field devices.
Technical Specifications:
- Number of inputs: 16, in 2 groups of 8
- Input voltage: 24 VDC (18 to 34 VDC)
- Input current: Typ. 3.7 mA at 24 VDC
- Electrical isolation: Channel to system electrically isolated (500 VDC)
- Operating temperature: -30 to +70 °C
Bachmann DI232 Digital input module
The Bachmann DI232 is a 16-channel, 24V DC digital input module for the M1 automation system, offering reliable signal acquisition for industrial PLCs and control applications.
