Product Description

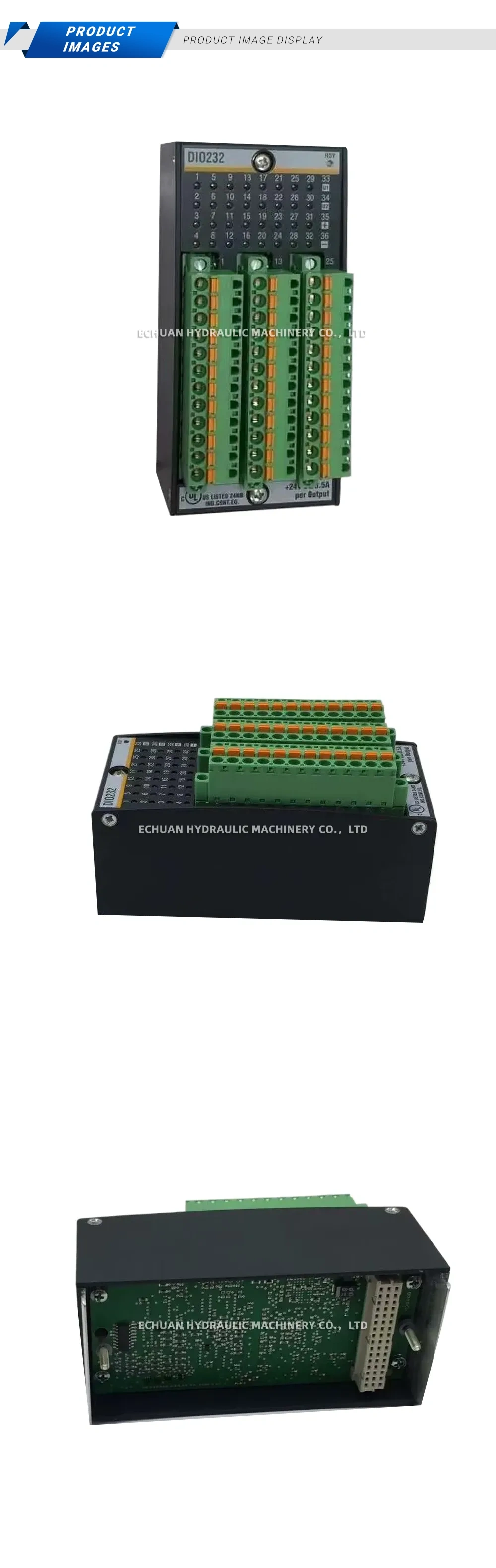

Bachmann DIO232
The Bachmann DIO232 is a versatile and high-density digital input/output module designed for the Bachmann M1 automation system. It offers 32 channels that can be flexibly configured in groups of eight, serving as either inputs or outputs to suit various application needs. Operating at a nominal voltage of 24 VDC, this module is built for reliability in demanding industrial environments. It features robust protection mechanisms, including short-circuit and overload protection for all outputs, ensuring safe and dependable operation. The DIO232 is an efficient and space-saving solution for complex control tasks requiring a large number of digital I/O points.
Technical Specifications:
- Number of Channels: 32, configurable in groups of 8 as inputs or outputs
- Nominal Voltage: 24 VDC
- Output Current: Max. 0.5 A per channel, short-circuit proof
- Input Signal Voltage (Type 3): ‘1’ signal: +11 V to +30 V / ‘0’ signal: -3 V to +5 V
- Protection: Overload, short-circuit, and reverse polarity protection
Bachmann DIO232
High-density Bachmann DIO232 digital I/O module with 32 configurable 24VDC channels. Ideal for versatile and robust industrial automation applications within the Bachmann M1 system.
