Product Description

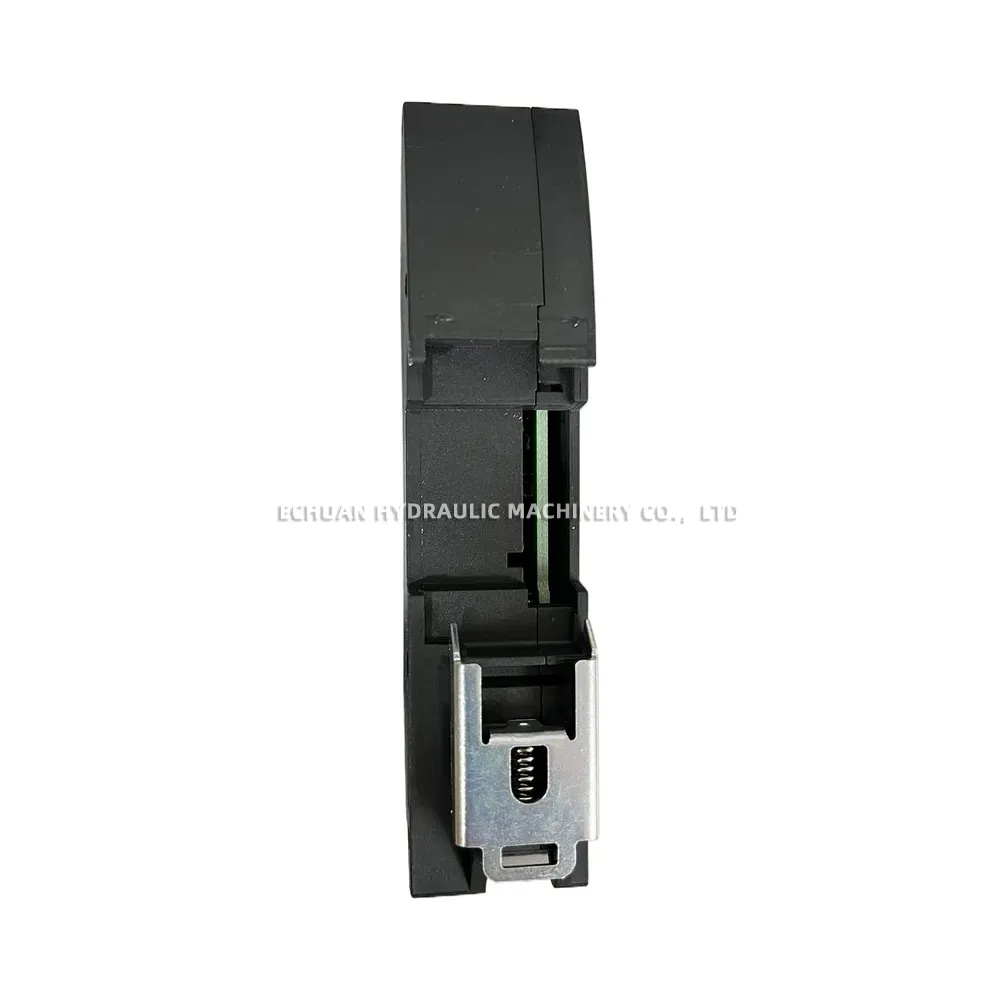

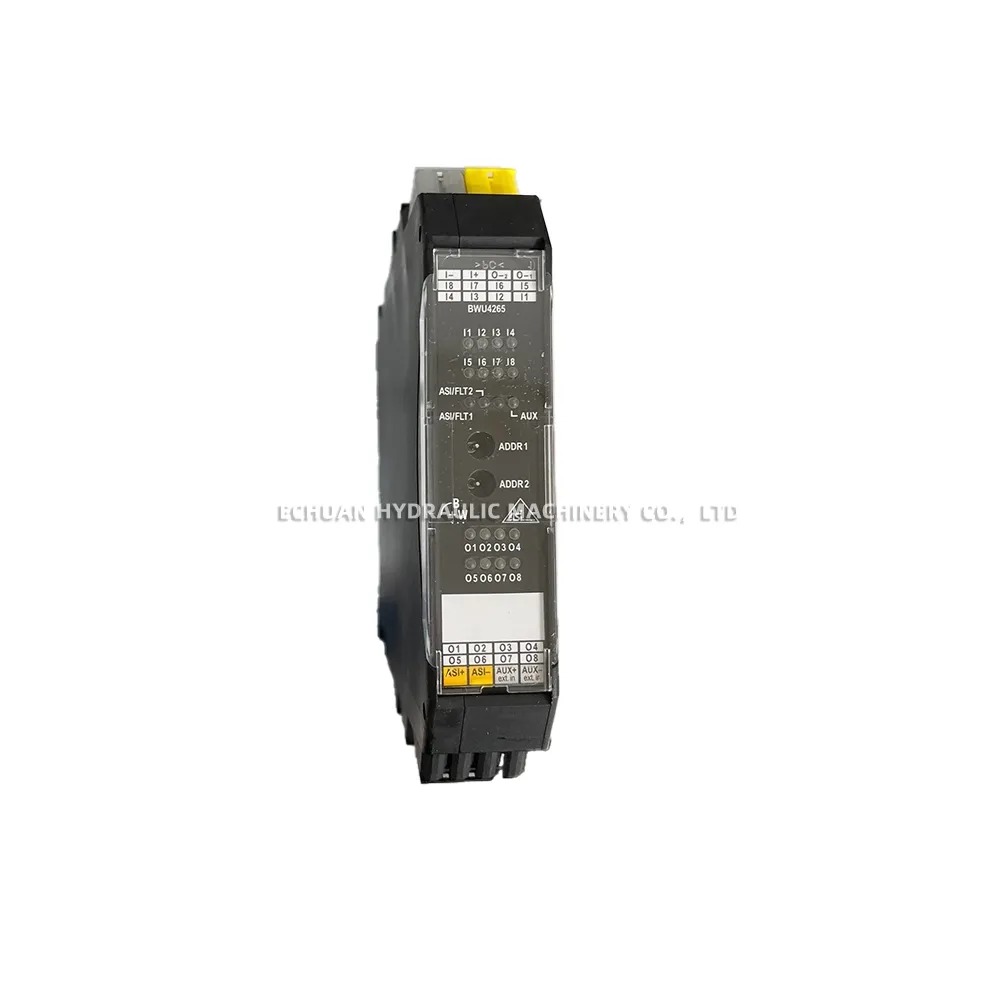

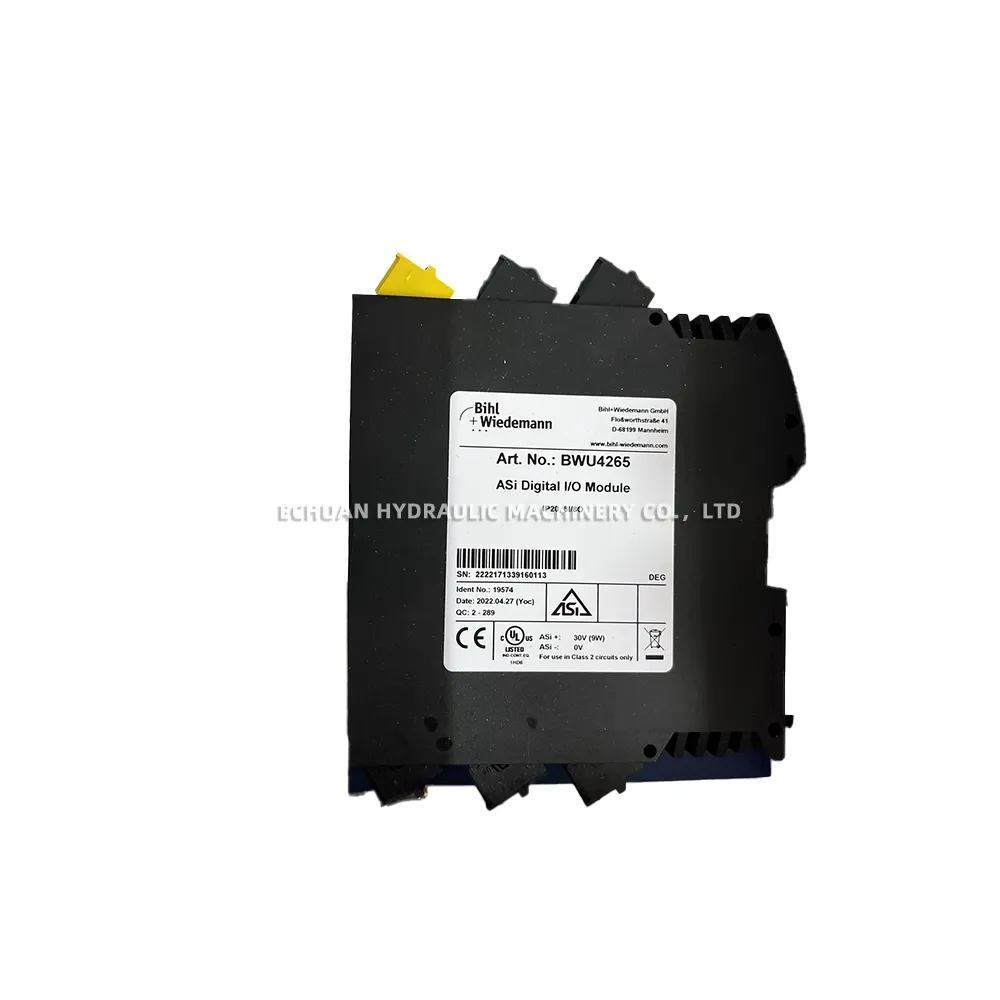

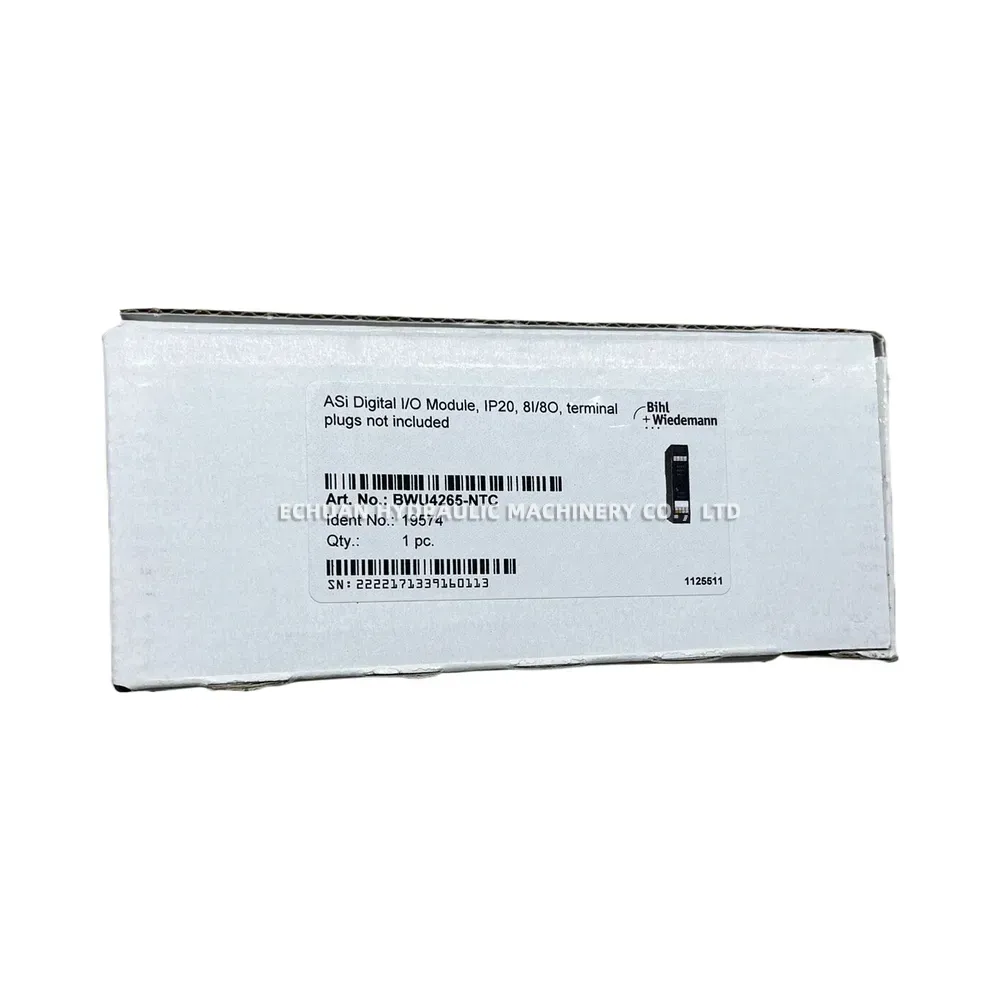

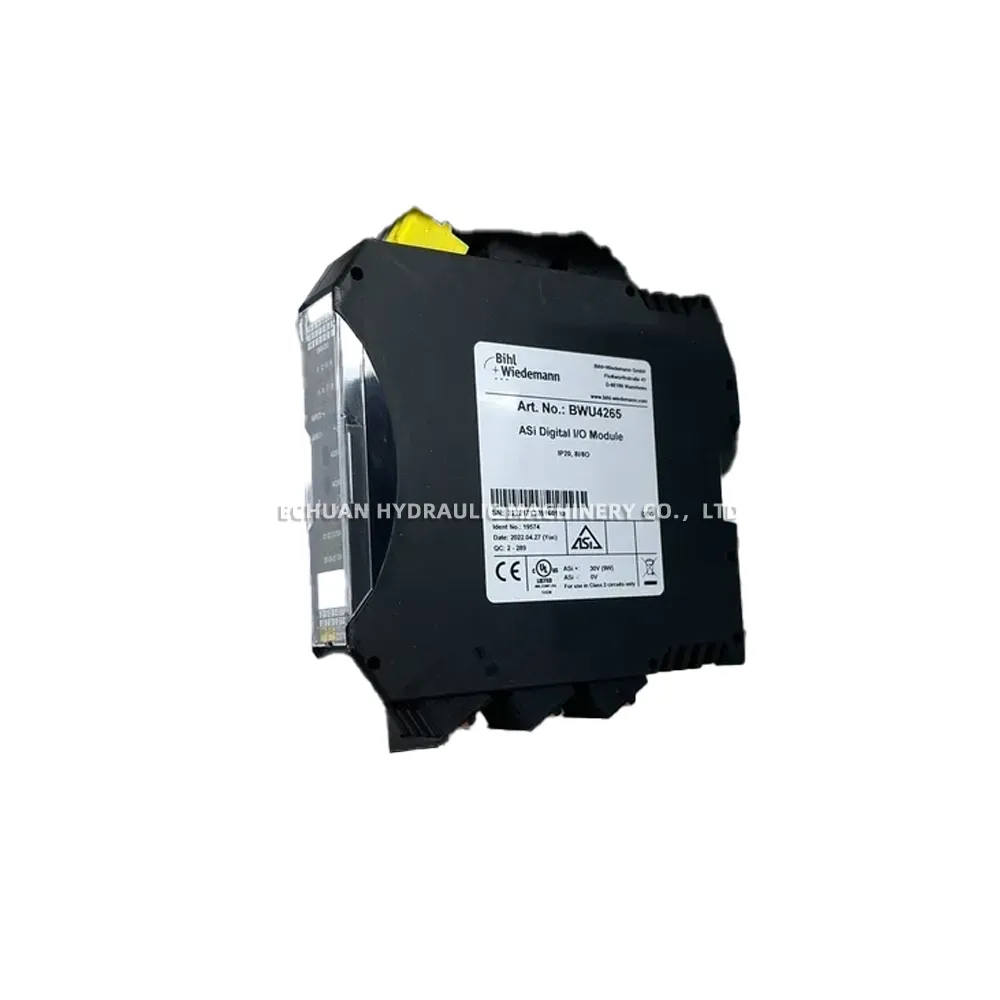

Bihl+Wiedemann BWU4265-NTC
The Bihl+Wiedemann BWU4265-NTC is a high-performance ASi-5/ASi-3 Gateway housed in durable stainless steel. It features an integrated safety monitor and an OPC UA server, making it an ideal solution for modern Industry 4.0 applications. With two independent ASi-5/ASi-3 masters, this gateway can efficiently manage two ASi networks simultaneously. It is designed to seamlessly connect ASi networks to higher-level IT and control systems, facilitating easy data exchange and diagnostics. The integrated safety monitor allows for the monitoring of safety-related components, while the onboard digital inputs and outputs provide additional local control capabilities.
Technical Specifications:
- Model: BWU4265-NTC
- Product Type: ASi-5/ASi-3 Gateway with Safety Monitor and OPC UA
- ASi Interface: 2 x ASi-5/ASi-3 masters, 2 ASi networks
- Fieldbus Interface: OPC UA
- Digital Inputs: 4 x digital inputs
- Digital Outputs: 4 x digital outputs (2 x relay outputs, 2 x electronic outputs)
- Housing Material: Stainless Steel
- Protection Rating: IP20
Bihl+Wiedemann BWU4265-NTC
Bihl+Wiedemann BWU4265-NTC: A robust ASi-5/ASi-3 Gateway with dual masters, integrated safety monitor, and OPC UA server for advanced industrial automation and Industry 4.0 integration.
| Brand | Bihl+Wiedemann |
|---|---|
| Model | BWU4265-NTC |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/bihlwiedemann-bwu4265-ntc |
