Product Description

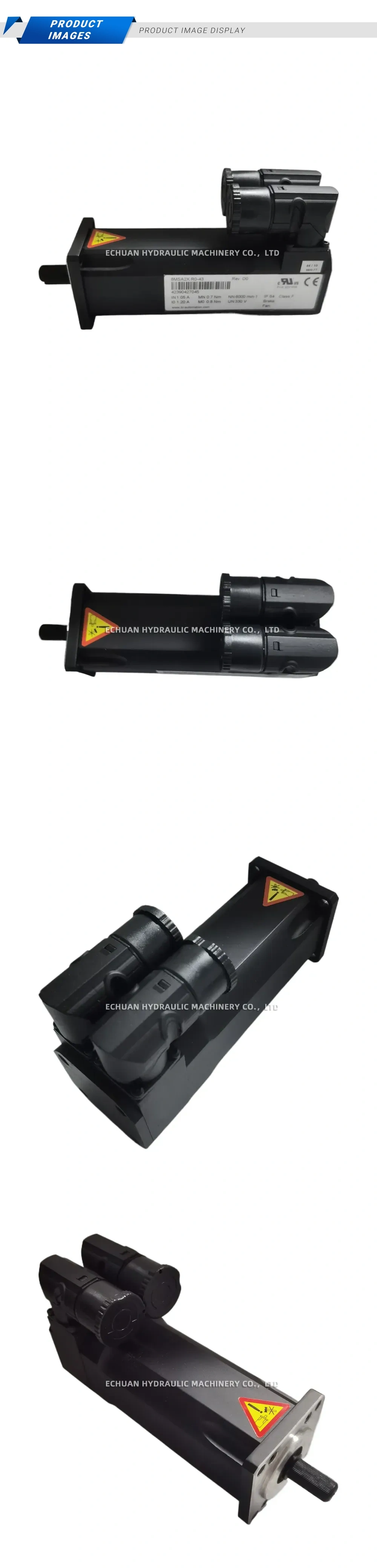

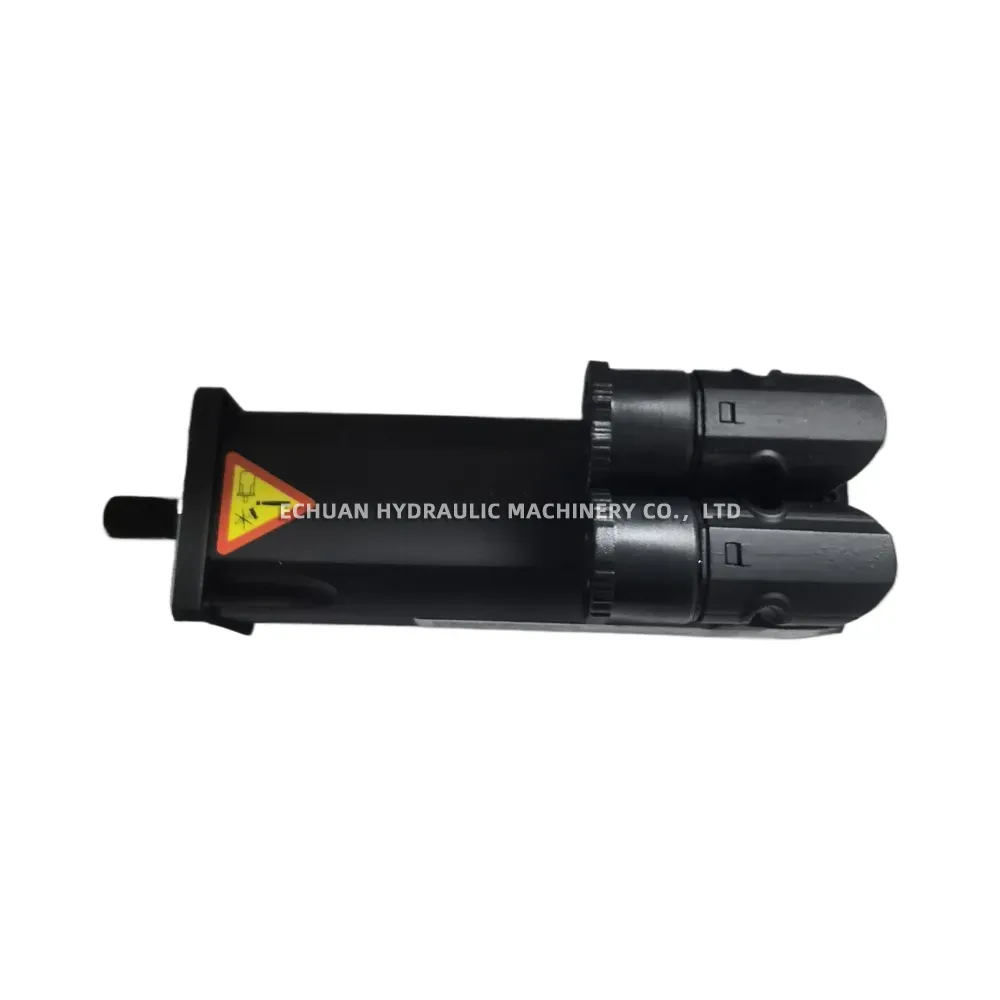

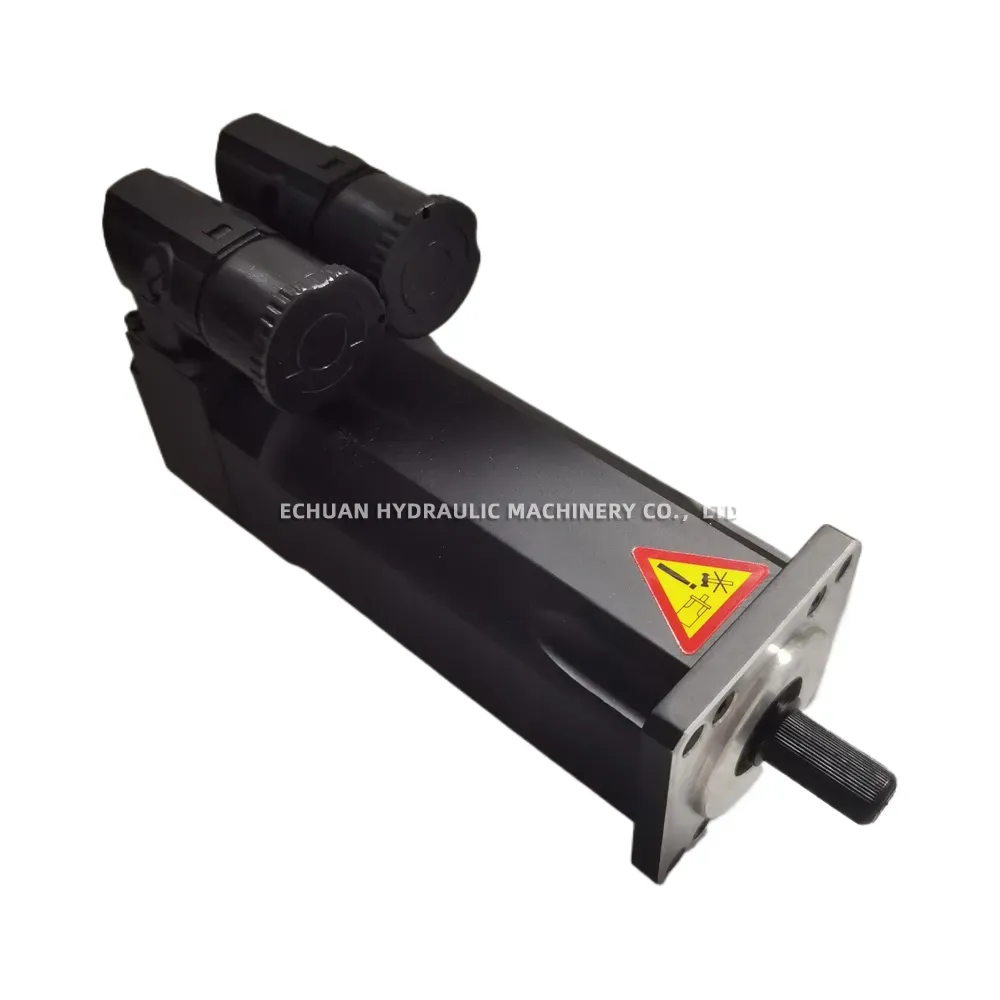

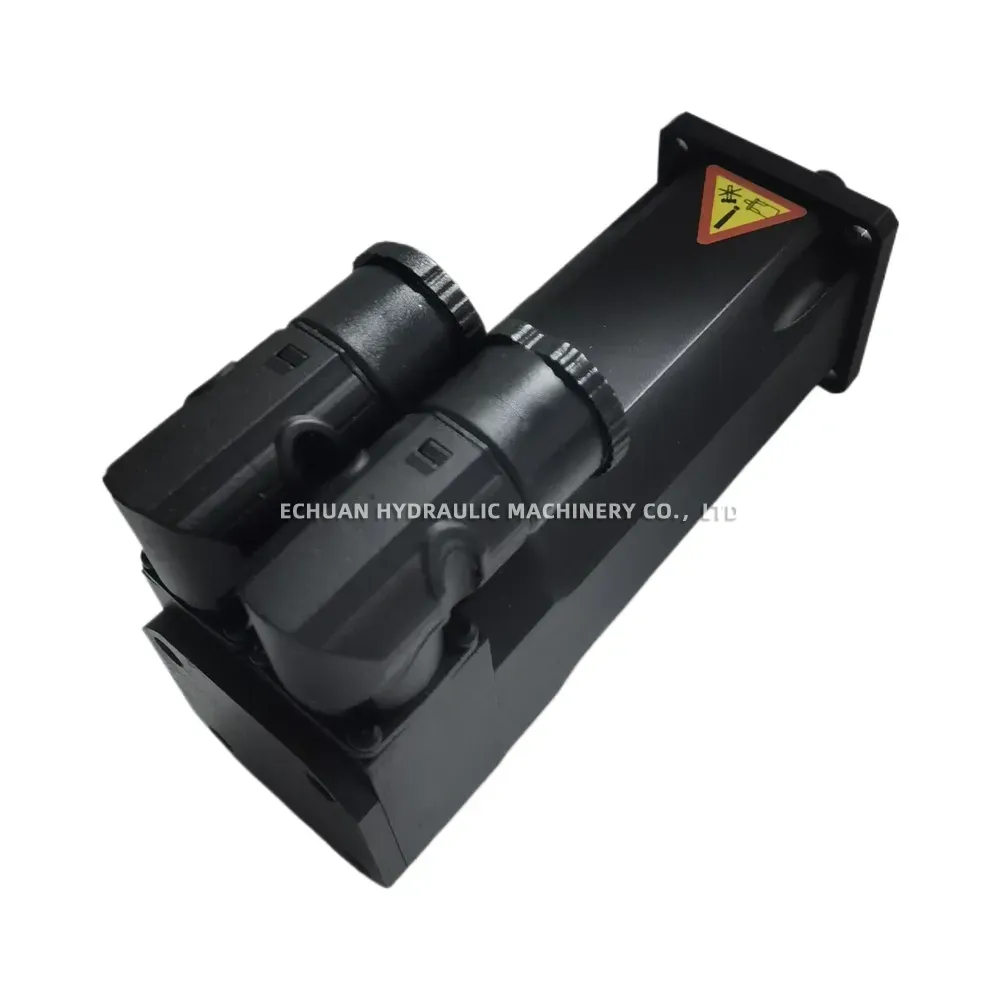

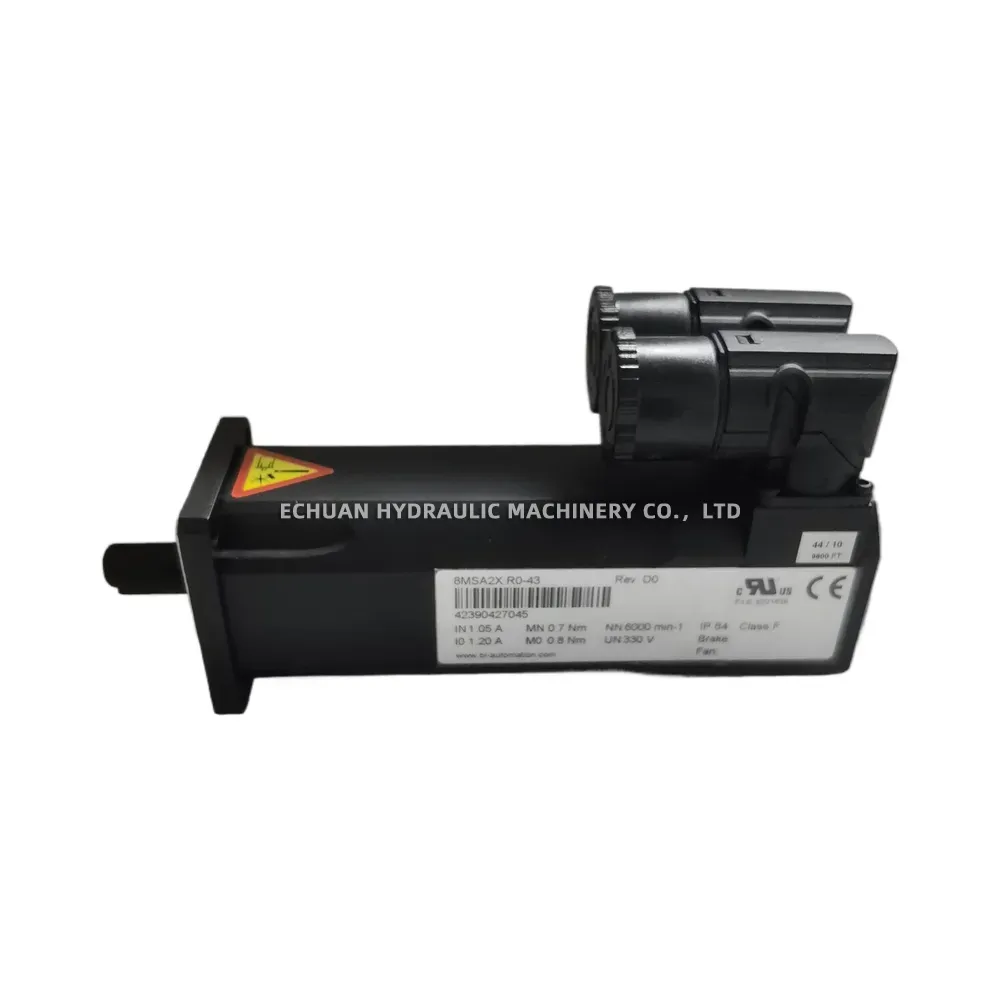

B&R 8MSA2X.R0-43 Servo Motor
The B&R 8MSA2X.R0-43 is a high-performance synchronous servo motor designed for demanding industrial automation applications. Engineered for precision and reliability, it delivers a rated torque of 0.7 Nm and achieves a high rated speed of 6000 rpm, making it ideal for dynamic motion control tasks. This model comes equipped with an integrated holding brake for safety and position holding, as well as a fan for enhanced thermal management during continuous operation. With an IP54 protection rating, the motor is well-protected against dust and splashing water, ensuring durability in various industrial environments.
Technical Specifications:
- Model: 8MSA2X.R0-43
- Type: Synchronous Servo Motor
- Rated Voltage (UN): 330 V
- Rated Torque (MN): 0.7 Nm
- Rated Speed (NN): 6000 min-1
- Rated Current (IN): 1.05 A
- Stall Torque (M0): 0.8 Nm
- Stall Current (I0): 1.20 A
- Features: Integrated Brake, Integrated Fan
- Protection Rating: IP54
- Insulation Class: Class F
B&R 8MSA2X.R0-43 Servo Motor
Shop the B&R 8MSA2X.R0-43 synchronous servo motor. This compact motor features 0.7 Nm rated torque, 6000 rpm speed, an integrated brake and fan, and IP54 protection for reliable performance in industrial automation.
