Product Description

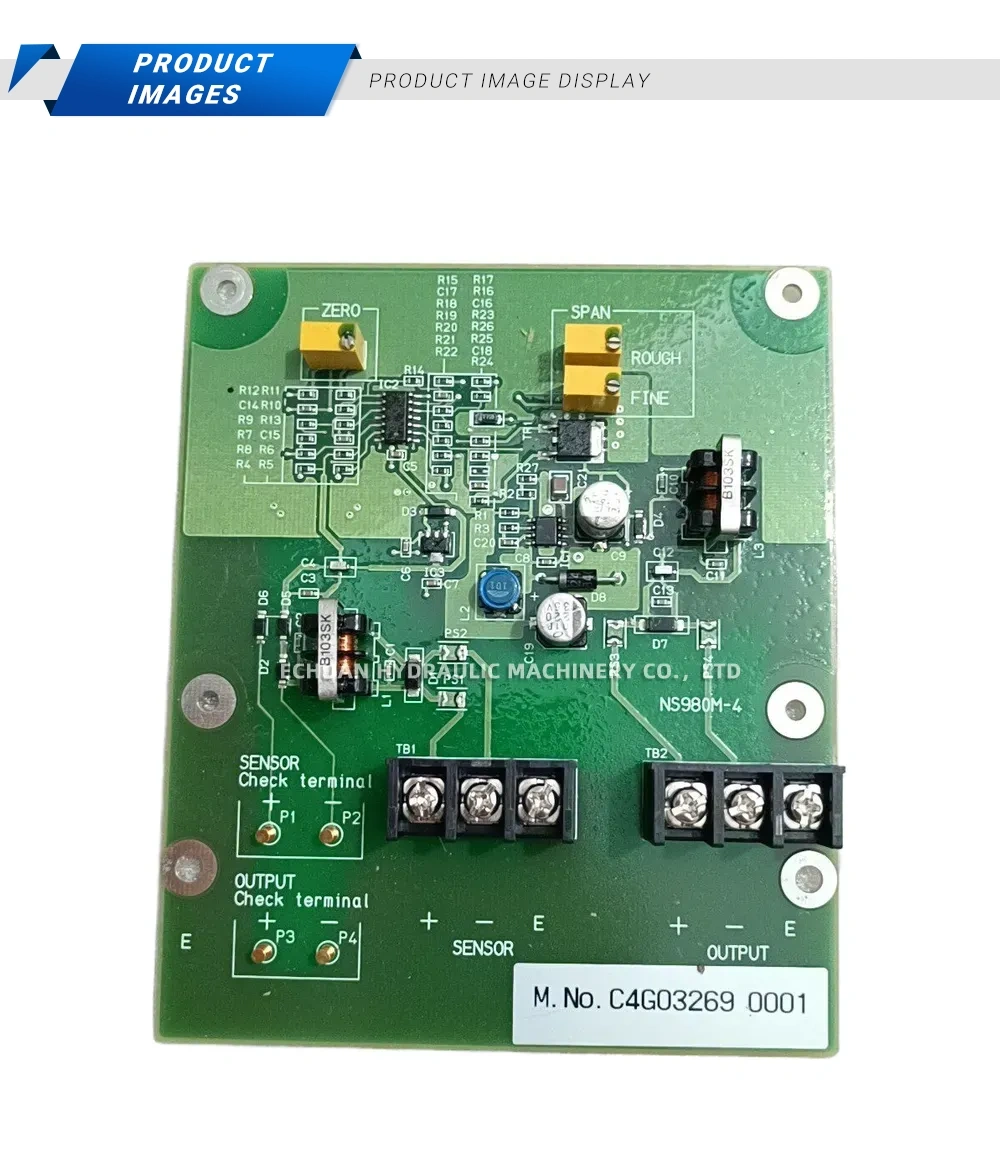

C4G03269 PCB Amplifier Board
The C4G03269 PCB Amplifier Board is a specialized signal conditioning module designed for accurate industrial sensor integration and signal processing. Identified by the substrate marking NS980M-4, this robust green printed circuit board is engineered to provide precise control over sensor inputs and outputs. It features integrated ZERO and SPAN calibration potentiometers, allowing for meticulous signal tuning with both rough and fine adjustments available for the Span. The board simplifies wiring and field diagnostics through its dedicated terminal blocks—TB1 for sensor input and TB2 for output—alongside specialized check terminals (P1/P2 for sensor testing and P3/P4 for output monitoring). Populated with high-quality surface mount and through-hole components, this module ensures reliable performance in demanding measurement and automation applications.
Technical Specifications:
- Model Number: C4G03269 (M. No. C4G03269 0001)
- Board Identifier: NS980M-4
- Calibration Controls: ZERO and SPAN potentiometers (Span features Rough and Fine adjustment capabilities)
- Primary Connections: Terminal blocks TB1 (Sensor Input) and TB2 (Signal Output)
- Diagnostic Terminals: Dedicated check pins for Sensor (P1, P2) and Output (P3, P4) testing
- Component Architecture: Mixed surface-mount (SMD) and through-hole technology including ICs, capacitors, and resistors

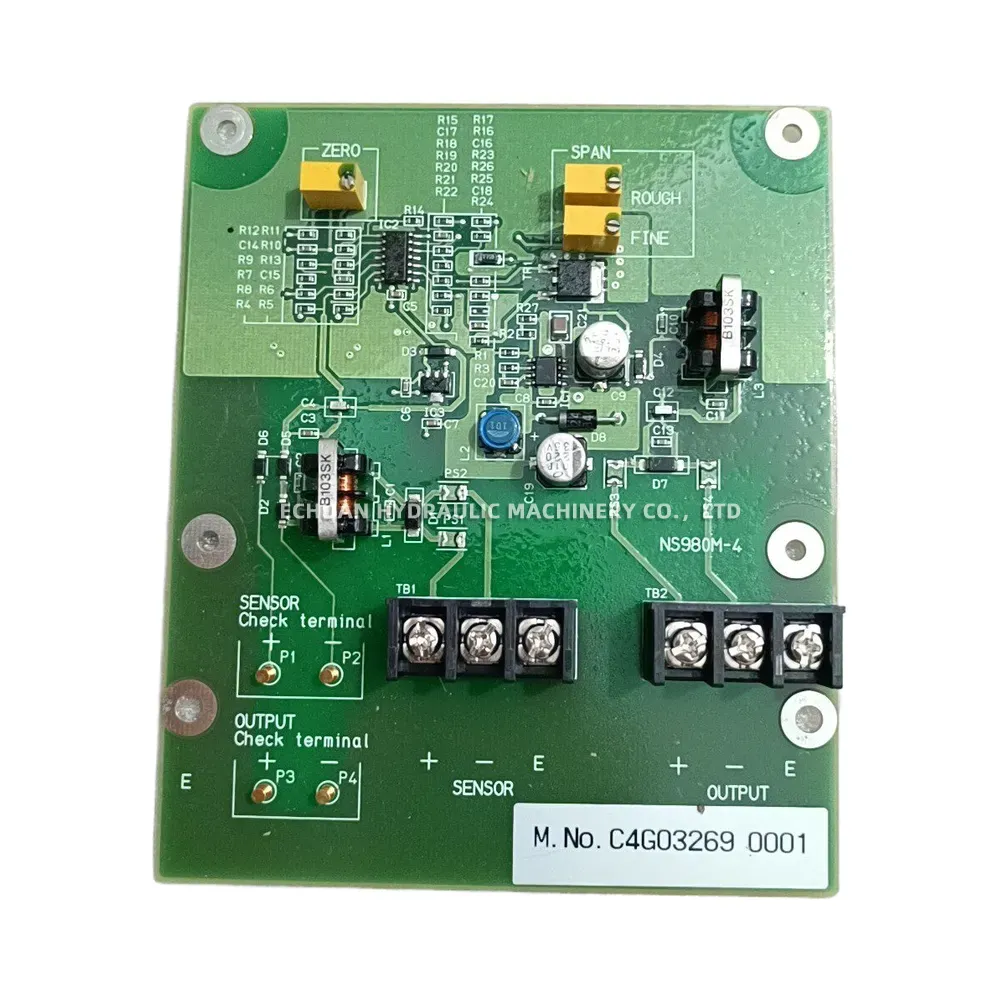

C4G03269 PCB Amplifier Board
Enhance your industrial sensor systems with the C4G03269 PCB Amplifier Board (NS980M-4). This high-quality signal conditioning module features precise Zero and Span calibration, secure TB1/TB2 terminal blocks, and built-in diagnostic test points for reliable and accurate measurement processing.
