Product Description

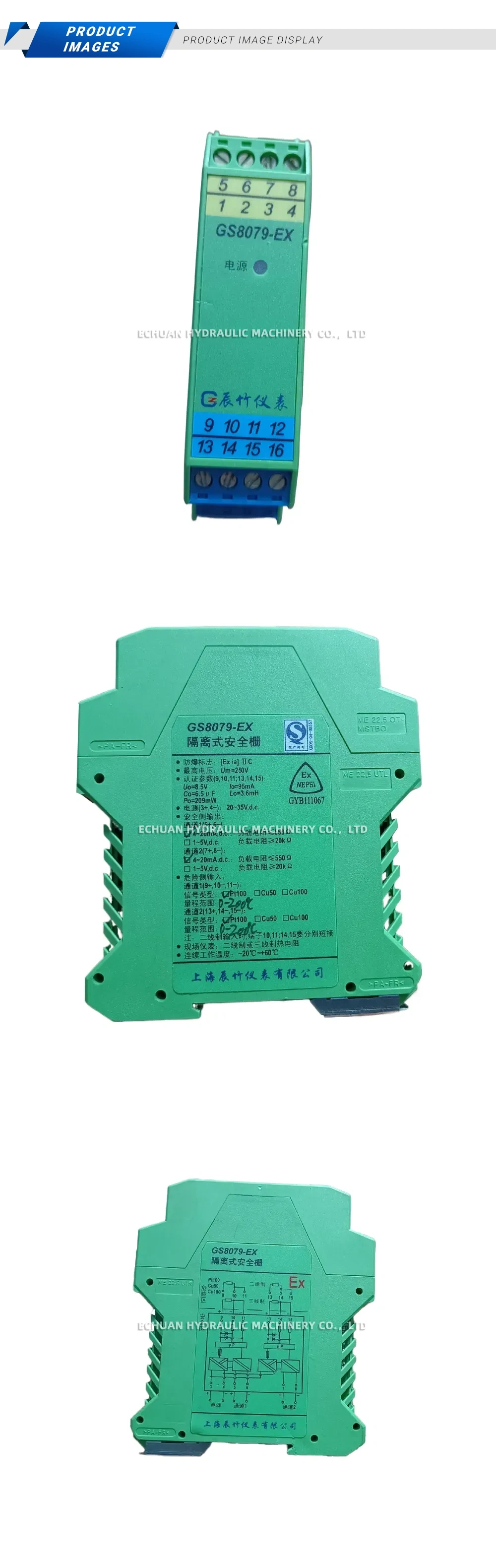

Chenzhu GS8079-EX
The Chenzhu GS8079-EX is a high-performance, single-channel power rail isolated barrier designed for intrinsic safety applications. It reliably powers two-wire transmitters located in hazardous areas (Zone 0, IIC) and transmits their 4-20mA current signal to the safe area. This device ensures a safe and accurate signal transmission by limiting the energy supplied to the field, preventing potential ignitions. Featuring high accuracy, a fast response time, and easy 35mm DIN rail mounting, the GS8079-EX is an essential component for process control and automation systems operating in explosive atmospheres.
Technical Specifications:
- Model: GS8079-EX
- Type: 1-channel Power Rail Isolated Barrier
- Supply Voltage: 20-35V DC
- Input Signal (Hazardous Area): 4-20mA from a 2-wire transmitter
- Output Signal (Safe Area): 4-20mA
- Safety Parameters (Terminals 1, 2): Uo=28V, Io=93mA, Po=651mW
- Accuracy: ±0.1% F.S.
- Mounting: 35mm DIN Rail
Chenzhu GS8079-EX
Discover the Chenzhu GS8079-EX, a single-channel intrinsically safe isolated barrier for powering 2-wire transmitters in hazardous areas. It ensures reliable 4-20mA signal transmission to safe zones, ideal for Zone 0 applications.
