Product Description

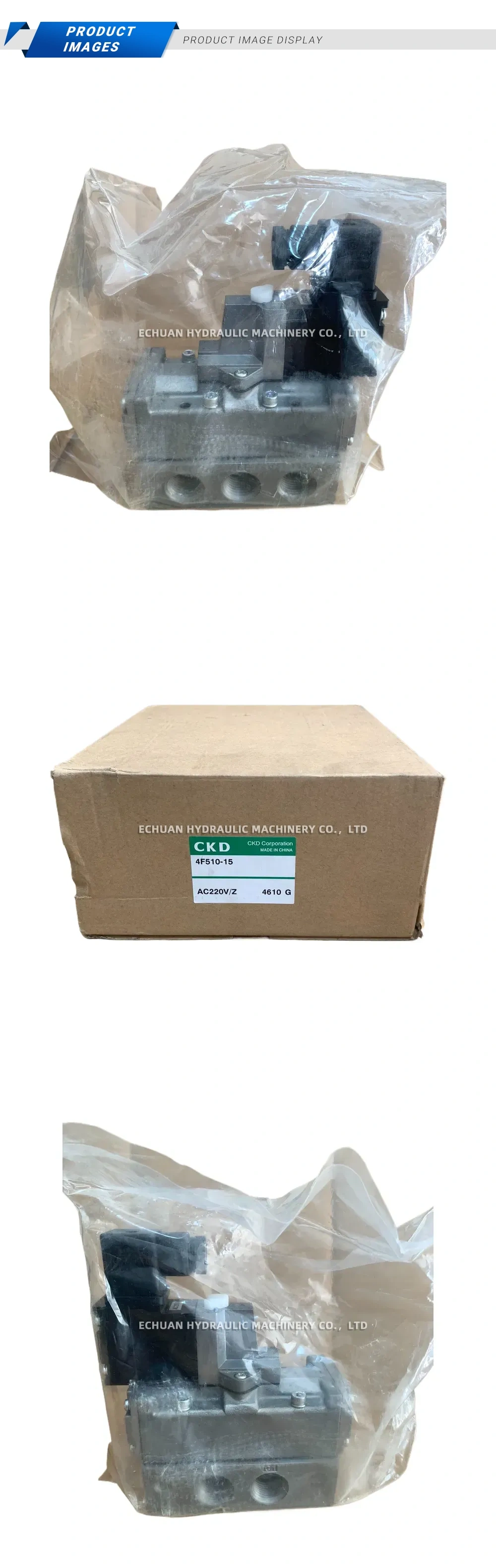

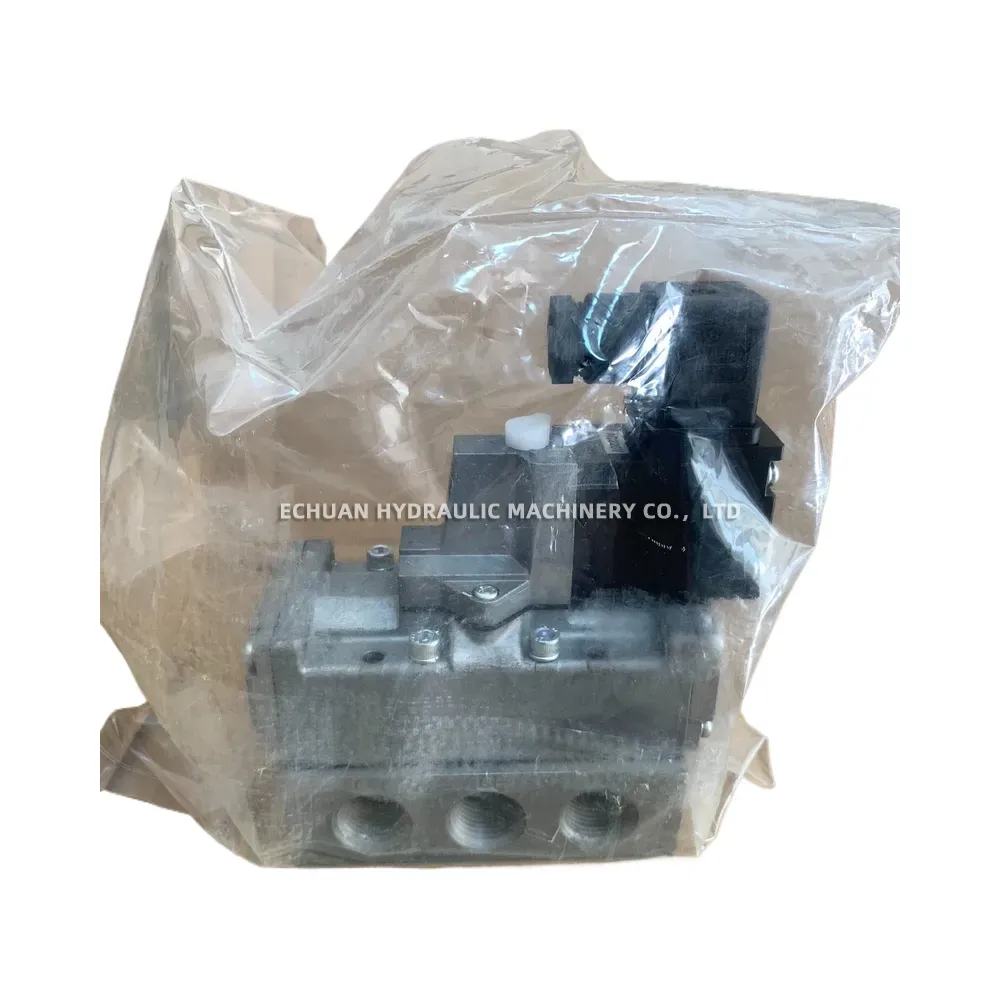

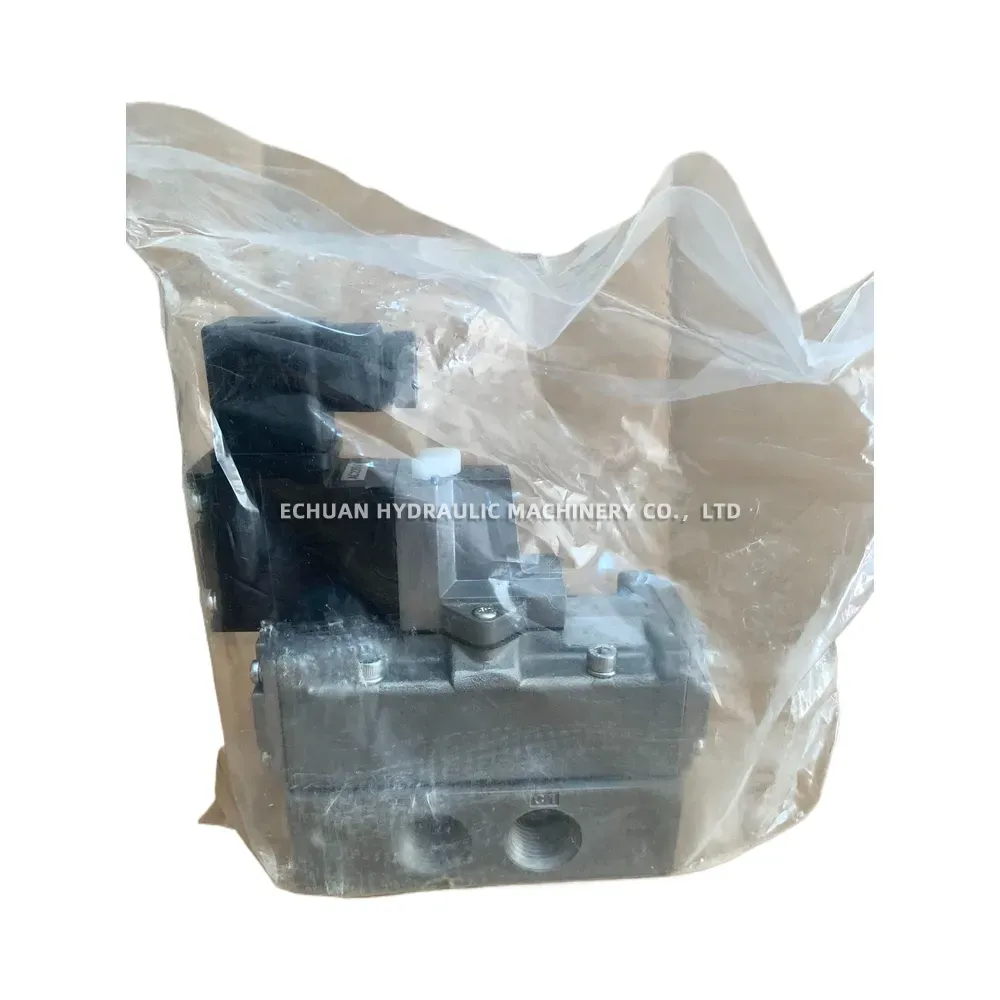

CKD 4F510-15 5-Port Pilot Operated Solenoid Valve
The CKD 4F510-15 is a high-performance, pilot-operated 5-port solenoid valve from the renowned 4F series. Engineered for reliability and durability, this valve is designed to control the flow of compressed air in a wide range of pneumatic systems. Its robust construction ensures a long service life even in demanding industrial environments. The pilot-operated design allows for high flow rates with low power consumption, making it an efficient choice for actuating pneumatic cylinders, clamps, and other air-powered equipment. With its standardized porting and mounting, the 4F510-15 offers easy integration into both new and existing systems.
Technical Specifications:
- Model: 4F510-15
- Valve Type: 5-Port Pilot Operated Solenoid Valve
- Port Size: Rc1/2 (also available in G1/2, NPT1/2)
- Operating Fluid: Compressed Air
- Operating Pressure Range: 0.1 to 1.0 MPa
- Effective Area (Cv): 12.0 mm² (0.67)
- Coil Voltage: Available in various AC and DC ratings (e.g., DC24V, AC100V, AC200V)
- Protection Structure: IP65 equivalent (with grommet)
CKD 4F510-15
Discover the CKD 4F510-15, a reliable 5-port pilot operated pneumatic solenoid valve with an Rc1/2 port size. Ideal for high-flow industrial automation and pneumatic control applications.
