Product Description

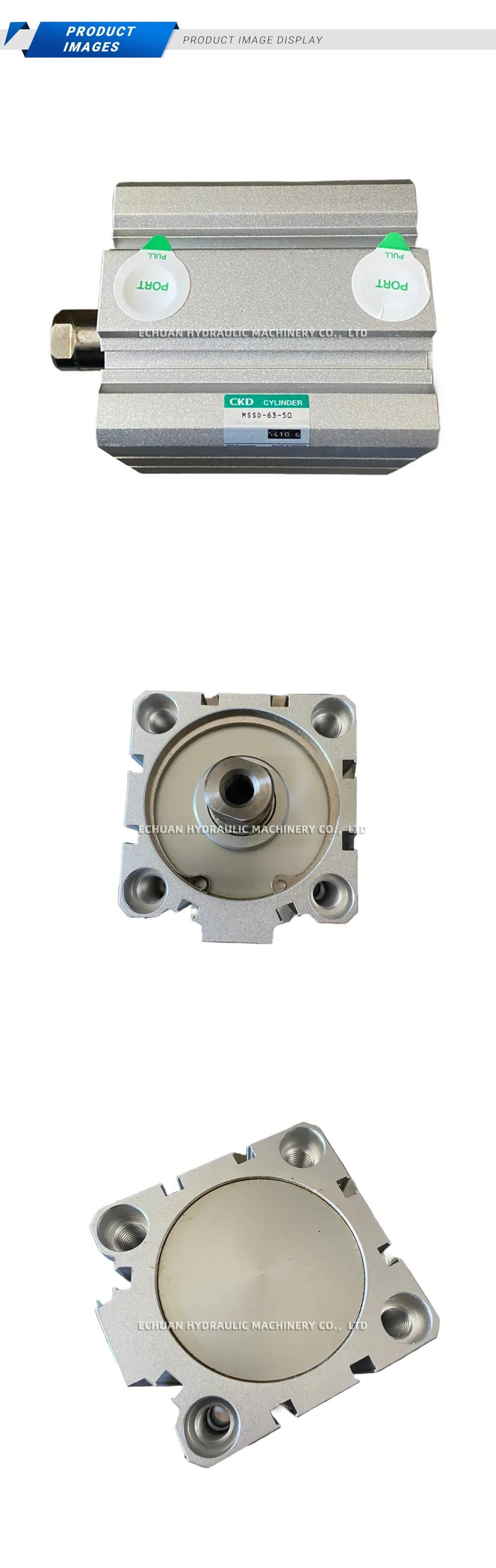

CKD MSSD-63-50
The CKD MSSD-63-50 is a high-quality Super Compact Cylinder designed for industrial automation applications where space is a premium. As part of the MSSD series, this model features a non-rotating rod, ensuring precise and stable linear motion for tasks requiring accurate workpiece positioning. Its double-acting mechanism allows for powered movement in both extend and retract directions, providing excellent control and reliability. Built with durability in mind, the MSSD-63-50 is constructed for long service life in demanding pneumatic systems, making it an ideal choice for machinery, robotics, and assembly lines.
Technical Specifications:
- Series: MSSD (Super Compact Cylinder, Non-rotating rod)
- Action: Double Acting
- Bore Size: 63 mm
- Stroke Length: 50 mm
- Operating Fluid: Compressed Air
- Maximum Operating Pressure: 1.0 MPa
- Cushion: Rubber bumper on both ends
- Mounting Style: Through-hole (Standard)
CKD MSSD-63-50
Shop the CKD MSSD-63-50, a reliable double-acting, non-rotating rod Super Compact Cylinder with a 63mm bore and 50mm stroke. Perfect for space-saving pneumatic automation solutions.
| Brand | CKD |
|---|---|
| Model | MSSD-63-50 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/ckd-mssd-63-50 |
