Product Description

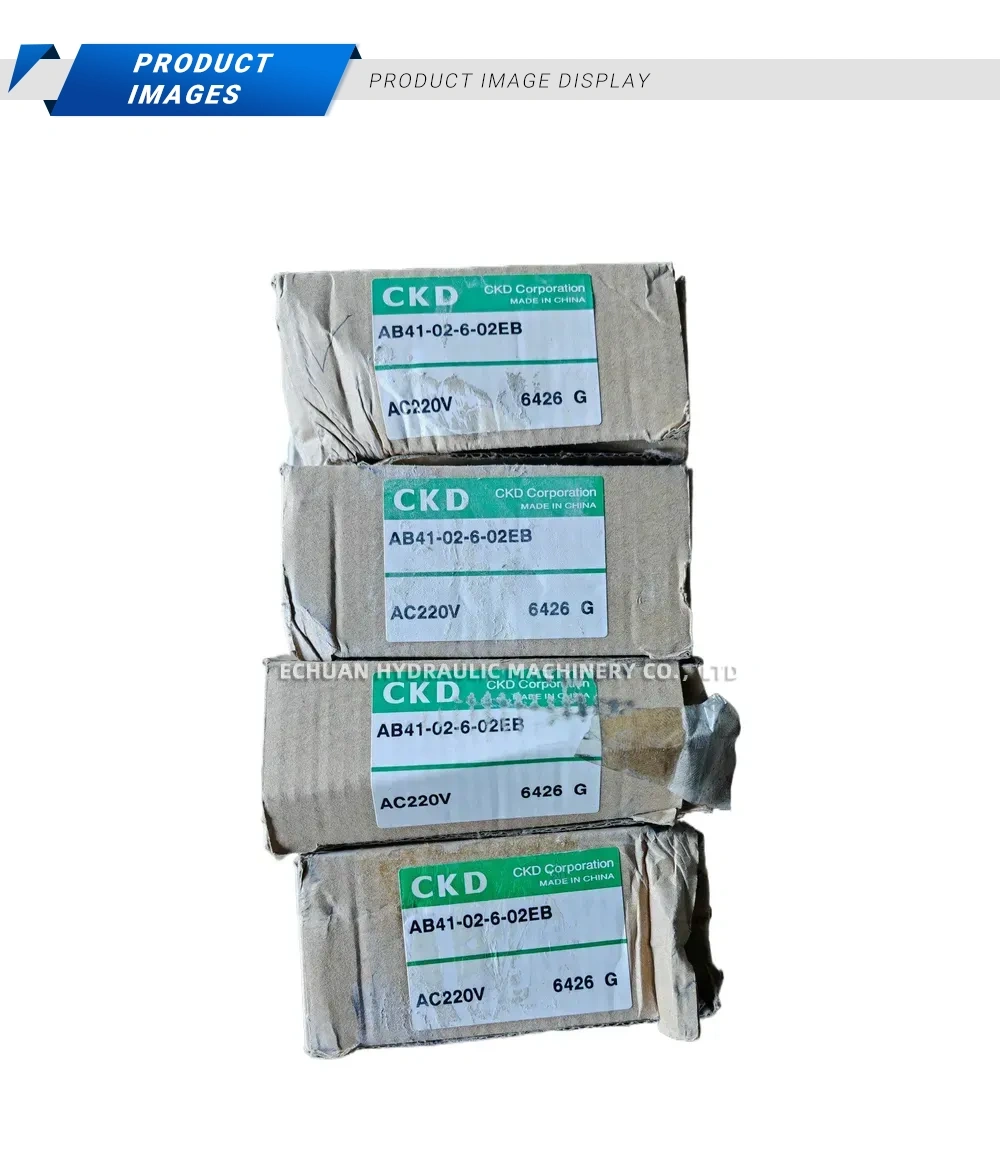

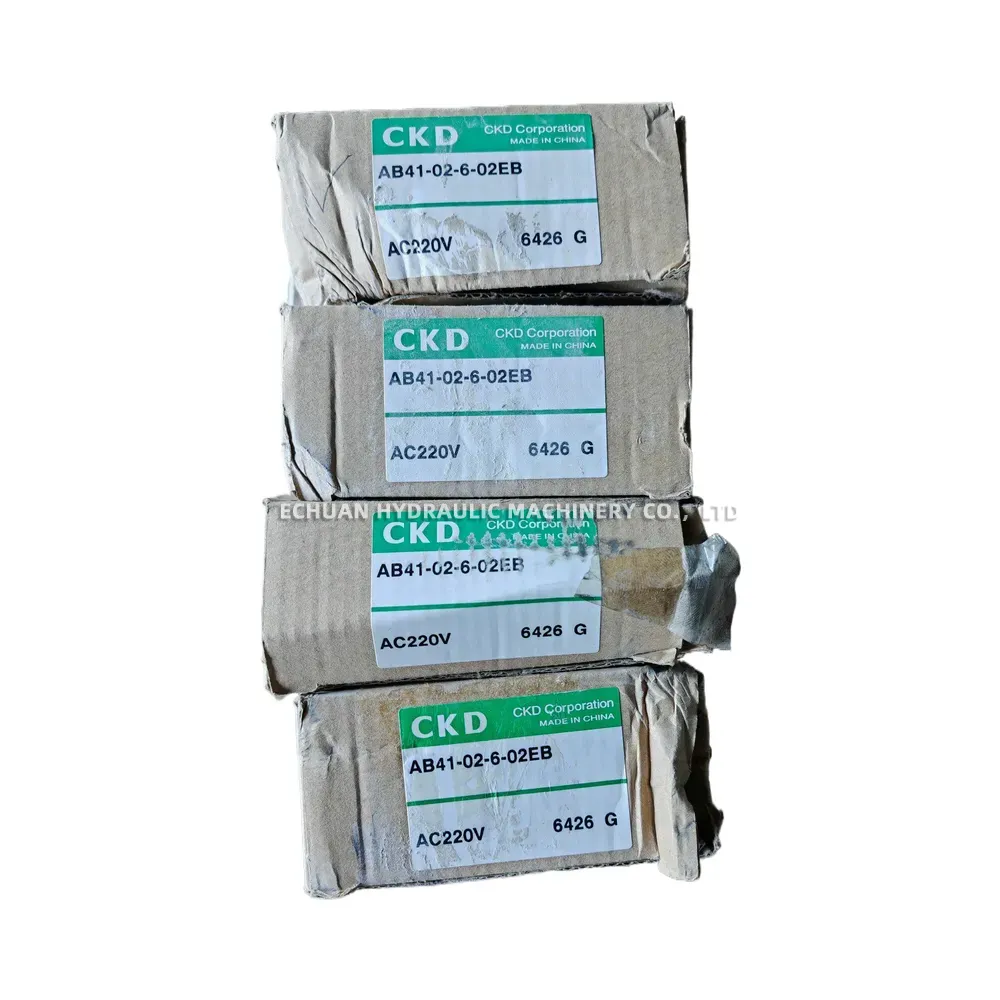

CKD AB41-02-6-02EB Solenoid Valve
The CKD AB41-02-6-02EB is a high-reliability, direct-acting 2-port solenoid valve designed for multi-purpose fluid control. As part of the versatile AB series, this normally closed (NC) valve is engineered for durability and consistent performance. Its robust brass body and NBR seal construction make it suitable for a wide range of media, including air, inert gas, water, and oil. This model is ideal for various industrial automation and fluid control applications requiring precise on/off operation with a 220V AC power supply.
Technical Specifications:
- Model: AB41-02-6-02EB
- Type: Direct-acting, 2-Port, Normally Closed (NC)
- Port Size: Rc 1/4
- Orifice Diameter: 6 mm
- Operating Voltage: AC220V (50/60Hz)
- Applicable Fluids: Air, Inert Gas, Water, Kerosene, Oil (viscosity ≤ 50 mm²/s)
- Max. Operating Pressure Differential: 1.0 MPa
- Body Material: Brass
- Seal Material: NBR (Nitrile Rubber)
CKD AB41-02-6-02EB Solenoid Valve
Shop the CKD AB41-02-6-02EB, a direct-acting, normally closed 2-port solenoid valve. Features Rc 1/4 ports, a 6mm orifice, and operates on AC220V. Perfect for controlling air, water, and oil in industrial systems.
| Brand | CKD |
|---|---|
| Model | AB41-02-6-02EB |
| Part No. | 990066510471 |
| Category | Hydraulic valves |
