Product Description

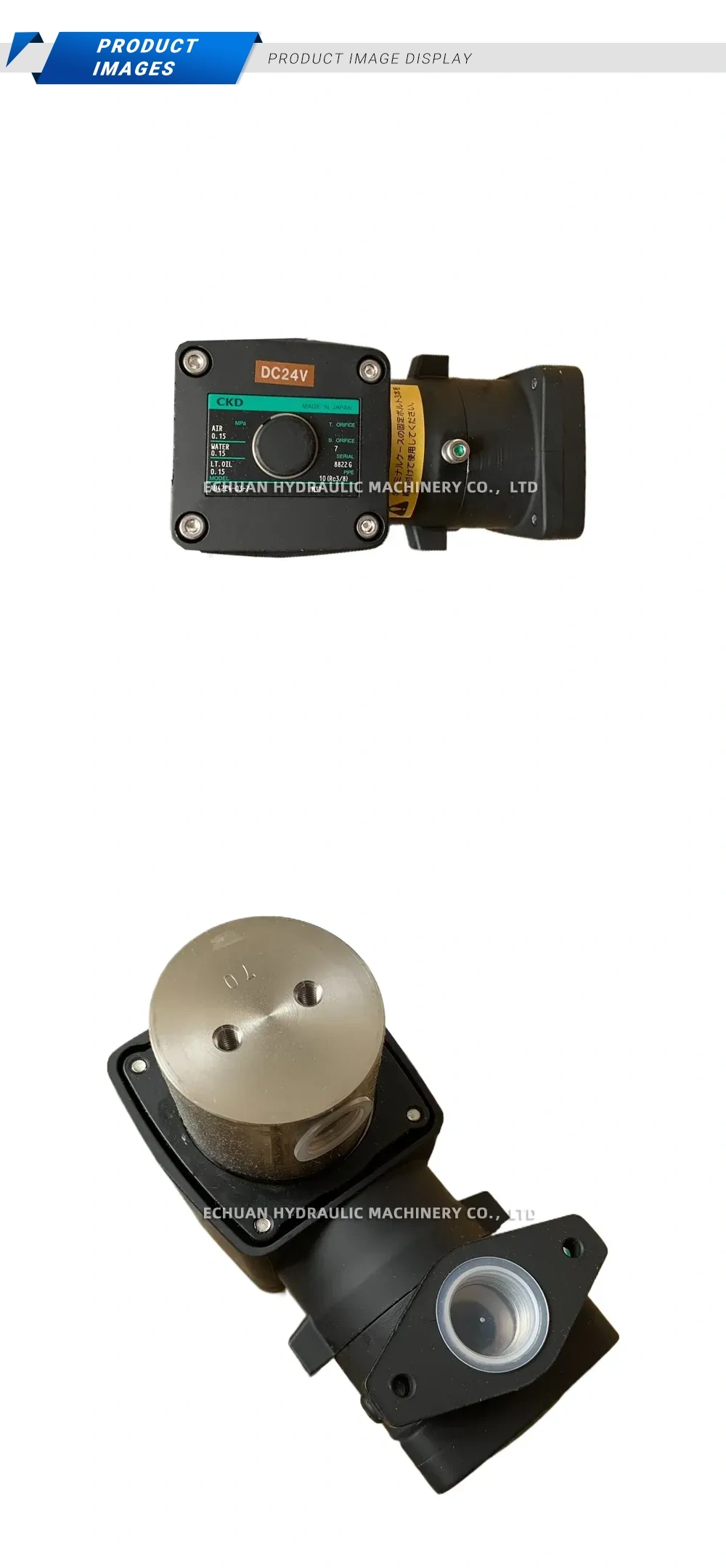

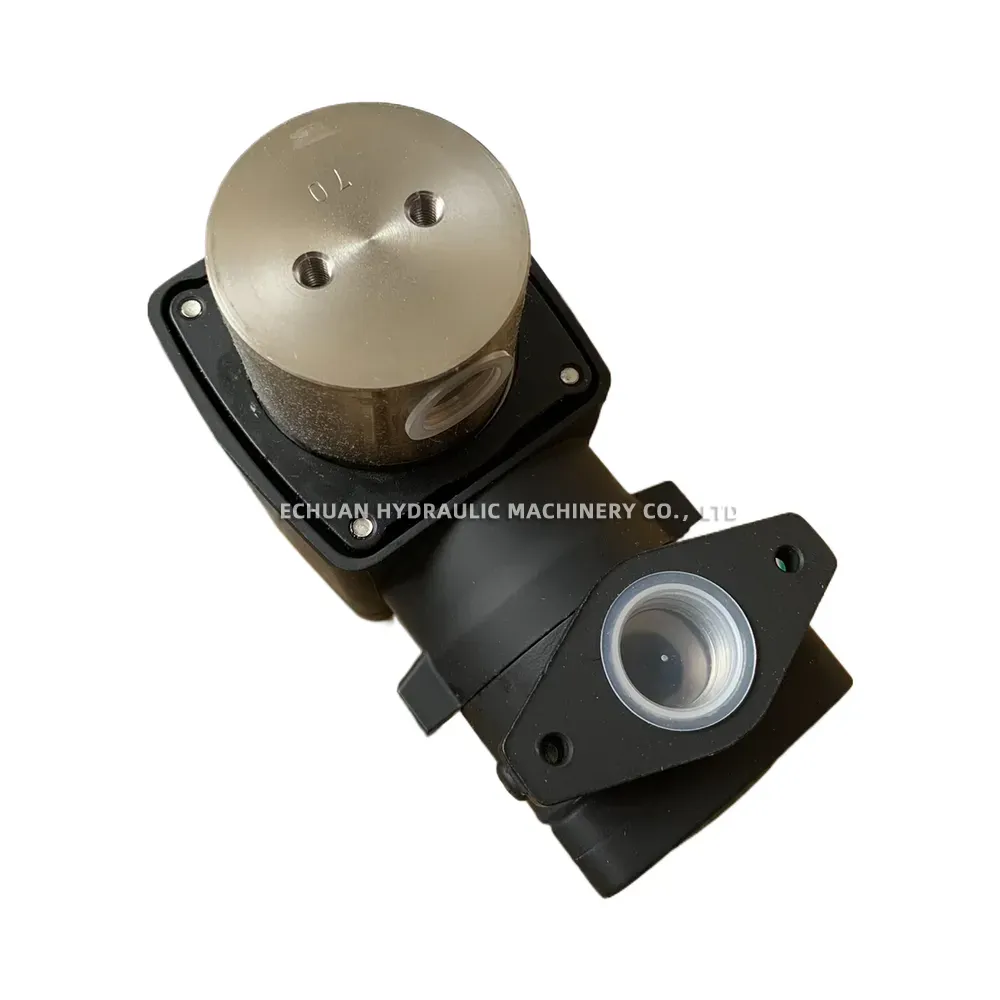

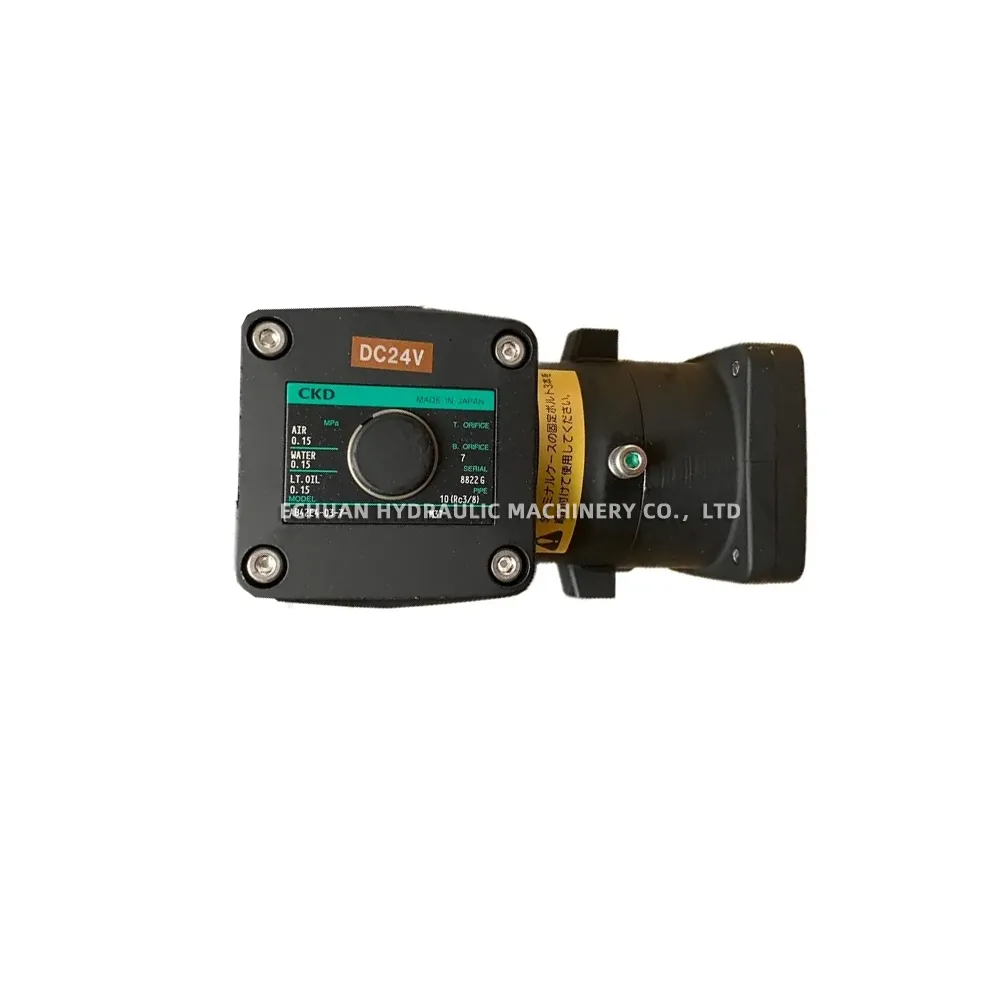

CKD AB42E4-03-7-M3T-DC24V
The CKD AB42E4-03-7-M3T-DC24V is a high-reliability, direct-acting 2-port solenoid valve from the AB series, designed for multi-purpose fluid control. This normally closed valve features a robust bronze body and durable NBR seals, making it suitable for a wide range of media including air, water, and oil. With an Rc 3/8 port size and a 7mm orifice, it offers excellent flow characteristics for various industrial applications. The 24V DC coil and convenient terminal box connection ensure straightforward electrical integration and dependable performance in automated systems.
Technical Specifications:
- Model: AB42E4-03-7-M3T-DC24V
- Valve Type: Direct Acting 2-Port Solenoid Valve
- Function: Normally Closed (NC)
- Port Size: Rc 3/8
- Orifice Diameter: 7 mm
- Body / Seal Material: Bronze (CAC406) / NBR
- Rated Voltage: 24V DC
- Electrical Connection: Terminal Box (Lead wire type)
CKD AB42E4-03-7-M3T-DC24V
Discover the CKD AB42E4-03-7-M3T-DC24V, a normally closed, direct-acting 2-port solenoid valve. Featuring Rc 3/8 ports, a bronze body, and a 24V DC coil, it’s ideal for reliable control of air, water, and oil.
| Brand | CKD |
|---|---|
| Model | AB42E4-03-7-M3T-DC24V |
| Category | Hydraulic valves |
