Product Description

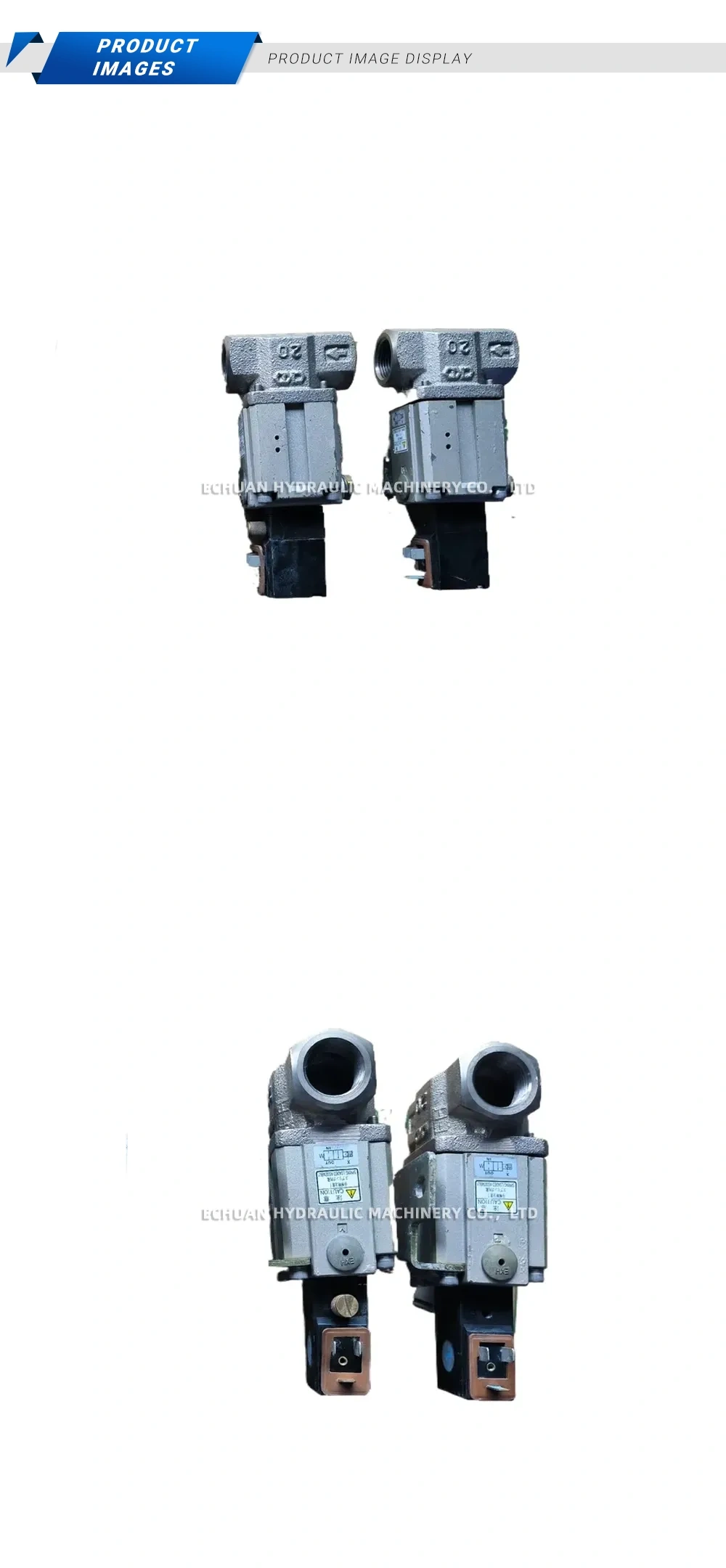

CKD CVS2-20A-05-02HSB-3-ST
The CKD CVS2-20A-05-02HSB-3-ST is a compact, direct-acting 2-port solenoid valve designed for general-purpose fluid control applications. Part of the versatile CVS2 series, this valve features a robust bronze or brass body and durable FKM seals, making it suitable for a wide range of media including air, water, and oil. Its direct-acting mechanism ensures reliable and quick response times, even at zero pressure. This model operates on a 24V DC power supply and is ideal for integration into automated systems requiring precise on/off control of fluid flow.
Technical Specifications:
- Series: CVS2
- Valve Type: 2-Port Direct Acting Solenoid Valve (Normally Closed)
- Port Size: Rc 3/4
- Orifice Diameter: ø5 mm
- Body Material: Bronze (CAC406) or Brass (C3771BD)
- Seal Material: FKM (Fluoro rubber)
- Rated Voltage: 24V DC
- Applicable Fluid: Air, Water, Kerosene, Oil (viscosity not exceeding 50 mm²/s)
- Operating Pressure Differential Range: 0 – 1.0 MPa (for Air/Water)
CKD CVS2-20A-05-02HSB-3-ST
Buy the CKD CVS2-20A-05-02HSB-3-ST, a reliable 2-port direct-acting solenoid valve. This 24V DC valve features an Rc 3/4 port and is suitable for air, water, and oil control.
