Product Description

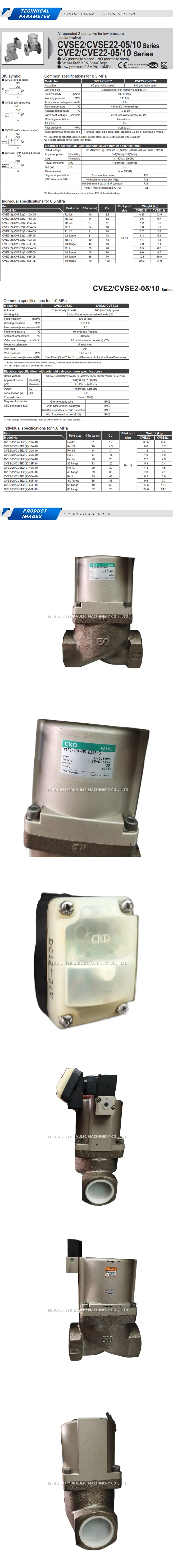

CKD CVSE2-50A-05-03RS-3
The CKD CVS2-50A-05-03RS-3 is a high-performance, pilot-operated 2-port solenoid valve designed for reliable control in a wide range of general-purpose applications. This normally closed (NC) valve features a robust bronze body and durable NBR seals, making it suitable for controlling fluids such as air, water, and oil. With a large 50A (Rc2) port size and a 50mm orifice, it delivers excellent flow capacity for demanding industrial systems. Its reliable construction ensures long service life and consistent performance.
Technical Specifications:
- Model Series: CVS2 (Pilot operated 2-port solenoid valve)
- Operation: Normally Closed (NC)
- Port Size: 50A (Rc2)
- Orifice Diameter: 50 mm
- Applicable Fluid: Air, Water, Oil (viscosity not exceeding 50 mm²/s)
- Operating Pressure Differential: 0.05 to 1.0 MPa
- Body Material: Bronze (CAC406)
- Seal Material: NBR (Nitrile Rubber)
- Rated Voltage: AC200V (50/60Hz) / AC220V (60Hz)
CKD CVSE2-50A-05-03RS-3
Discover the CKD CVS2-50A-05-03RS-3, a robust normally closed pilot-operated solenoid valve. Features a 50A (Rc2) port, bronze body, and NBR seal for reliable control of air, water, and oil.
