Product Description

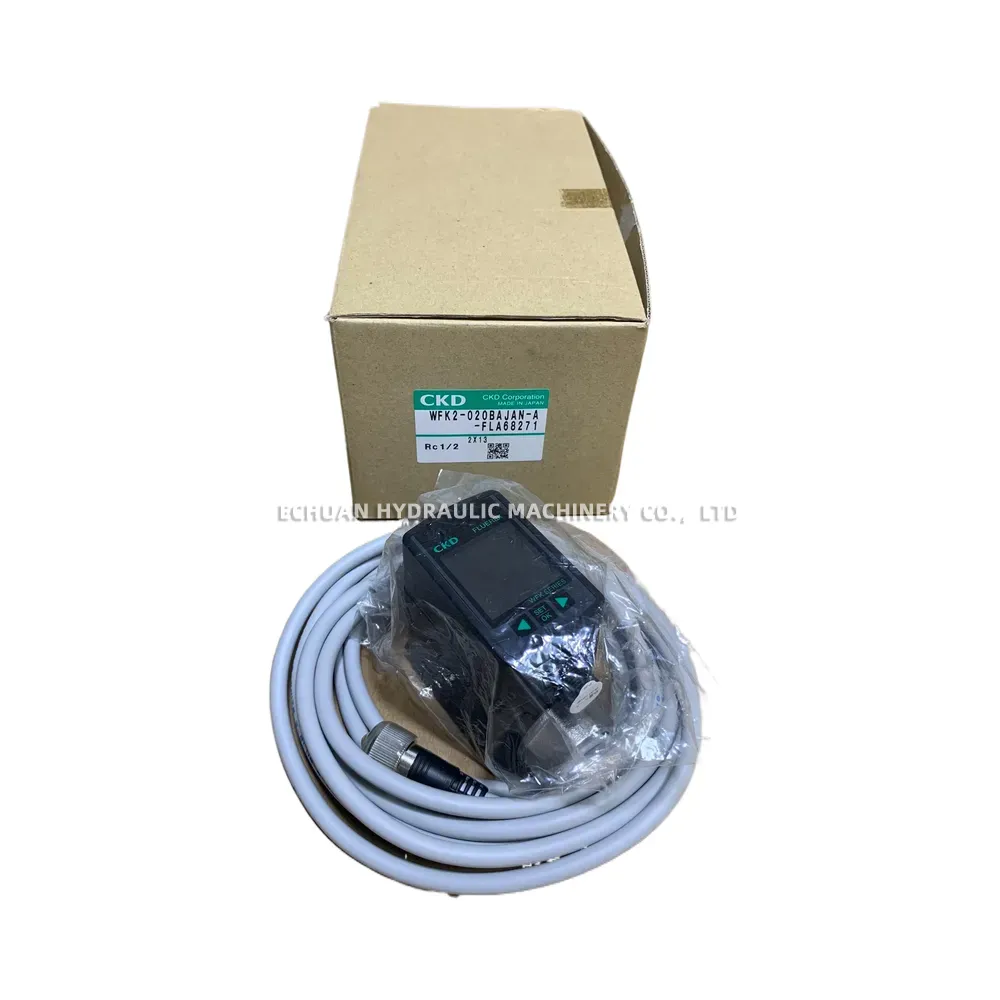

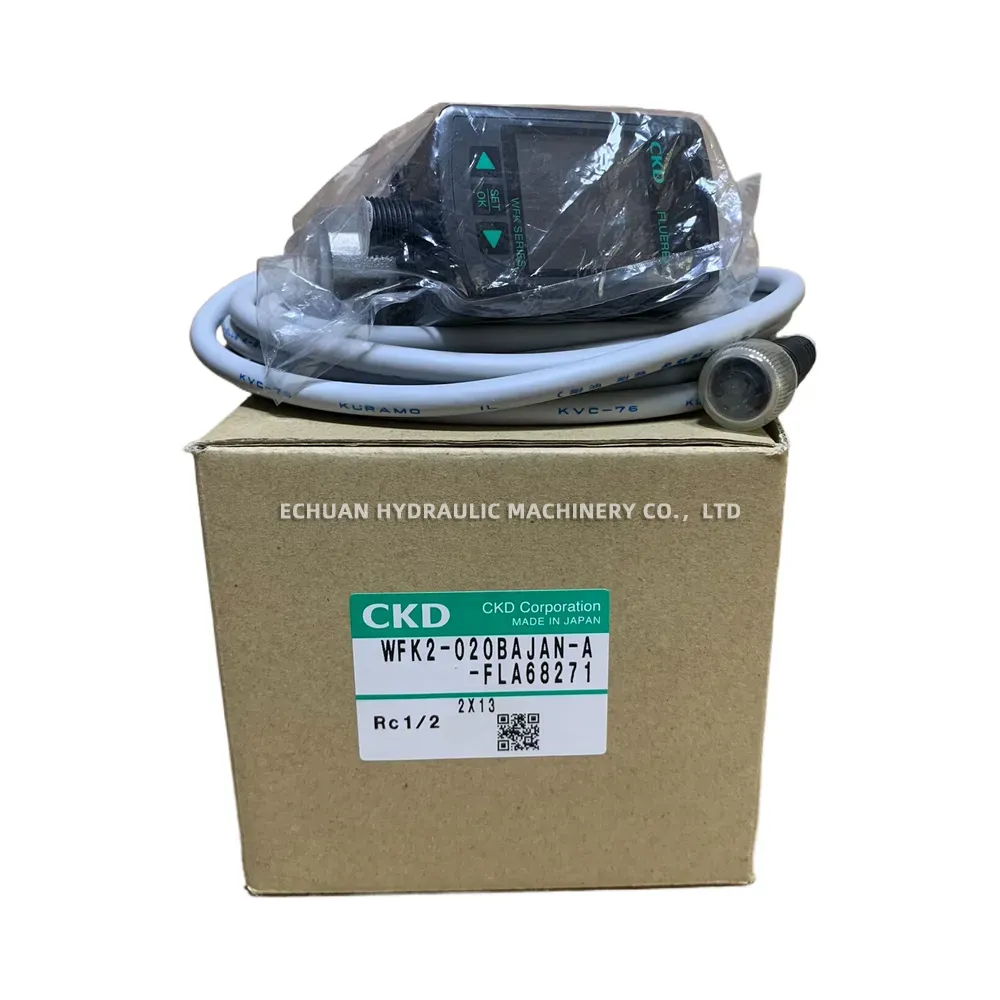

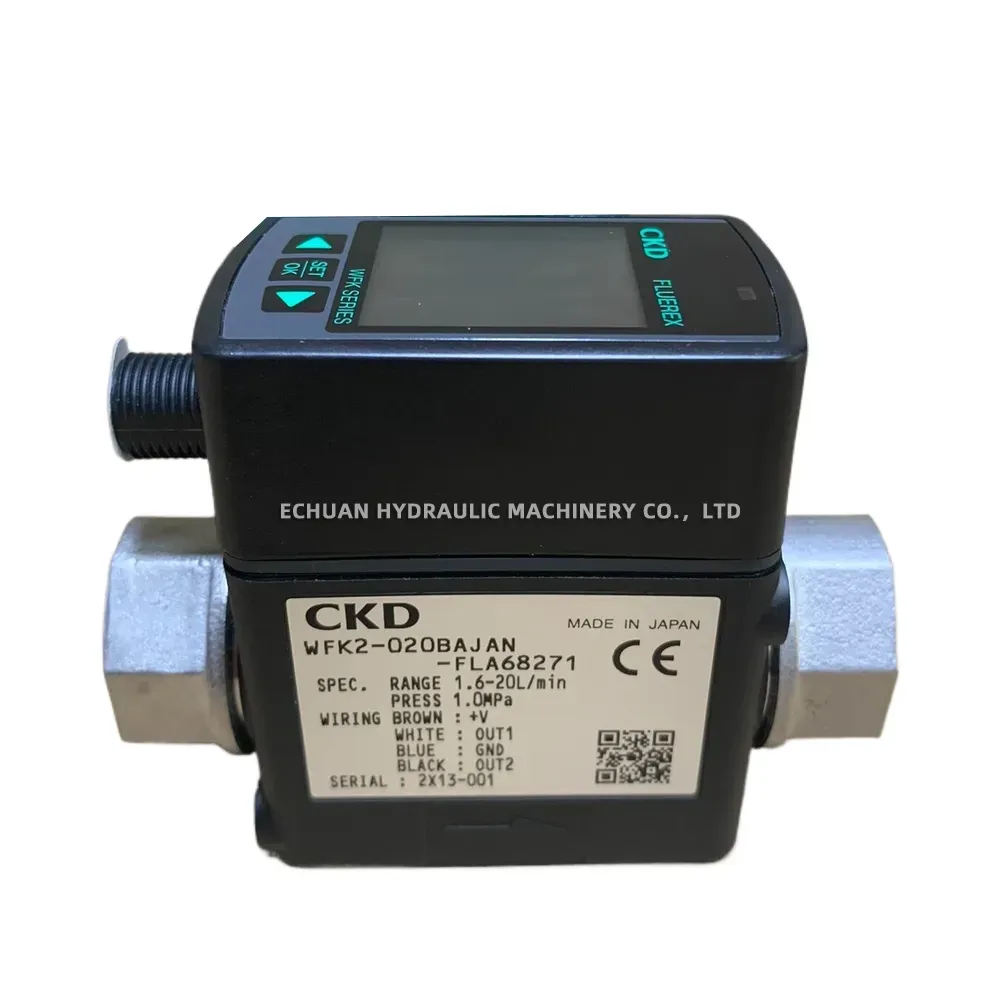

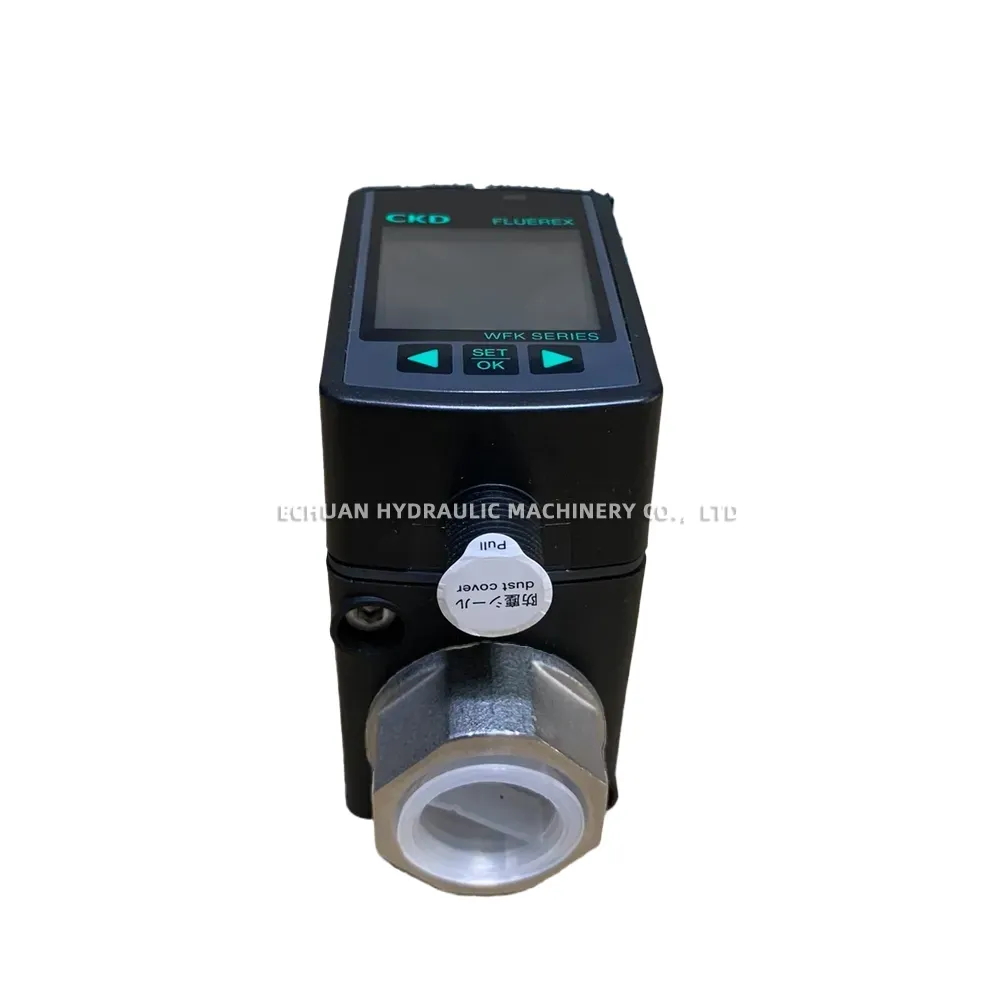

CKD WFK2-020BAJAN-A-FLA68271

The CKD WFK2-020BAJAN-A-FLA68271 is a high-precision digital flow sensor from the Karman vortex WFK2 series. It is engineered for accurate measurement and monitoring of various gases, including air, nitrogen, argon, and carbon dioxide. This model features an integrated digital display for clear, real-time flow rate readings, and provides a 1-5V analog output for seamless integration into control systems. Its compact and robust design makes it an ideal solution for a wide range of industrial applications, such as process control, equipment monitoring, and automation, where reliable flow measurement is essential for operational efficiency and quality assurance.

Technical Specifications:

  • Series: WFK2

  • Rated Flow Rate: 0.4 to 20 L/min (ANR)

  • Applicable Fluid: Air, Nitrogen (N2), Argon (Ar), Carbon Dioxide (CO2)

  • Port Size: Rc1/4

  • Output Specification: Analog output 1-5V DC

  • Power Supply Voltage: 12 to 24 VDC ±10%

  • Display: Integrated digital display with L/min unit

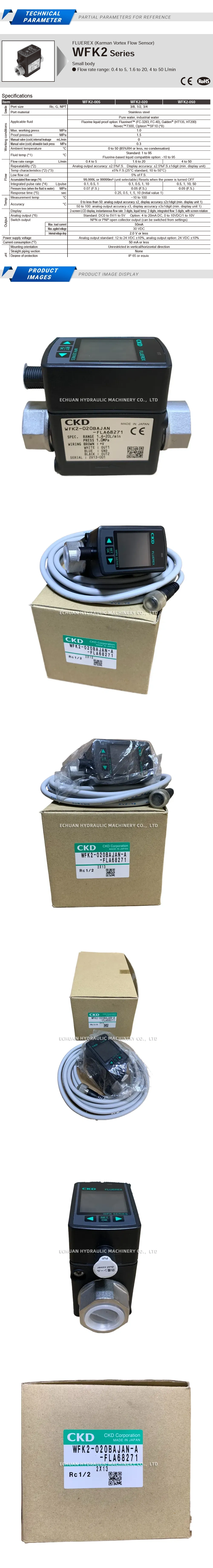

CKD WFK2-020BAJAN-A-FLA68271 Description

CKD WFK2-020BAJAN-A-FLA68271

CKD WFK2-020BAJAN-A-FLA68271 digital flow sensor for air and inert gases, featuring a 0.4-20 L/min range, Rc1/4 port, integrated display, and 1-5V analog output.

BrandCKD
ModelWFK2-020BAJAN-A-FLA68271
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/ckd-wfk2-020bajan-a-fla68271
