Product Description

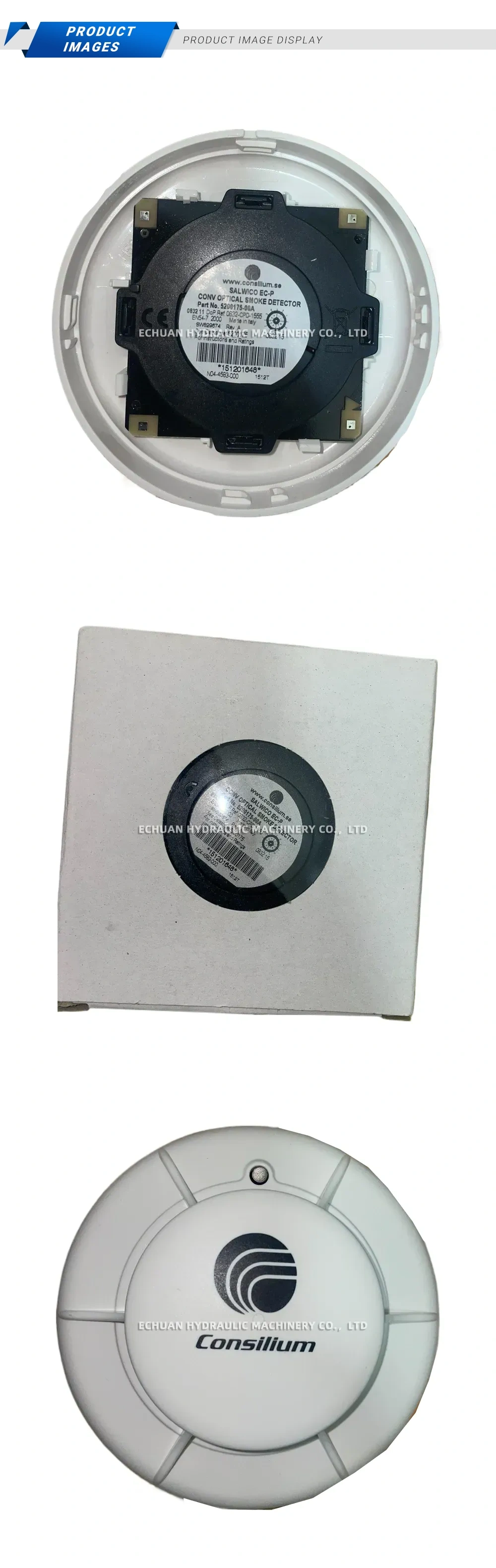

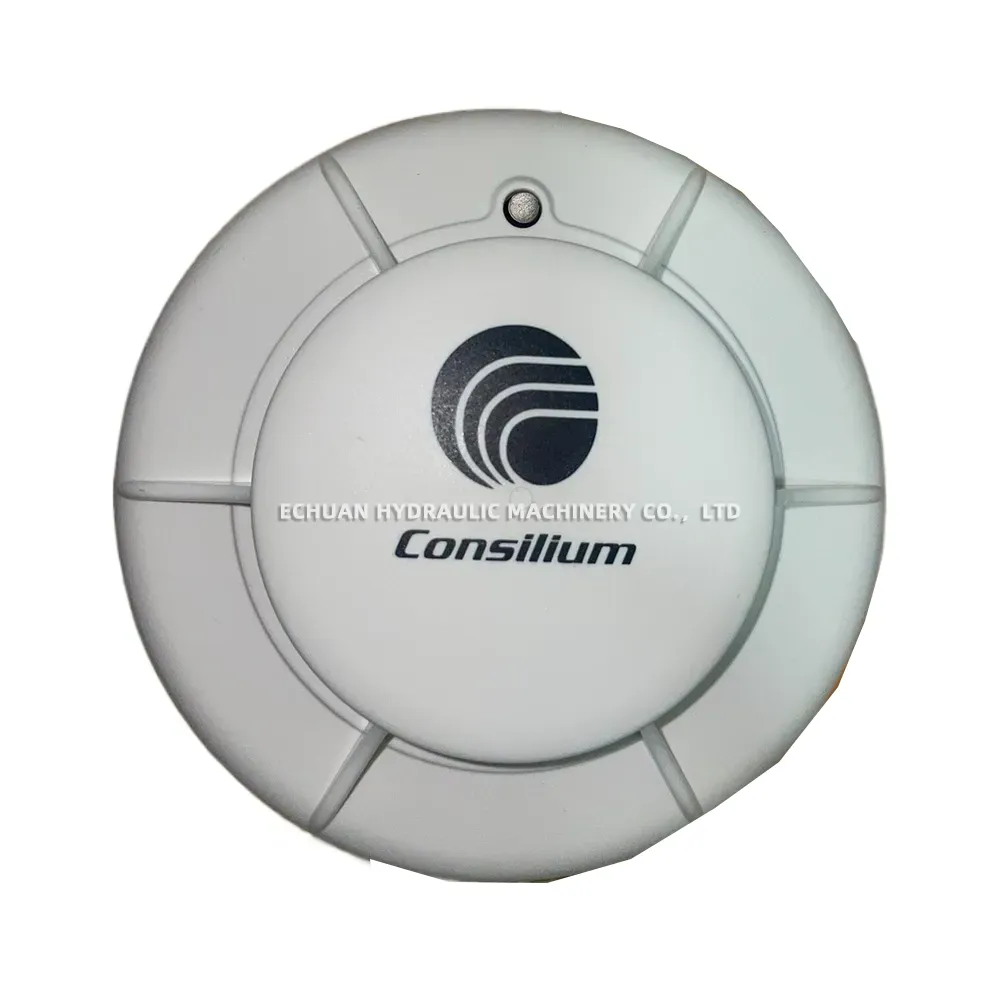

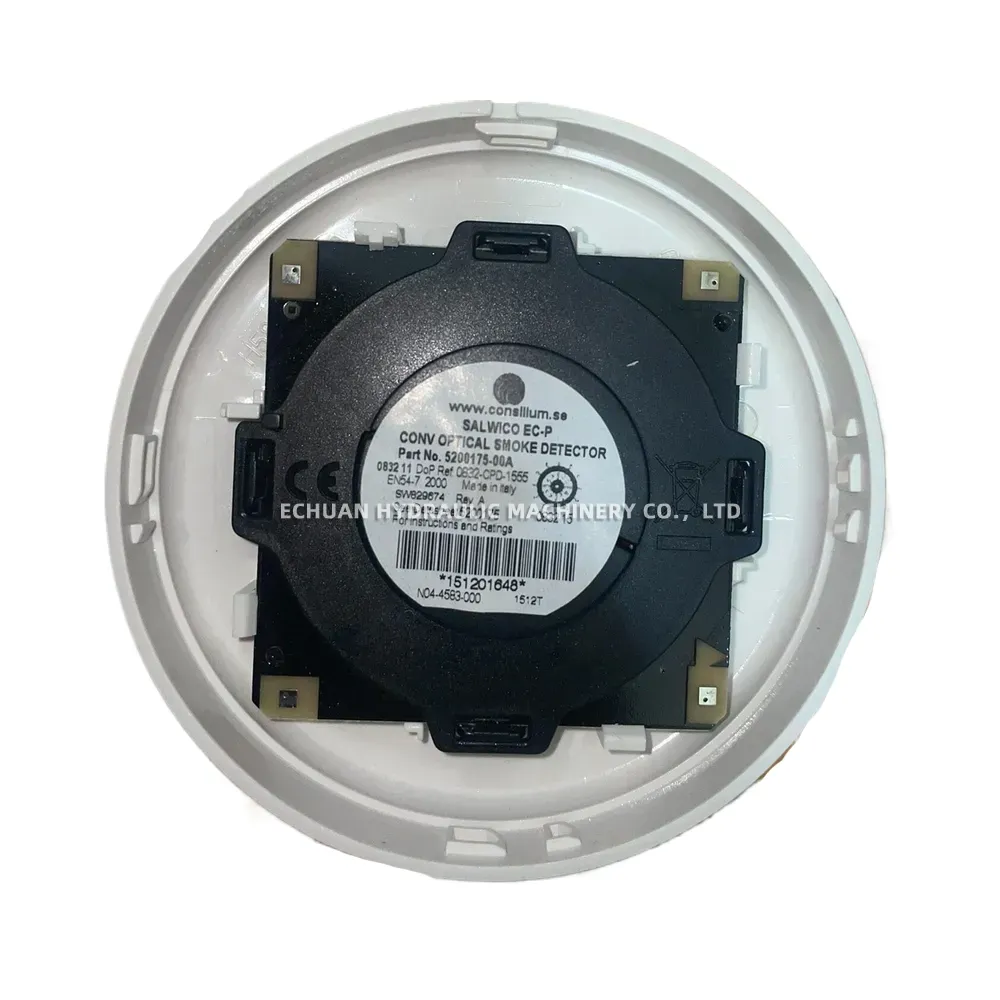

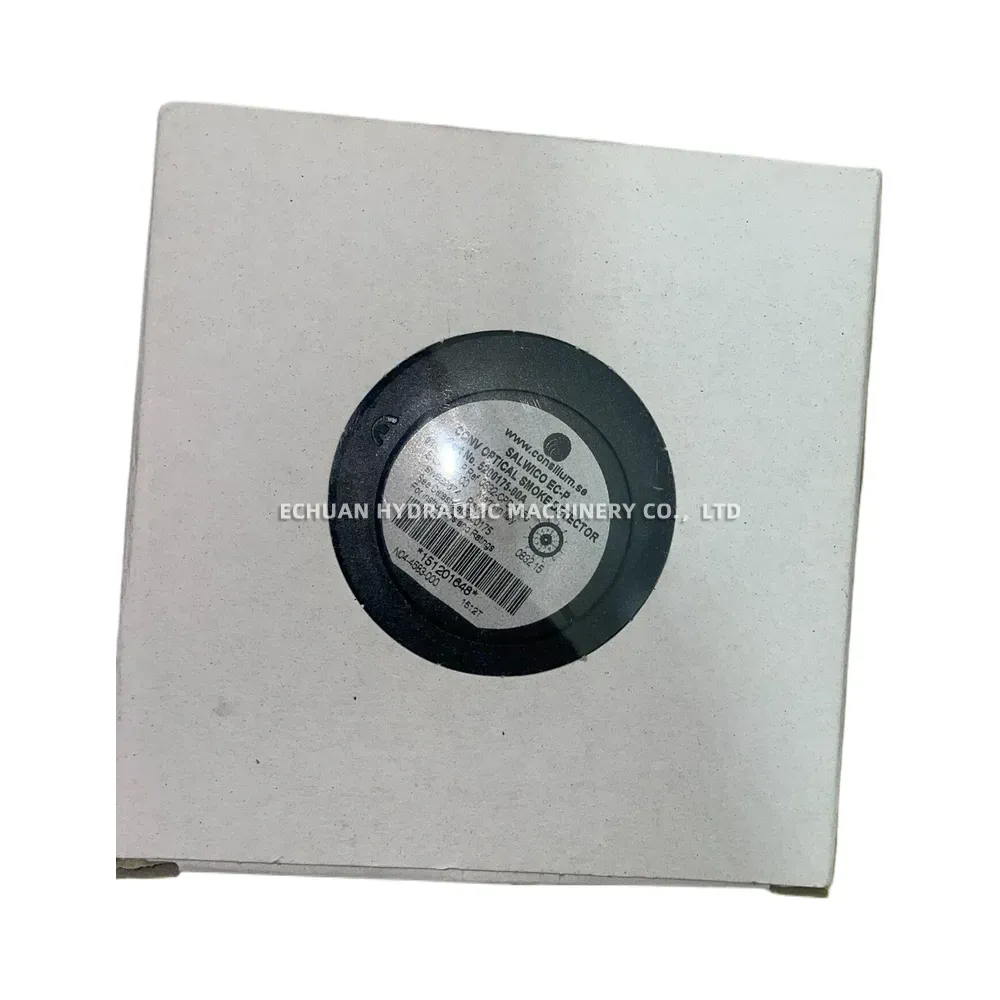

Consilium SALWICO EC-P Optical Smoke Detector
The Consilium SALWICO EC-P is a high-quality conventional optical smoke detector designed for reliable fire detection in demanding environments. Utilizing a sophisticated optical chamber with a light-scattering principle, it effectively detects visible smoke particles generated by smouldering or slow-burning fires. This detector is engineered for use with conventional fire alarm systems and features a built-in alarm indicator LED. Its robust design ensures stable operation and low maintenance, making it an ideal choice for commercial and marine applications where safety and compliance are paramount.
Technical Specifications:
- Model: SALWICO EC-P
- Part Number: 5200175-00A
- Detection Principle: Optical light scattering
- Operating Voltage: 15-35 VDC
- Supervising Current: Approx. 50 µA at 24 VDC
- Alarm Current: Approx. 30 mA at 24 VDC
- Operating Temperature: -25°C to +70°C
- Ingress Protection: IP44
- Approvals: EN54-7
- Dimensions (Ø x H): 100 x 47 mm (detector only)
Consilium SALWICO EC-P Optical Smoke Detector
Buy the Consilium SALWICO EC-P (5200175-00A), a reliable conventional optical smoke detector. Certified to EN54-7, it’s designed for early detection of smouldering fires in conventional fire alarm systems.
