Product Description

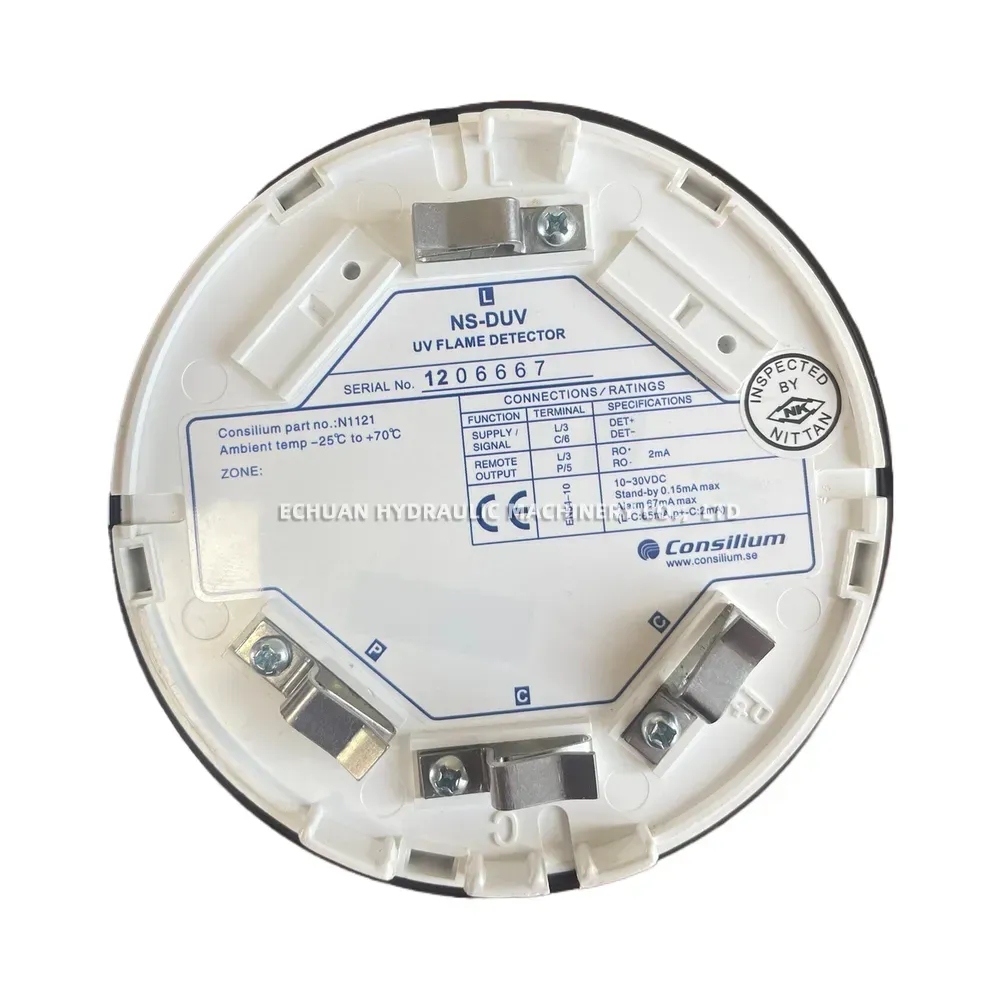

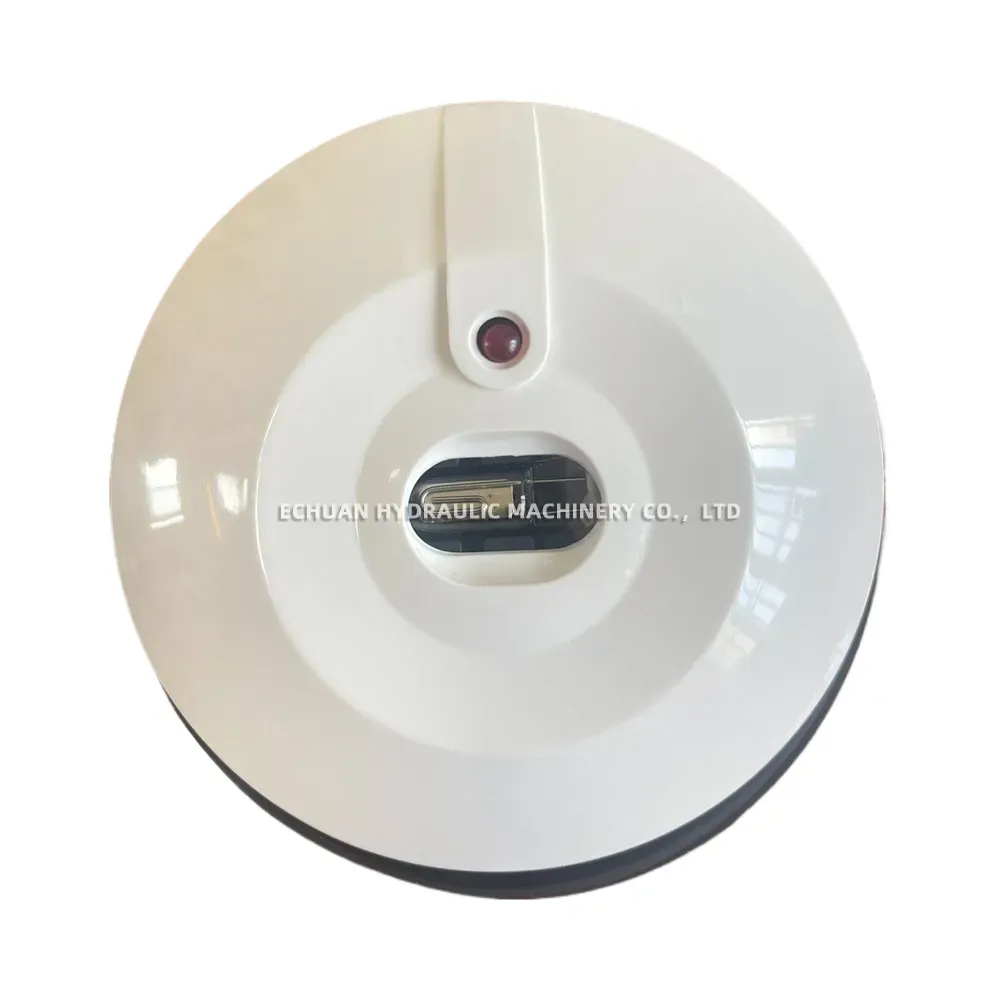

Consilium NS-DUV UV Flame Detector

The Consilium NS-DUV is a high-performance conventional UV flame detector designed for the rapid and reliable detection of flaming fires. It operates by sensing the ultraviolet radiation emitted at the instant of ignition, ensuring a swift response. This detector is engineered for stability and is insensitive to common false alarm sources such as sunlight or fluorescent lighting. Its robust design and wide operating temperature range make it an excellent choice for demanding environments, including industrial and marine applications, where safety and performance are critical. The NS-DUV is fully compliant with the EN54-10 standard for flame detectors.

Technical Specifications:

  • Model: NS-DUV

  • Part Number: N1121

  • Operating Voltage: 10-30VDC

  • Stand-by Current: 0.15mA max

  • Alarm Current: 67mA max

  • Ambient Temperature Range: -25°C to +70°C

  • Remote Output: 2mA

  • Standard Compliance: EN54-10

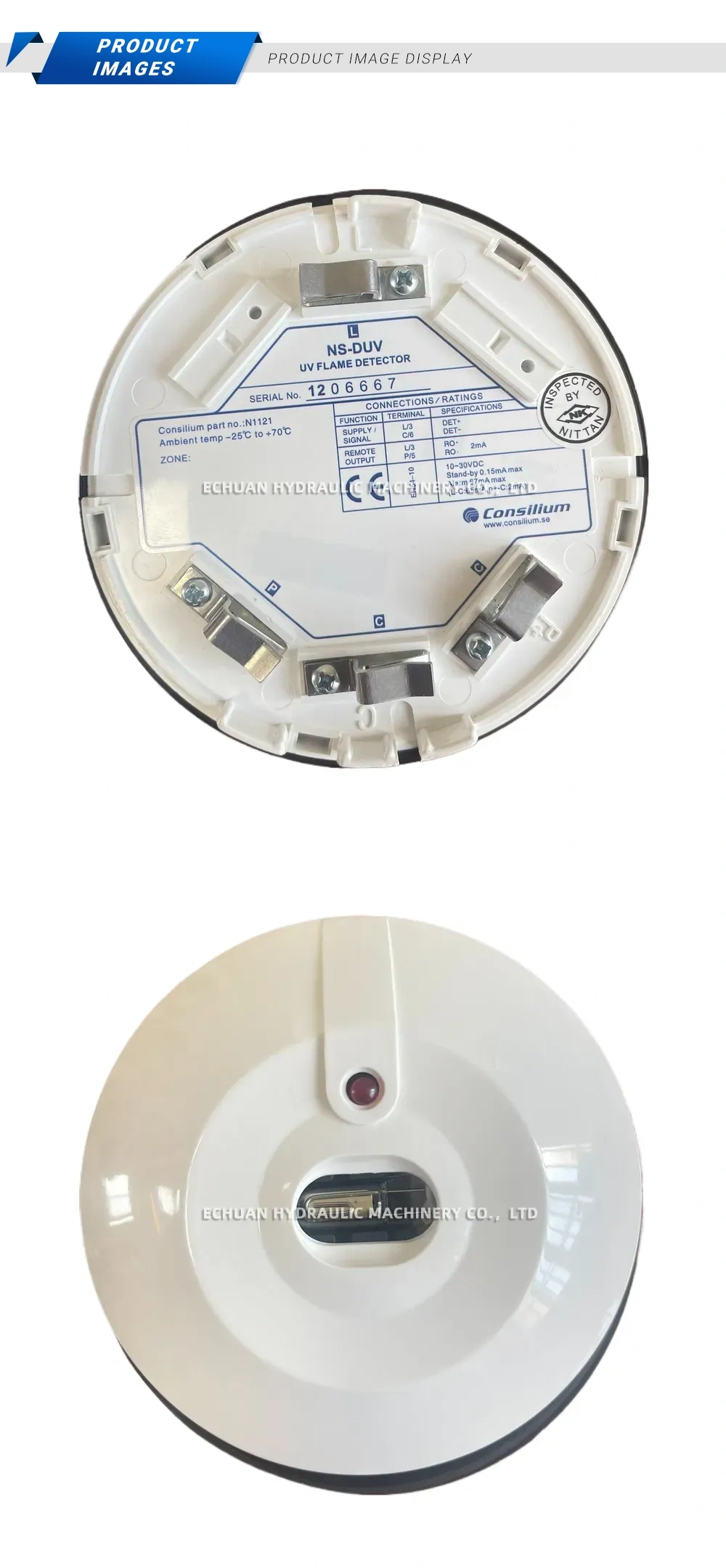

Consilium NS-DUV UV Flame Detector Description

Consilium NS-DUV UV Flame Detector

Discover the Consilium NS-DUV UV Flame Detector (N1121), an EN54-10 certified sensor for fast and reliable fire detection. Ideal for conventional systems in industrial and marine environments, offering a wide voltage and temperature range.

BrandConsilium
ModelNS-DUV
CategoryOther products
