Product Description

Consilium Salwico EV-PP OA120 Smoke Heat Detector

The Consilium Salwico EV-PP OA120 is an advanced analogue addressable detector designed for comprehensive fire safety. It functions as a combined optical smoke and heat detector, utilizing sophisticated algorithms to provide early and reliable fire detection while minimizing the risk of false alarms. This versatile unit is suitable for a wide range of applications, especially in demanding environments. It features a remote output for external indicators and is engineered for seamless integration with Consilium Salwico fire alarm systems, ensuring robust performance and compliance with major international standards.

Technical Specifications:

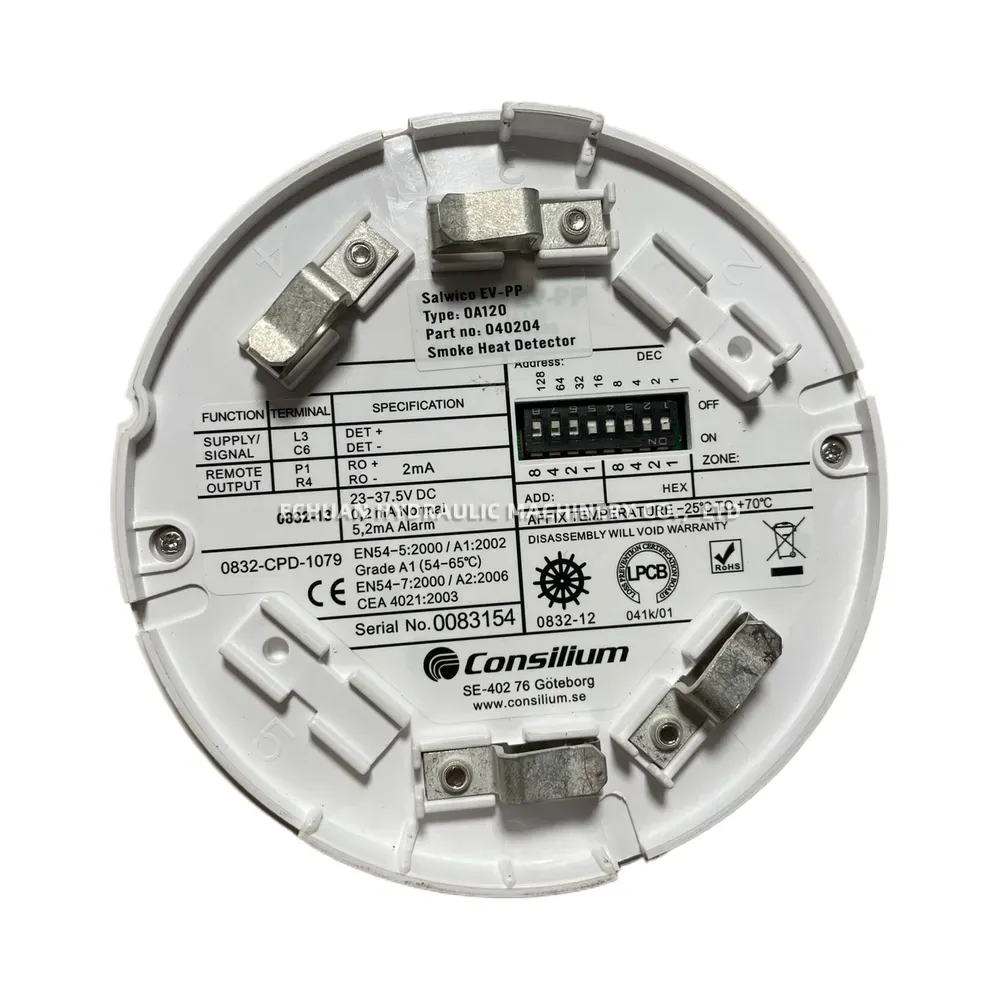

  • Model: Salwico EV-PP / Type OA120

  • Part Number: 040204

  • Operating Voltage: 23-37.5V DC

  • Current Consumption: 0.2 mA (Normal) / 5.2 mA (Alarm)

  • Remote Output: 2 mA

  • Temperature Classification: Grade A1 (54-65°C)

  • Operating Temperature Range: -25°C to +70°C

  • Approvals & Standards: EN54-5:2000/A1:2002, EN54-7:2000/A2:2006, CEA 4021:2003

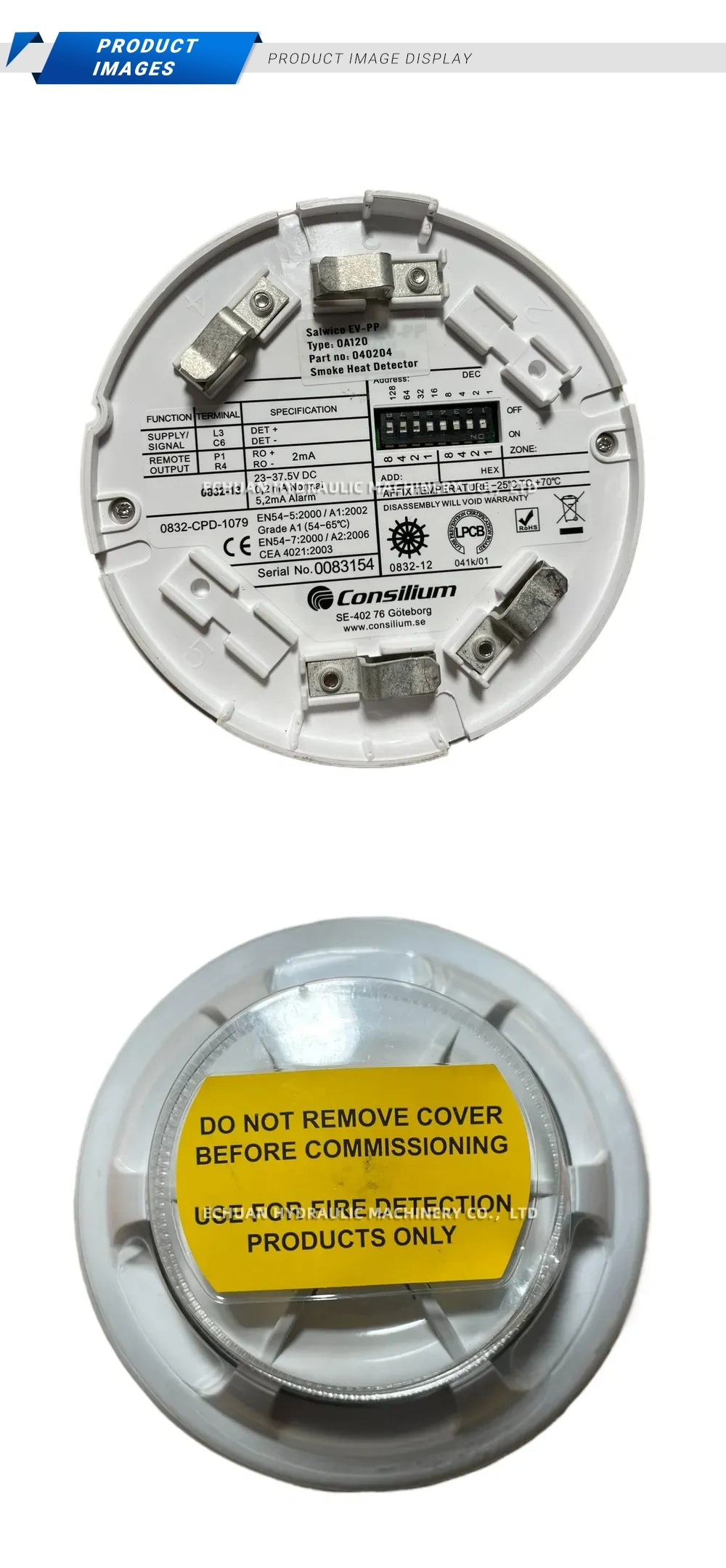

Consilium Salwico EV-PP OA120 Smoke Heat Detector Description

Consilium Salwico EV-PP OA120 Smoke Heat Detector

Buy the Consilium Salwico EV-PP OA120 (Part no: 040204), a reliable analogue addressable combined smoke and heat detector for advanced fire detection systems. Features remote output and complies with EN54 standards.
