Product Description

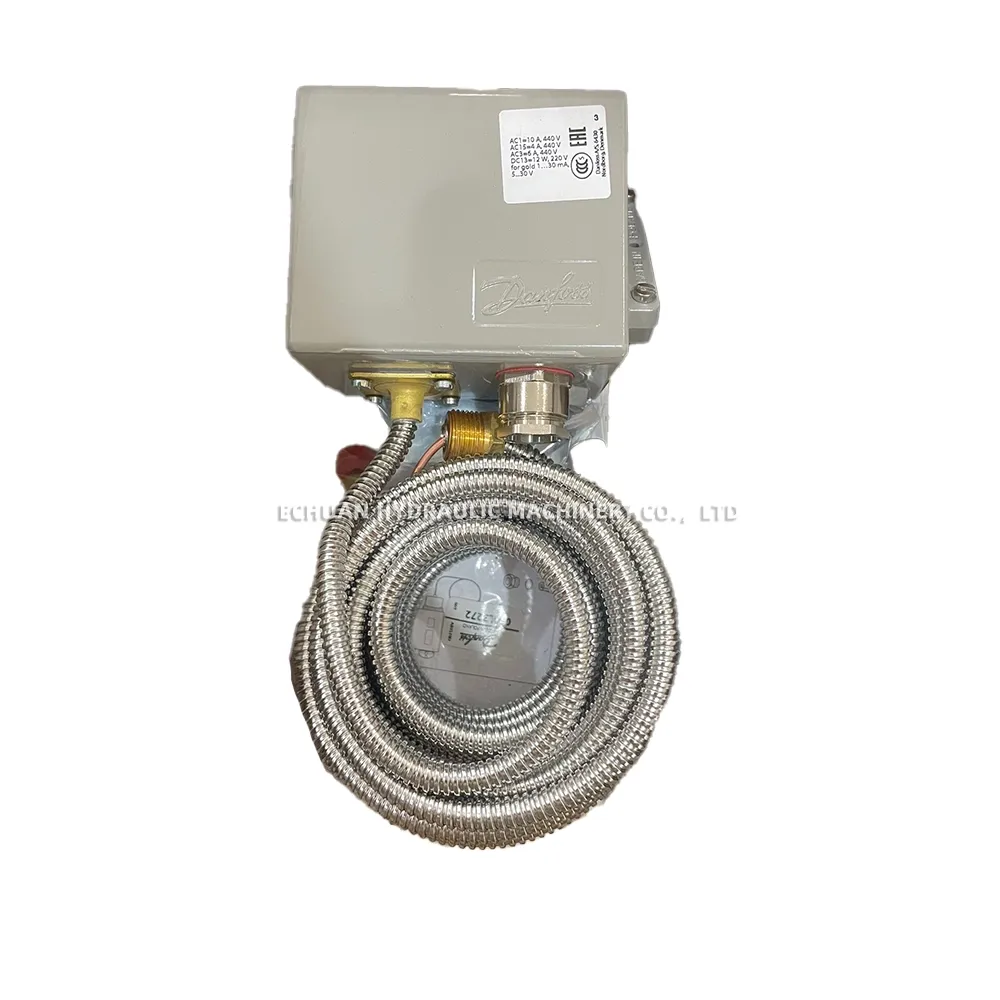

Danfoss 060L313066 KPS 80 Thermostat
The Danfoss 060L313066 is a robust thermostat from the KPS 80 series, engineered for demanding industrial applications. Renowned for its high resistance to shock and vibration, this thermostat is perfectly suited for monitoring, control, and alarm systems in harsh environments. The unit features a wide temperature range from +70 to +120°C and gold-plated SPDT contacts, ensuring reliable and precise switching even in low-load applications. Its remote bulb sensor, connected via a 5-meter armoured capillary tube, allows for flexible installation and accurate temperature sensing at a distance from the main unit. The rugged IP67 enclosure guarantees protection against dust and water ingress, making the KPS 80 a dependable choice for marine, industrial, and mobile equipment.
Technical Specifications:
- Model Number: 060L313066
- Series: KPS 80
- Temperature Range: +70°C to +120°C
- Differential: 4.5 / 18°C
- Contact Type: SPDT (Single Pole Double Throw)
- Contact Material: Gold-plated
- Sensor Type: Remote bulb with 5-meter armoured capillary tube
- Remote Bulb Dimensions: 1/2 x 3 1/2 inches
- Reset Type: Automatic
- Enclosure Rating: IP67
Danfoss 060L313066 Thermostat
Order the Danfoss 060L313066 KPS 80 industrial thermostat, featuring a +70 to +120°C range, 5m armoured capillary tube, and reliable SPDT gold contacts. Built for harsh environments with high vibration and shock resistance.
