Product Description

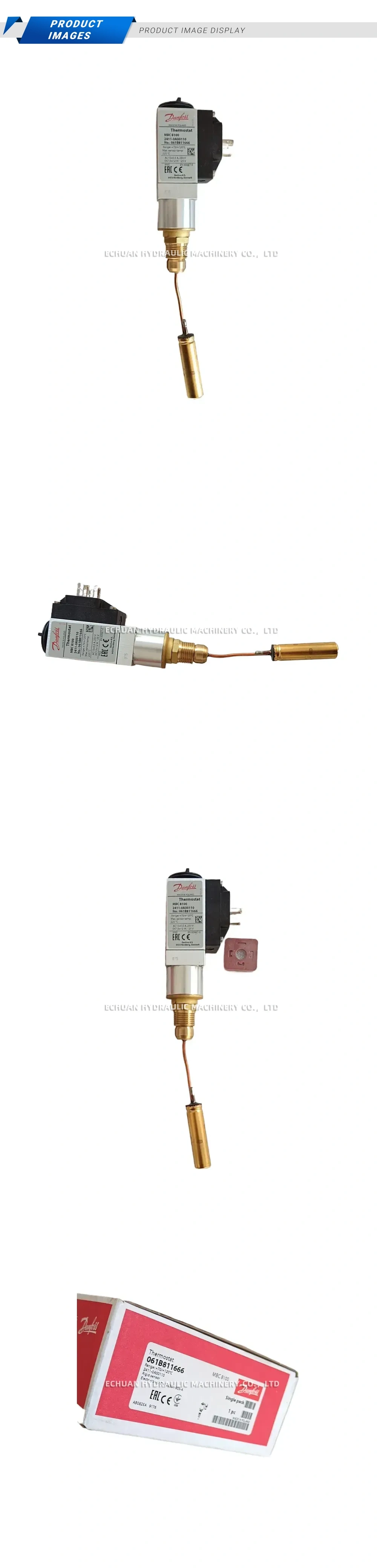

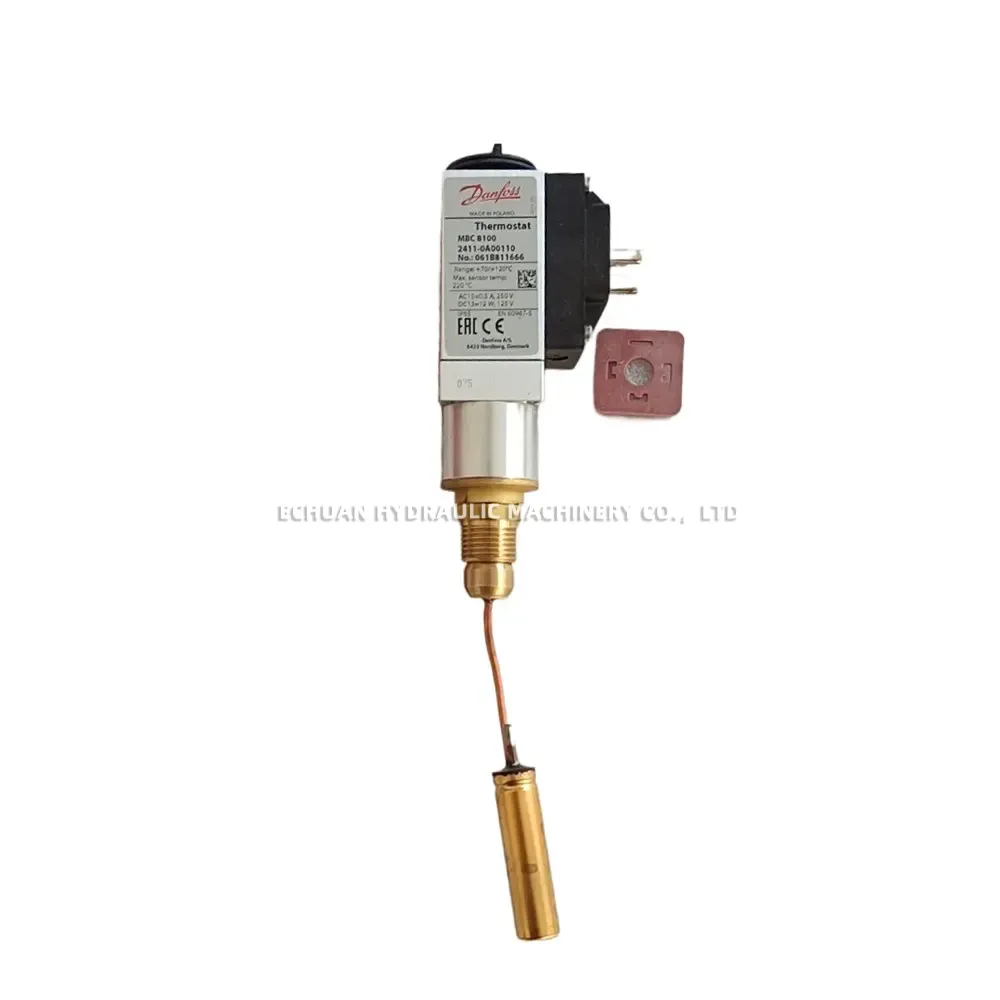

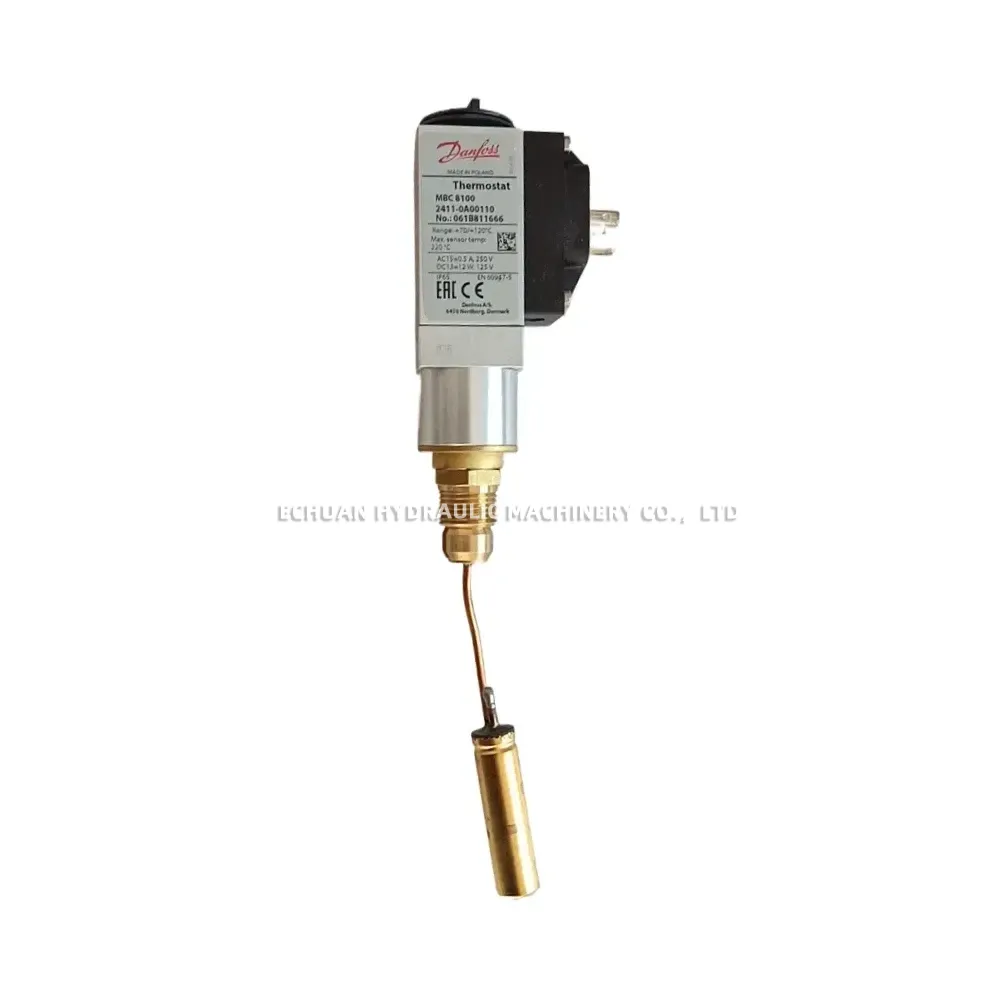

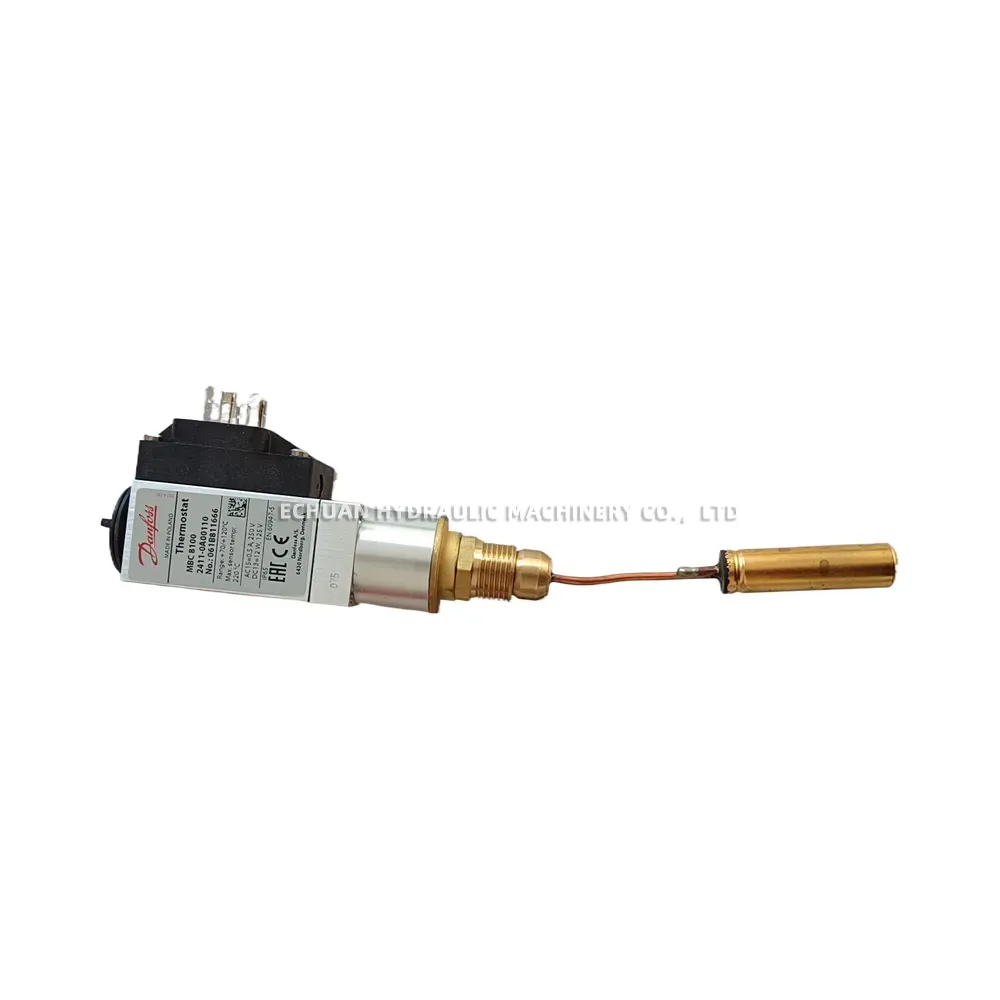

Danfoss MBC 8100 Thermostat
The Danfoss MBC 8100 is a compact, block-type thermostat designed for reliable performance in demanding industrial and marine applications. Engineered for durability, it operates effectively in harsh environments where space and reliability are critical factors. This model features a rigid sensor bulb and capillary tube, providing precise temperature control within a range of +70 to +120°C. With a high maximum sensor temperature of 220°C and robust electrical ratings, the MBC 8100 is an ideal solution for monitoring and regulating temperatures in machinery, hydraulic systems, and other heavy-duty equipment, ensuring operational safety and efficiency.
Technical Specifications:
- Model: MBC 8100
- Part Number: 061B811666
- Temperature Range: +70 to +120°C
- Maximum Sensor Temperature: 220°C
- Sensor Type: Rigid sensor bulb and capillary tube
- AC Electrical Rating: AC-15, 0.5 A / 250 V
- DC Electrical Rating: DC-13, 12 W / 125 V
- Electrical Connection: EN 175301-803-A
Danfoss MBC 8100 Thermostat
Buy the Danfoss MBC 8100 Thermostat (061B811666), a heavy-duty temperature switch for industrial use. Features a +70 to +120°C range, 220°C max sensor temp, and a rigid sensor for reliable temperature control in harsh environments.
| Brand | DANFOSS |
|---|---|
| Model | MBC 8100 |
| Part No. | 994257986298 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbc-8100-thermostat |
