Product Description

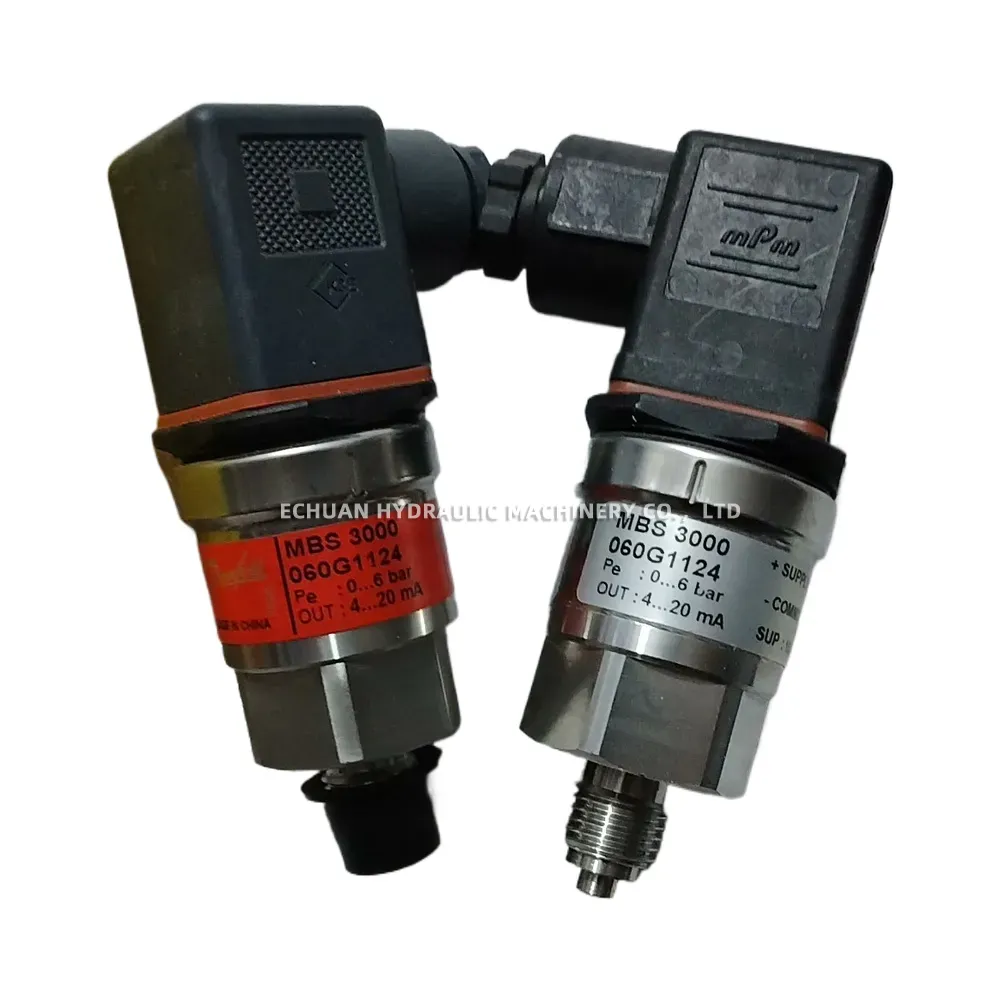

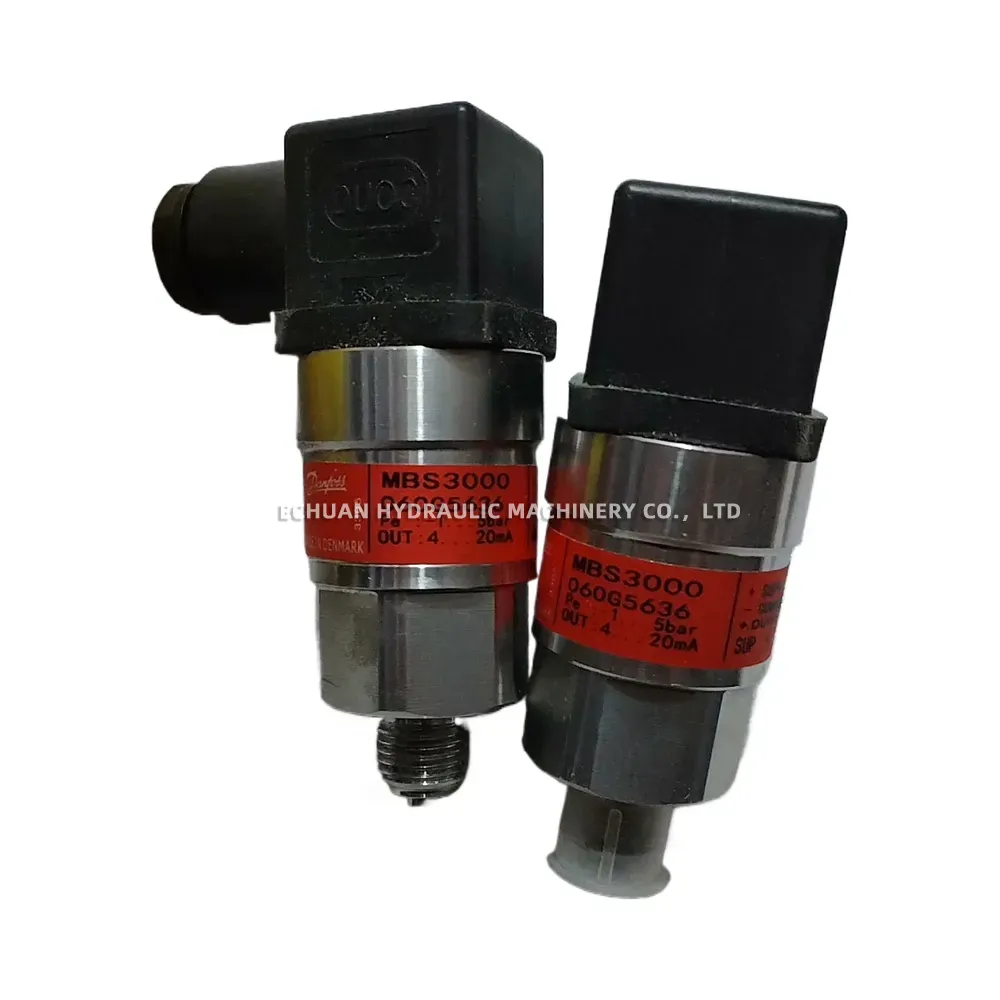

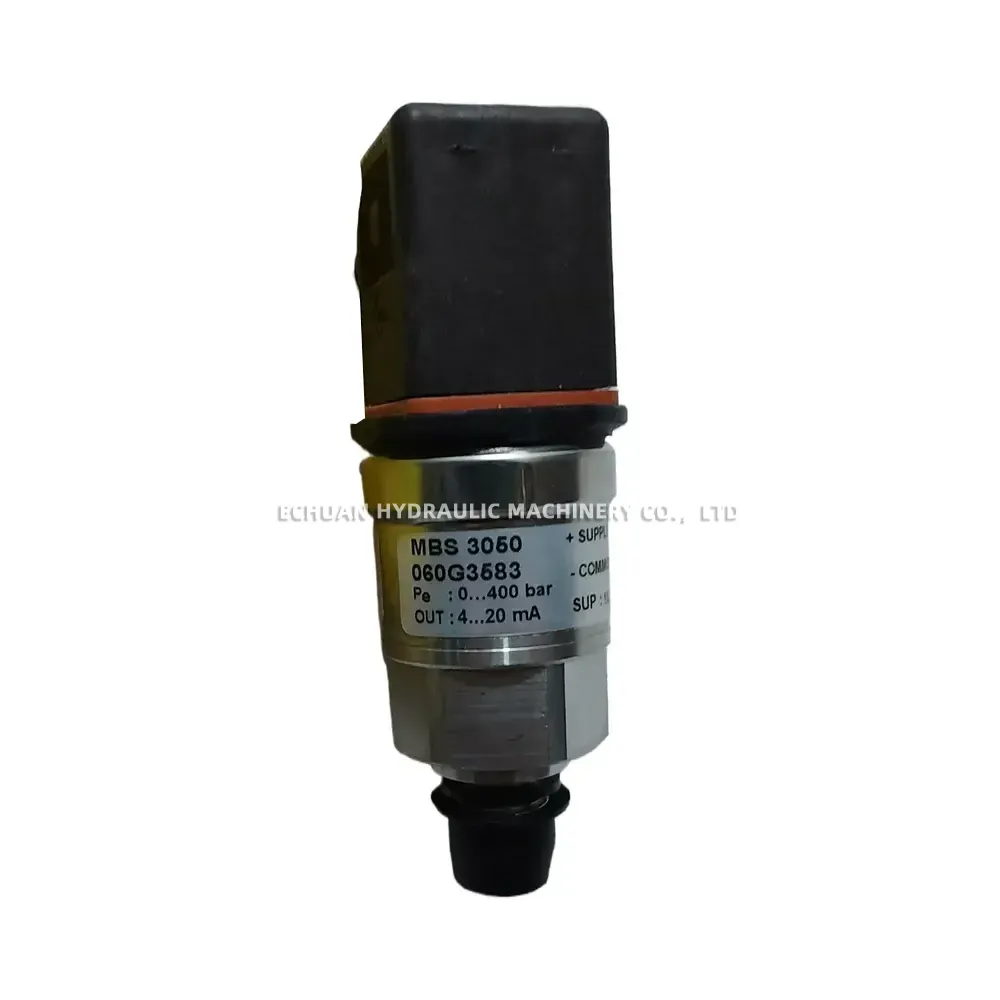

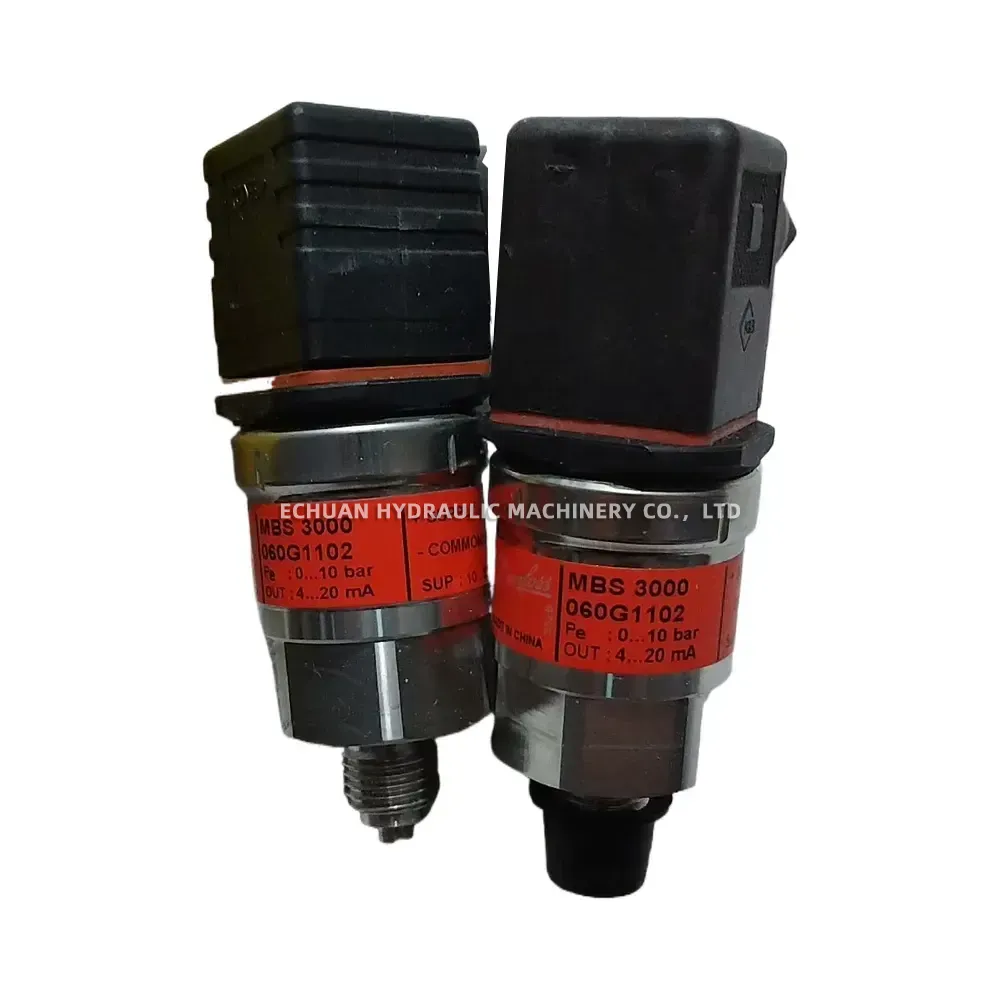

Danfoss MBS 3000 / MBS 3050 Pressure Transmitter

The Danfoss MBS 3000 and MBS 3050 compact pressure transmitters are engineered for use in almost all industrial applications, delivering reliable pressure measurement even under harsh environmental conditions. The MBS 3000 series features a highly robust standard design, while the MBS 3050 includes an integrated pulse-snubber specifically designed to protect the sensor against severe medium influences such as cavitation, liquid hammer, or sudden pressure peaks. Both models provide a highly accurate 4 to 20 mA output signal and are equipped with standard DIN plug connectors for straightforward electrical installation. Featuring excellent vibration stability, high-grade stainless steel construction, and versatile pressure measuring ranges, these transmitters ensure optimal, long-lasting performance in hydraulic systems, air compressors, industrial pumps, and heavy machinery.

Technical Specifications:

  • Brand: Danfoss

  • Model Series: MBS 3000 / MBS 3050

  • Output Signal: 4 – 20 mA (2-wire)

  • Pressure Ranges (Pe): -1…5 bar, 0…6 bar, 0…10 bar, 0…400 bar (varies by specific model)

  • Electrical Connection: DIN plug connector (EN 175301-803-A)

  • Reference Part Numbers: 060G1124 (0-6 bar), 060G3583 (0-400 bar), 060G1102 (0-10 bar), 060G5636 (-1-5 bar)

  • Special Feature (MBS 3050): Integrated pulse-snubber for protection against pressure spikes and cavitation

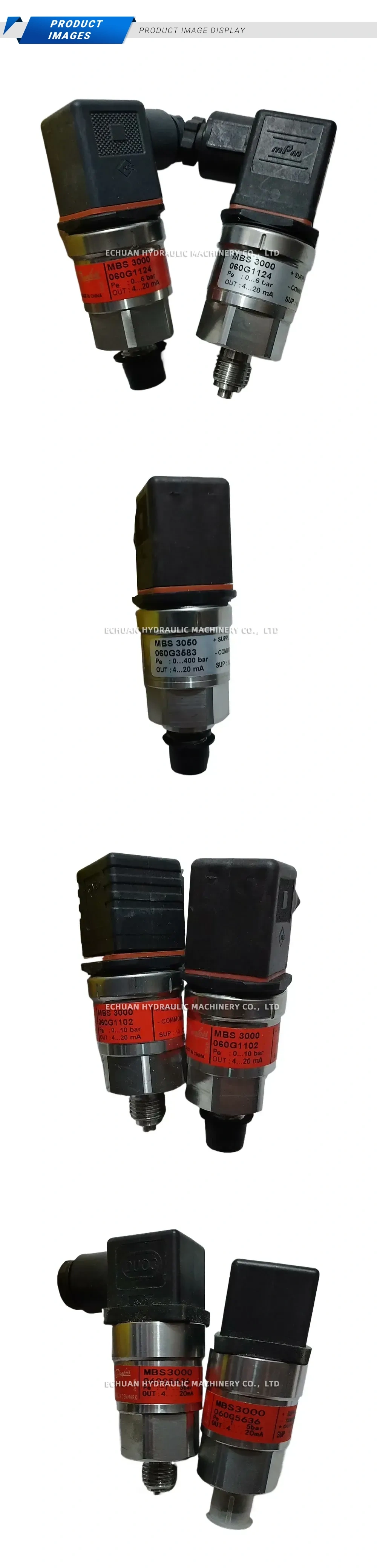

Danfoss MBS 3000 / MBS 3050 Pressure Transmitter Description

Danfoss MBS 3000 / MBS 3050 Pressure Transmitter

Shop genuine Danfoss MBS 3000 and MBS 3050 industrial pressure transmitters. Engineered for harsh environments, these durable sensors offer a reliable 4-20mA output, standard DIN connectors, and versatile pressure ranges from -1 to 400 bar. Perfect for hydraulics, pumps, and compressors.

BrandDANFOSS
ModelMBS 3000 / MBS 3050
Part No.706532482005
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/danfoss-mbs-3000-mbs-3050-pressure-transmitter
