Product Description

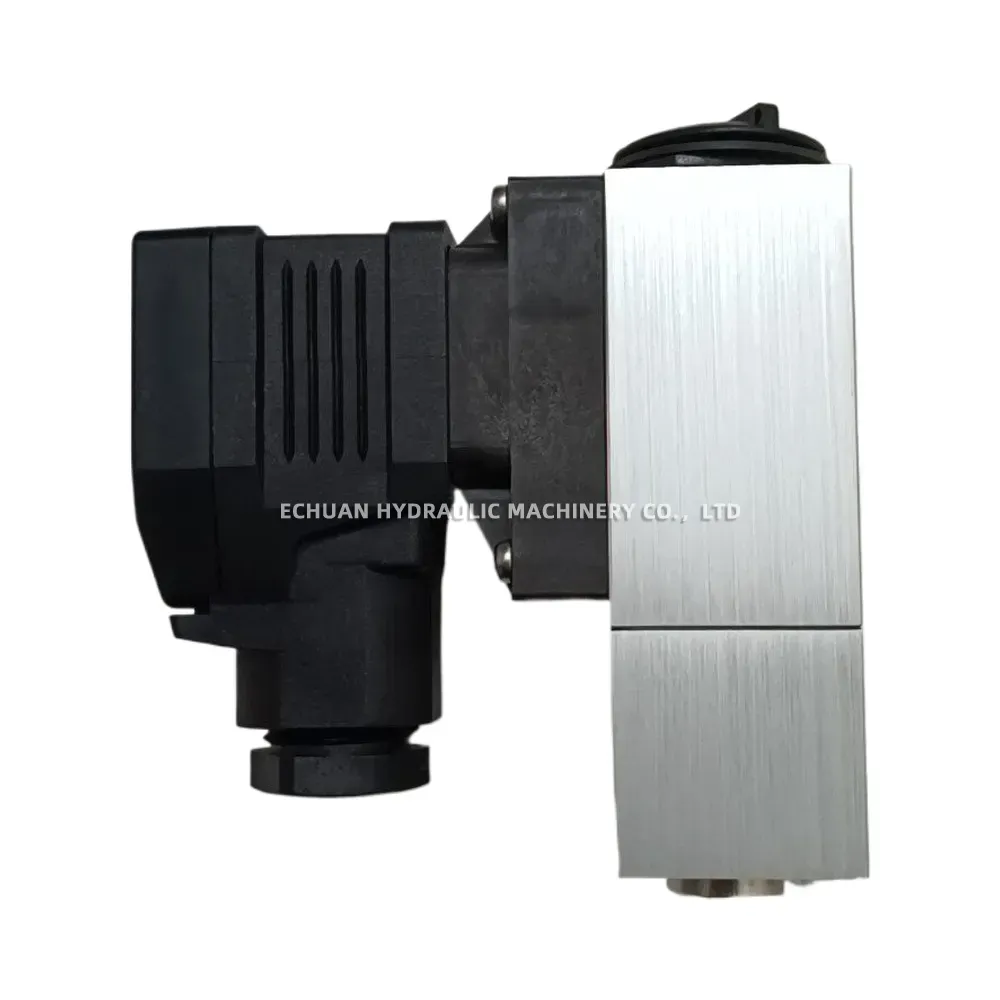

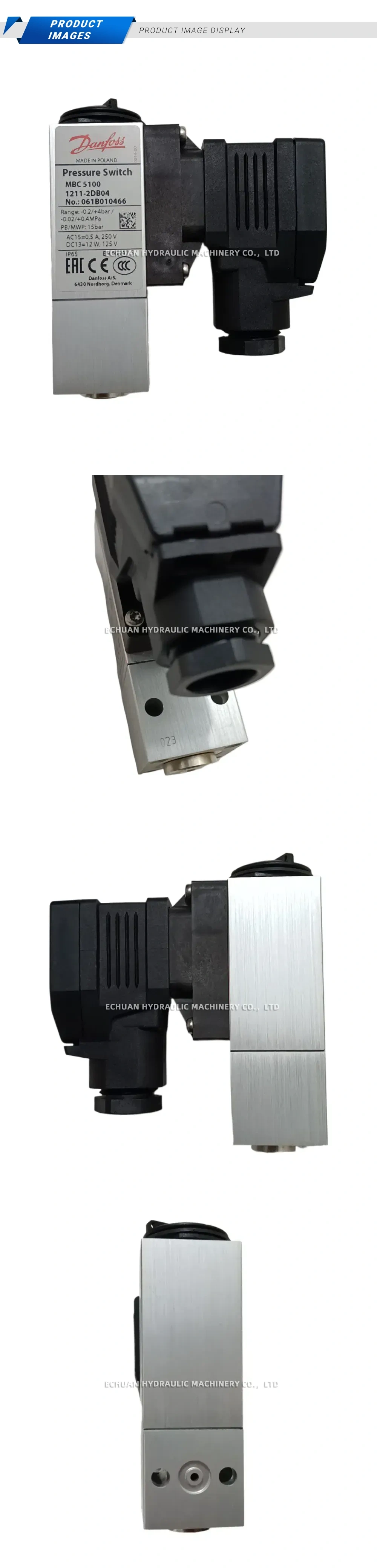

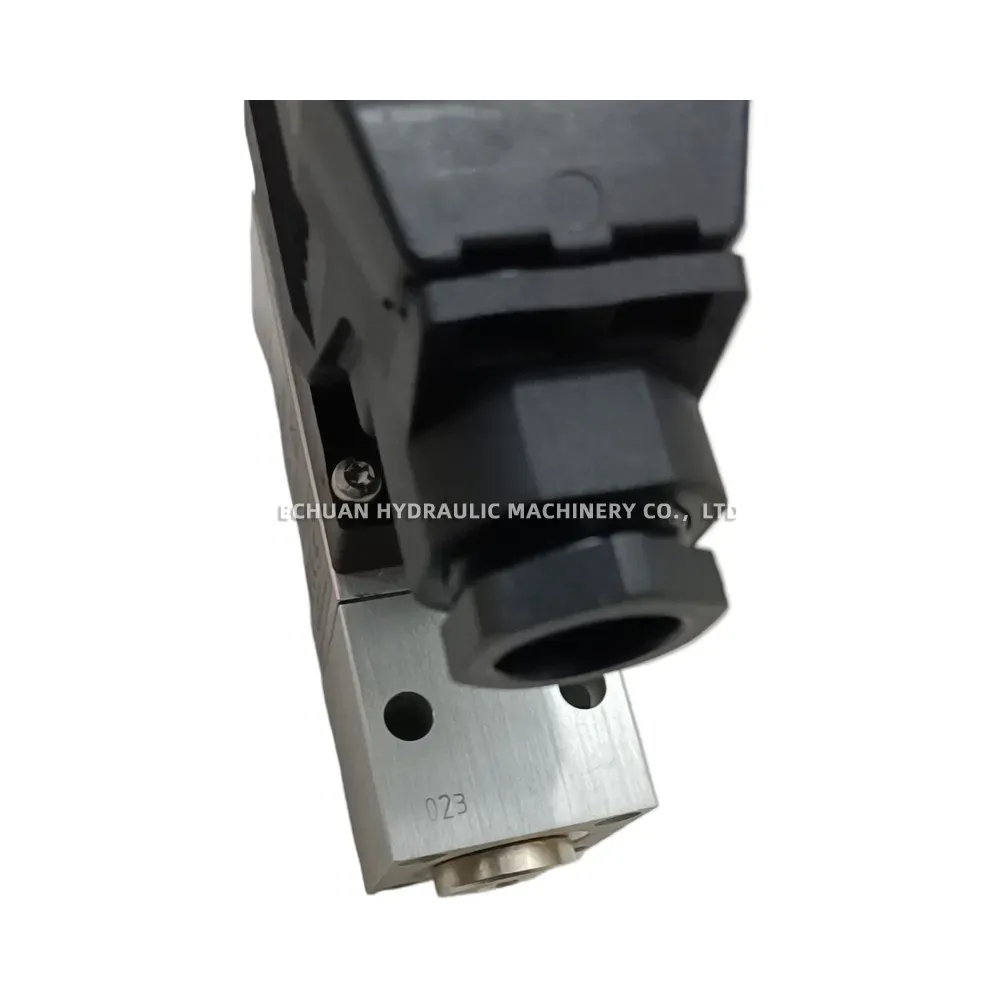

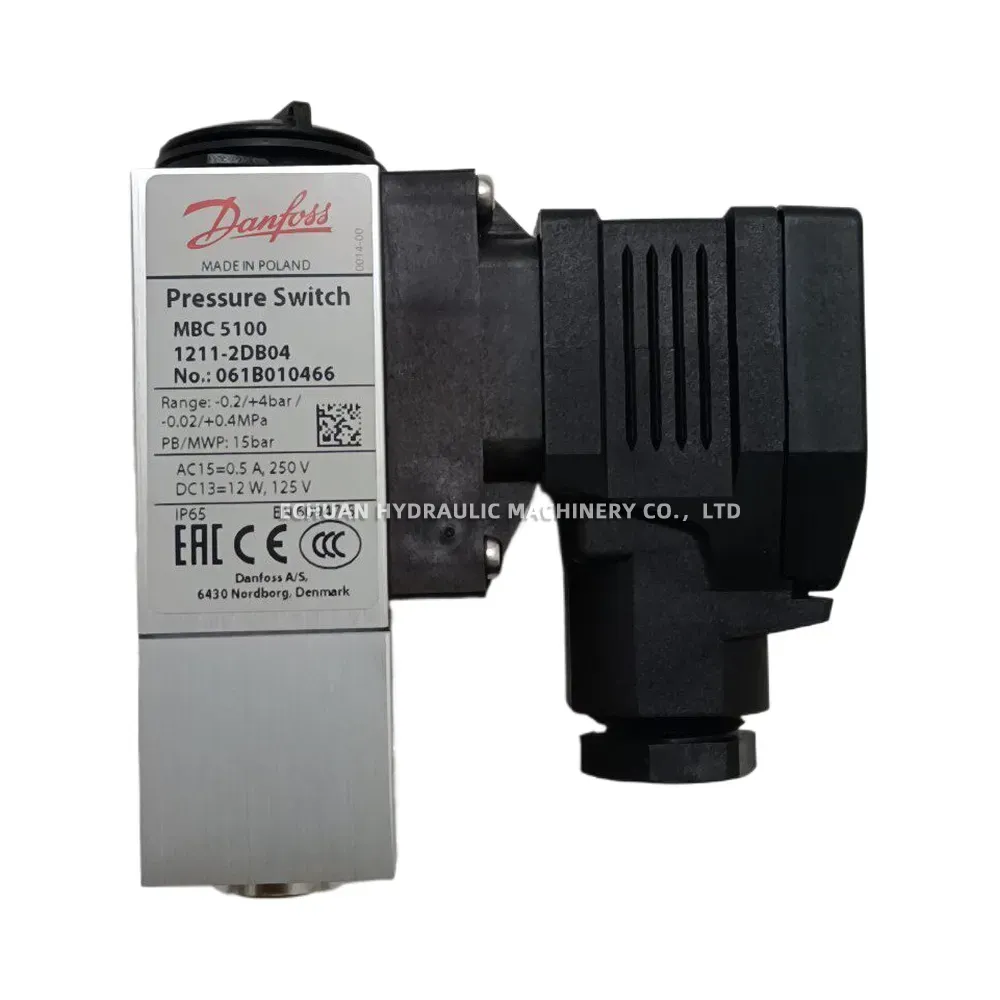

Danfoss MBC 5100 1211-2DB04 Pressure Switch
The Danfoss MBC 5100 1211-2DB04 (part number 061B010466) is a highly reliable, compact pressure switch designed for demanding marine and industrial applications. Built to withstand harsh environments, it offers precise pressure monitoring with an adjustable range of -0.2 to +4 bar (-0.02 to +0.4 MPa) and a maximum working pressure (PB/MWP) of 15 bar. Featuring an IP65 protection rating, robust electrical contacts, and compliance with the EN 60947-5 standard, this block-type pressure switch ensures exceptional durability, safety, and performance in critical fluid and pneumatic control systems.
Technical Specifications:
- Brand: Danfoss
- Model: MBC 5100 1211-2DB04
- Part Number: 061B010466
- Pressure Range: -0.2 to +4 bar (-0.02 to +0.4 MPa)
- Maximum Working Pressure (PB/MWP): 15 bar
- Electrical Ratings: AC15 = 0.5 A at 250 V, DC13 = 12 W at 125 V
- Protection Class: IP65
- Standard Compliance: EN 60947-5
- Certifications: EAC, CE, CCC
- Country of Origin: Made in Poland
Danfoss MBC 5100 1211-2DB04 Pressure Switch
Optimize your industrial and marine fluid control systems with the Danfoss MBC 5100 1211-2DB04 Pressure Switch (061B010466). This compact, IP65-rated switch features a -0.2 to +4 bar pressure range and a 15 bar max working pressure, ensuring reliable performance, precise monitoring, and safety in harsh environments.
