Product Description

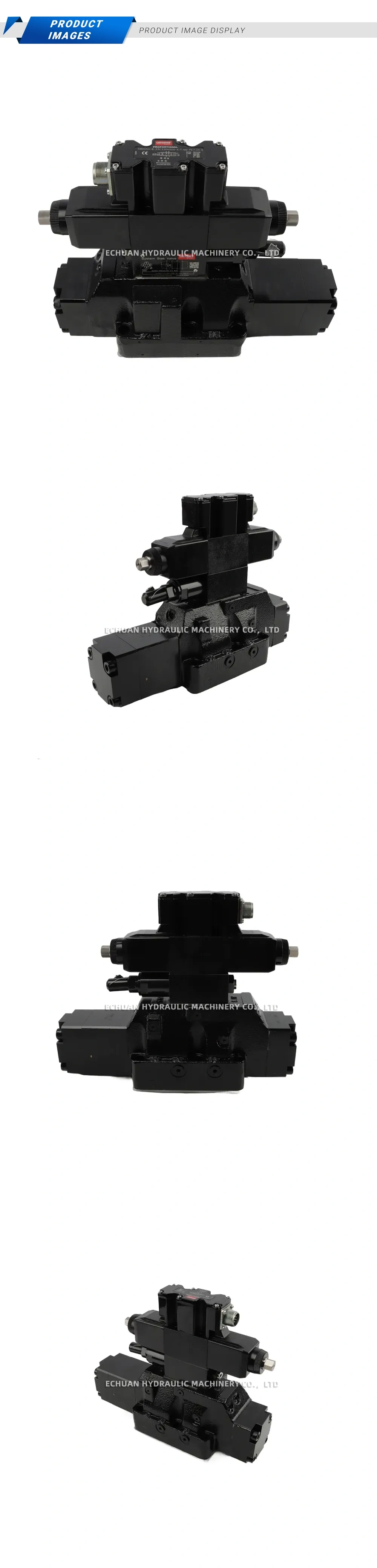

Danfoss KBDG5V-8-33C330N200-X-T-M2-PE7-H1-11
The Danfoss KBDG5V-8-33C330N200-X-T-M2-PE7-H1-11 is a high-performance proportional directional control valve designed for demanding industrial hydraulic applications. Featuring integrated onboard electronics (OBE) and a CANopen digital interface, this valve provides precise, repeatable control over flow direction and rate. Its robust construction ensures reliability and a long service life in challenging environments. The CETOP 8 (NG25) mounting interface allows for standardized integration into hydraulic circuits, making it ideal for systems requiring sophisticated motion control, such as in plastics machinery, metal forming, and test equipment.
Technical Specifications:
- Valve Type: Proportional Directional Control Valve with Onboard Electronics
- Mounting Interface: ISO 4401, Size 8 (NG25, CETOP 8, D08)
- Nominal Flow Rate: 330 L/min (87 US gpm)
- Max. Operating Pressure: 200 bar (2900 psi)
- Spool Type: 33C (3-position, spring-centered)
- Control Interface: CANopen Bus
- Electrical Connector: 7-pin male connector
- Manual Override: Included (H1 option)
Danfoss KBDG5V-8-33C330N200-X-T-M2-PE7-H1-11
Shop the Danfoss KBDG5V-8-33C330N200-X-T-M2-PE7-H1-11, a high-performance CETOP 8 (NG25) proportional directional valve with CANopen interface for precise hydraulic flow and direction control.
| Brand | DANFOSS |
|---|---|
| Model | KBDG5V-8-33C330N200-X-T-M2-PE7-H1-11 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/danfoss-kbdg5v-8-33c330n200-x-t-m2-pe7-h1-11 |
