Product Description

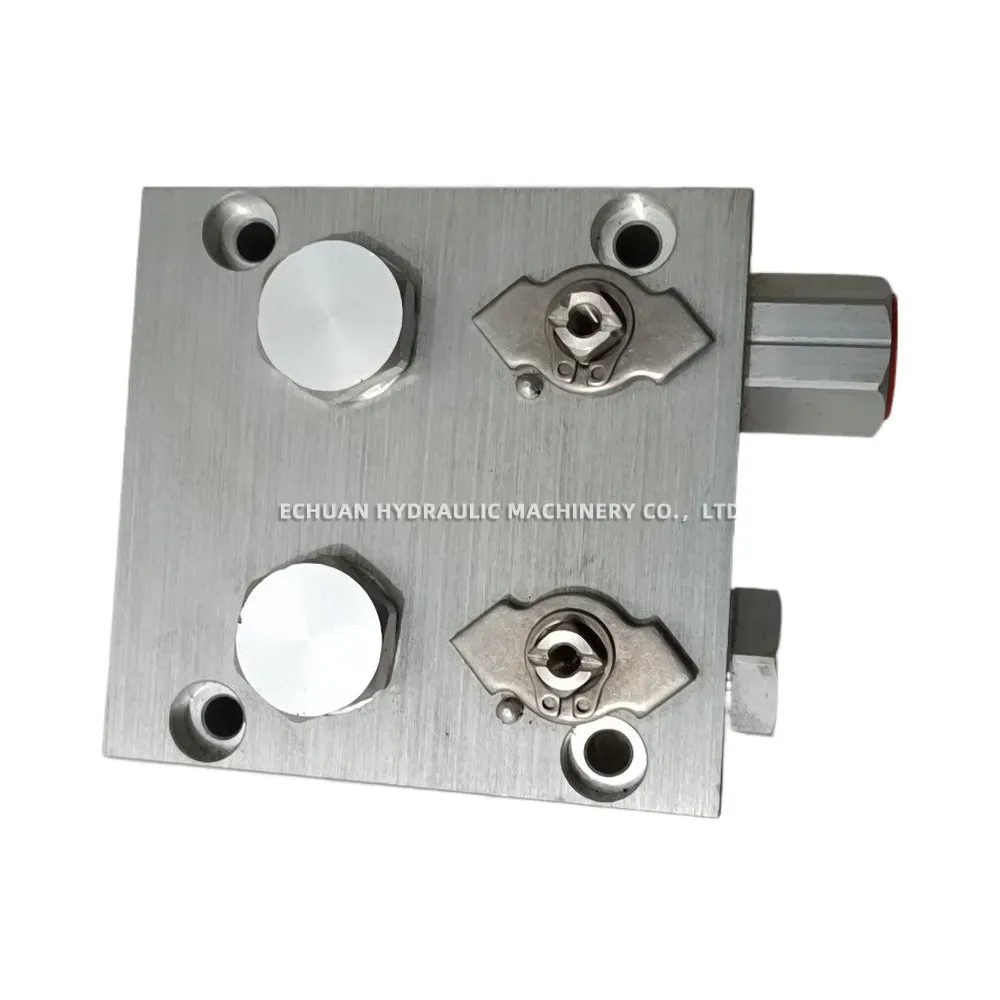

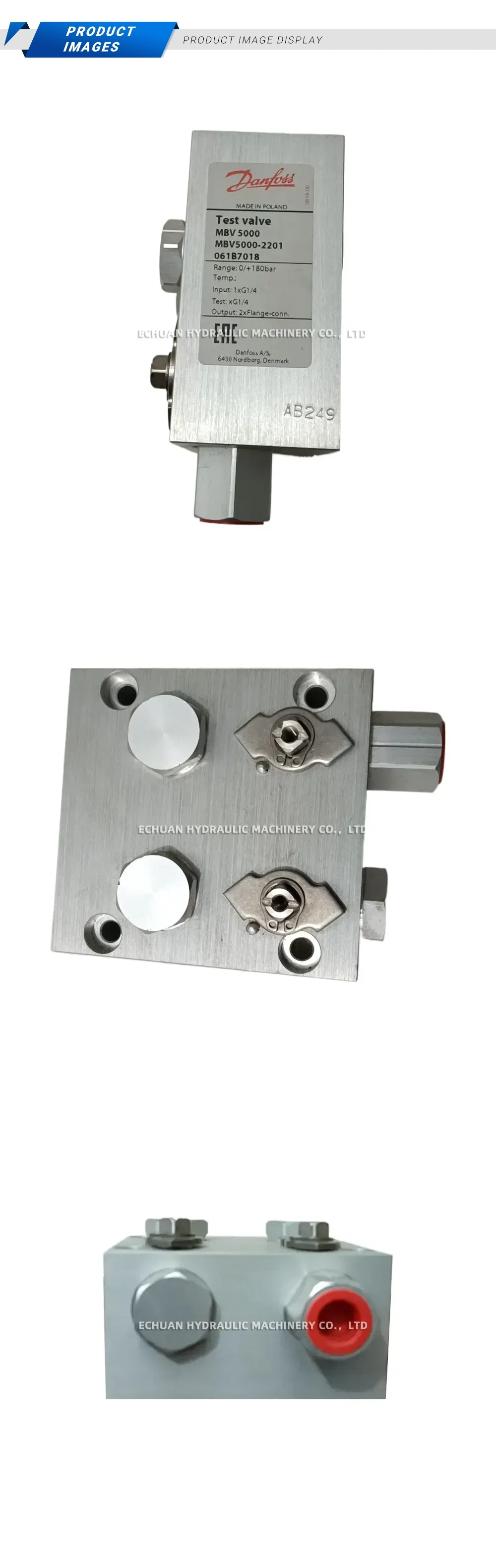

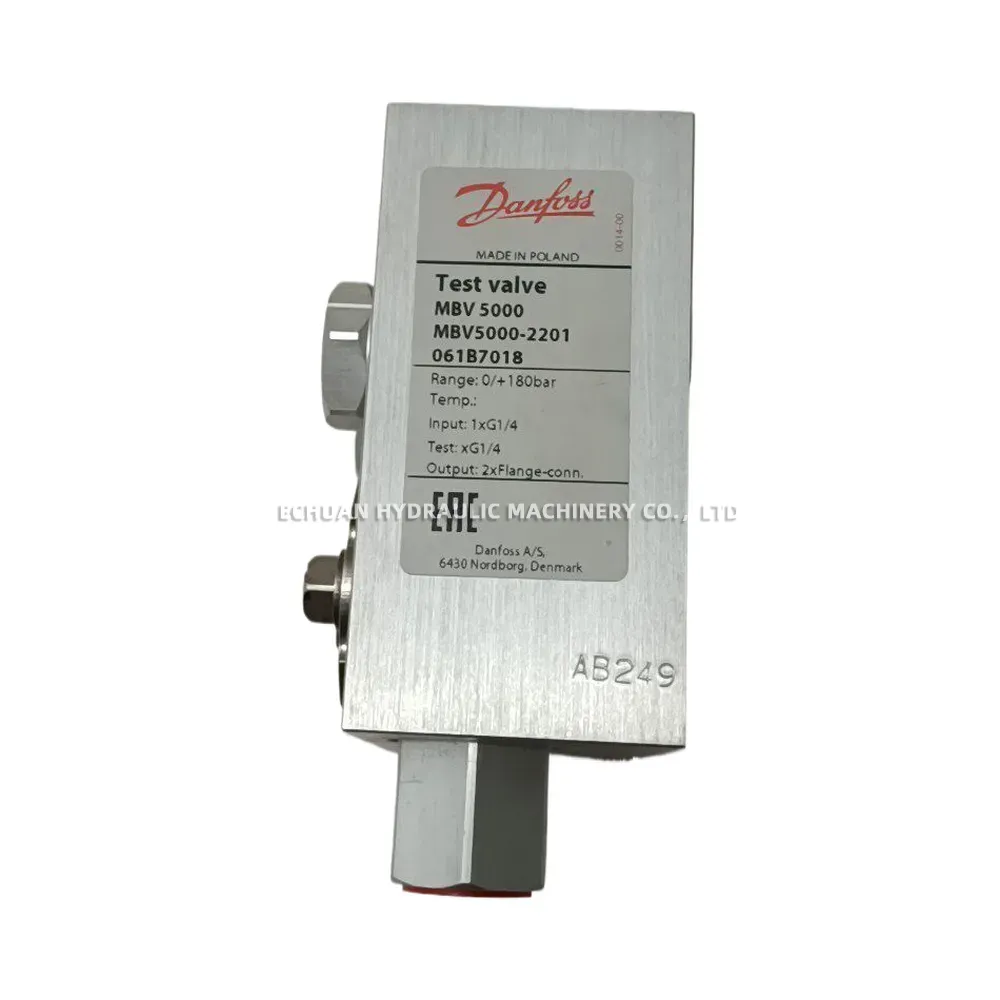

Danfoss MBV5000-2201 Test Valve
The Danfoss MBV 5000 (Model: MBV5000-2201, Part Number: 061B7018) is a premium-grade test valve block designed for the reliable isolation, testing, and connection of pressure transmitters and switches in industrial and marine applications. Built to withstand demanding environments, this robust valve operates efficiently within a wide pressure range of 0 to +180 bar. It features a highly versatile connection layout, including a G 1/4 input, a G 1/4 test connection, and dual flange output connections, ensuring seamless integration into fluid control systems. Manufactured to Danfoss’s rigorous quality standards, it guarantees exceptional durability, precision, and operational safety.
Technical Specifications:
- Brand: Danfoss
- Model: MBV5000-2201 (Part Number: 061B7018)
- Pressure Range: 0 to +180 bar
- Input Connection: 1 x G 1/4
- Test Connection: 1 x G 1/4
- Output Connections: 2 x Flange-connection
- Certifications: EAC
- Country of Origin: Made in Poland (Danfoss A/S, Denmark)
Danfoss MBV5000-2201 Test Valve
Shop the genuine Danfoss MBV5000-2201 (061B7018) Test Valve Block. Engineered for marine and industrial applications, featuring a 0 to 180 bar pressure range, G 1/4 input/test ports, and dual flange outputs for reliable pressure monitoring and isolation.
