Product Description

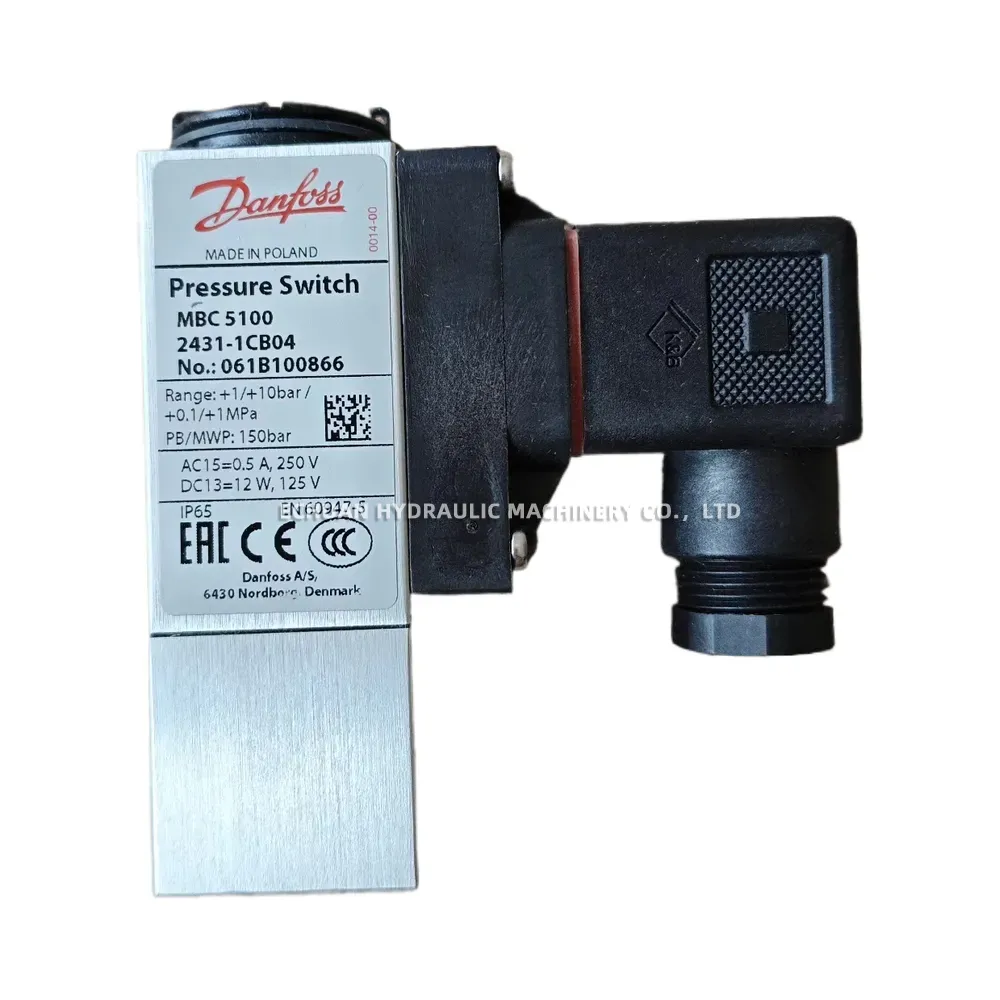

Danfoss MBC 5100 (061B100866) Pressure Switch
The Danfoss MBC 5100 (061B100866) is a highly reliable and compact block-type pressure switch designed specifically to survive in harsh marine and demanding industrial environments. Engineered for exceptional vibration resistance and durability, this switch ensures accurate pressure monitoring and control. It operates within a precise setting range of +1 to +10 bar (+0.1 to +1 MPa) and boasts a high proof pressure (PB/MWP) of 150 bar. Installation is straightforward thanks to its standard G 1/4 pressure connection and DIN plug electrical connection. Built to EN 60947-5 standards with an IP65 enclosure rating, the MBC 5100 delivers uncompromising safety, longevity, and performance for critical applications.
Technical Specifications:
- Brand: Danfoss
- Model: MBC 5100
- Code Number: 061B100866
- Type Designation: 2431-1CB04
- Setting Range: +1 to +10 bar (+0.1 to +1 MPa)
- Proof Pressure (PB/MWP): 150 bar
- Pressure Connection: G 1/4
- Electrical Connection: DIN plug
- Contact Rating: AC15 = 0.5 A, 250 V | DC13 = 12 W, 125 V
- Enclosure Rating: IP65
- Standards & Approvals: EN 60947-5, EAC, CE, CCC
- Country of Origin: Poland
Danfoss MBC 5100 (061B100866) Pressure Switch
Buy the Danfoss MBC 5100 (061B100866) compact pressure switch for marine and industrial applications. Features a +1 to +10 bar range, G 1/4 pressure connection, DIN plug, and IP65 protection for reliable, vibration-resistant performance.
| Brand | DANFOSS |
|---|---|
| Model | MBC 5100 (061B100866) |
| Part No. | 953752466643 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbc-5100-061b100866-pressure-switch |
