Product Description

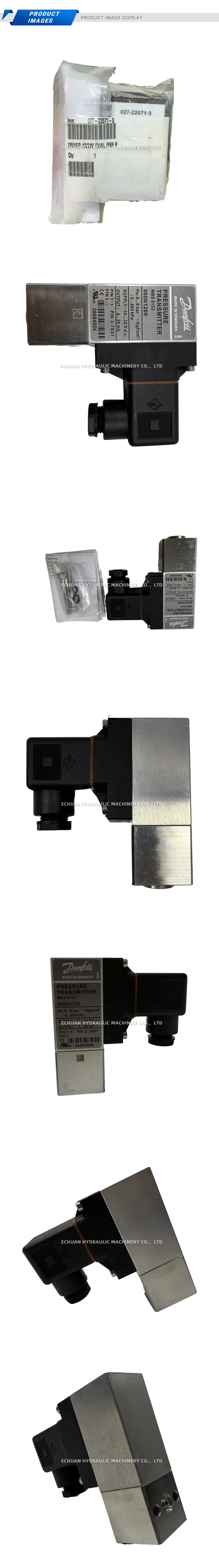

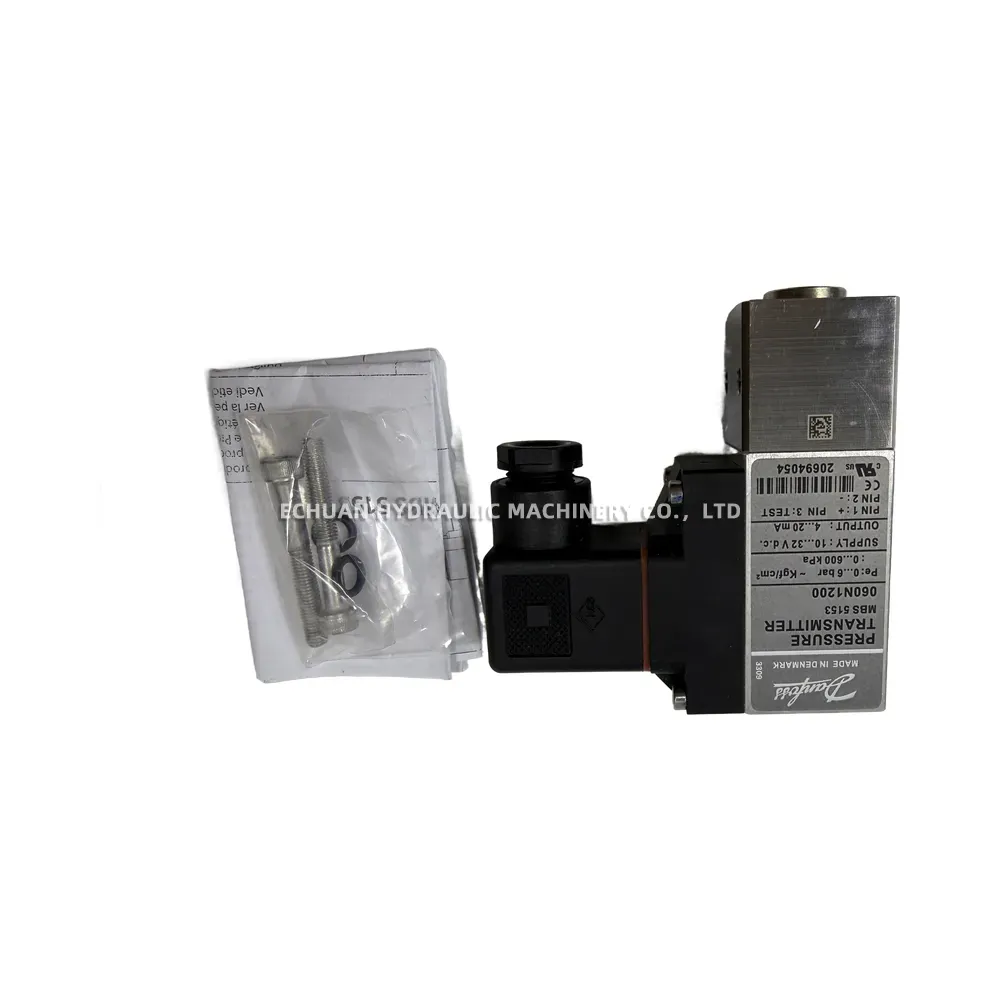

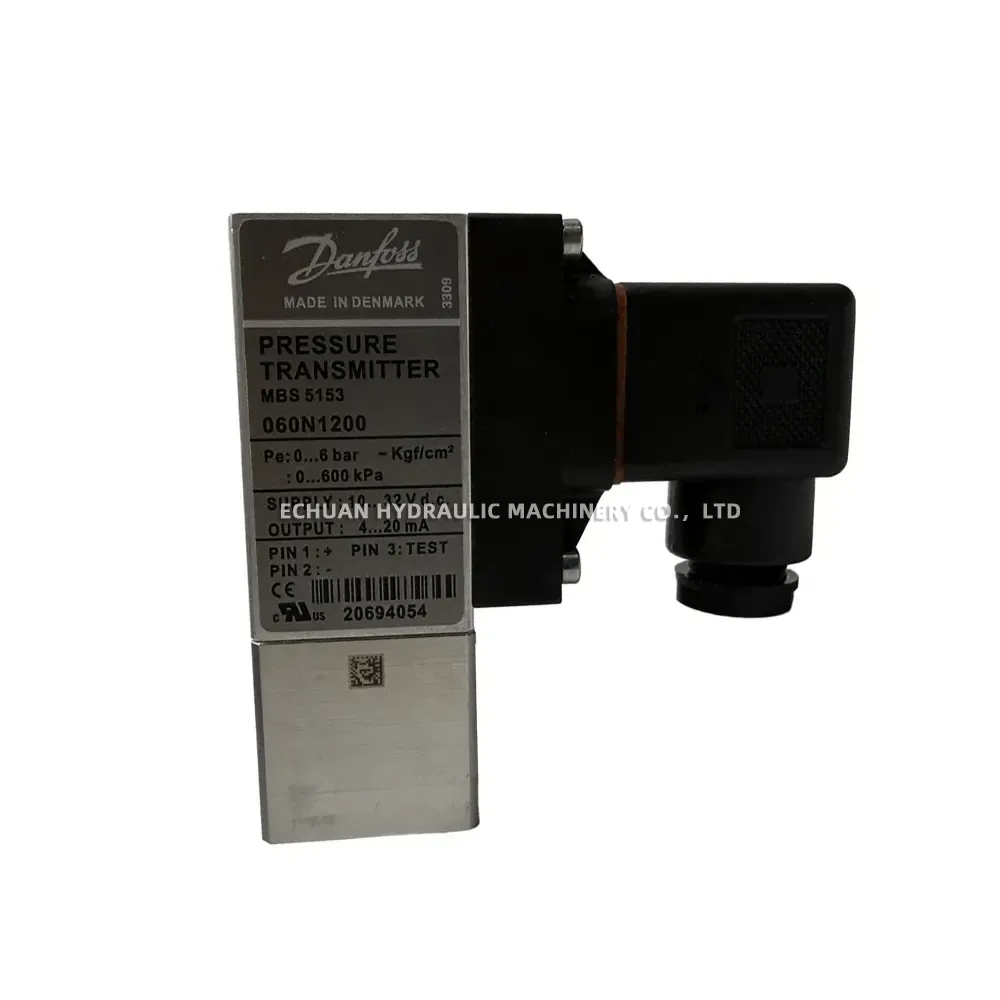

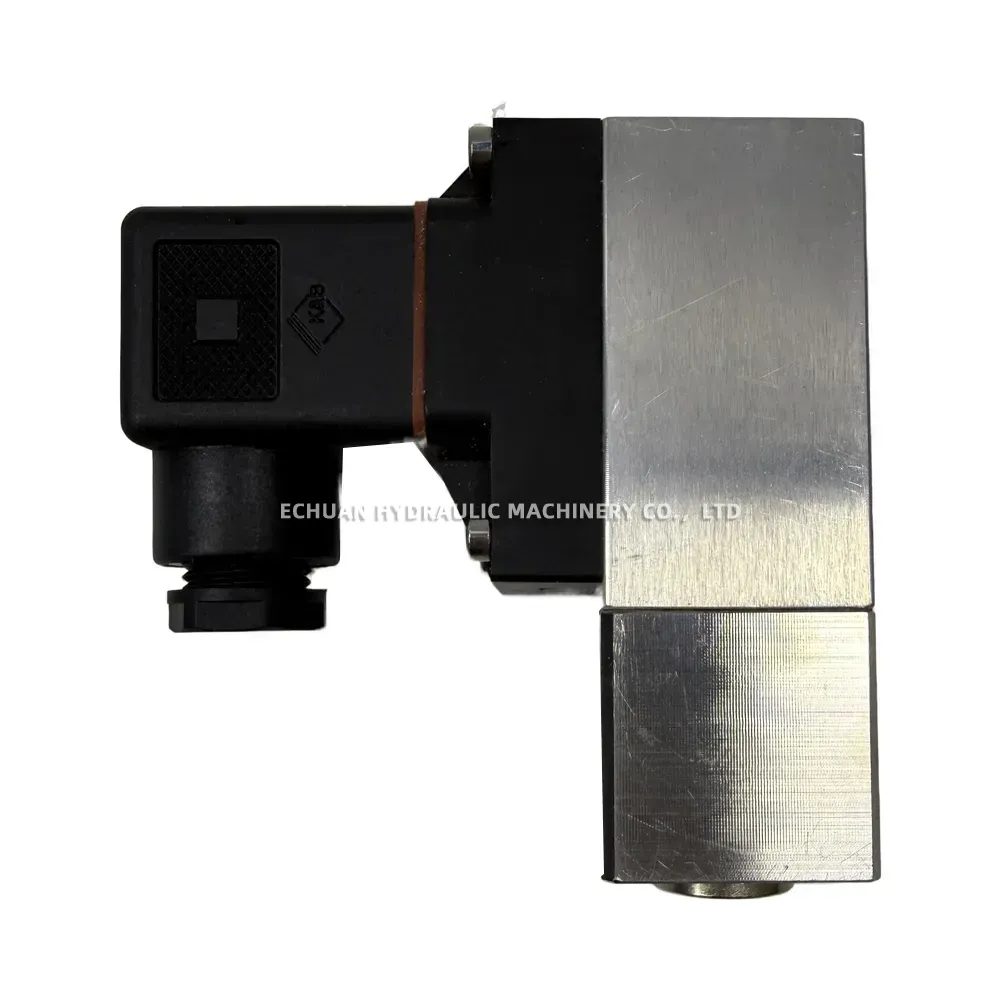

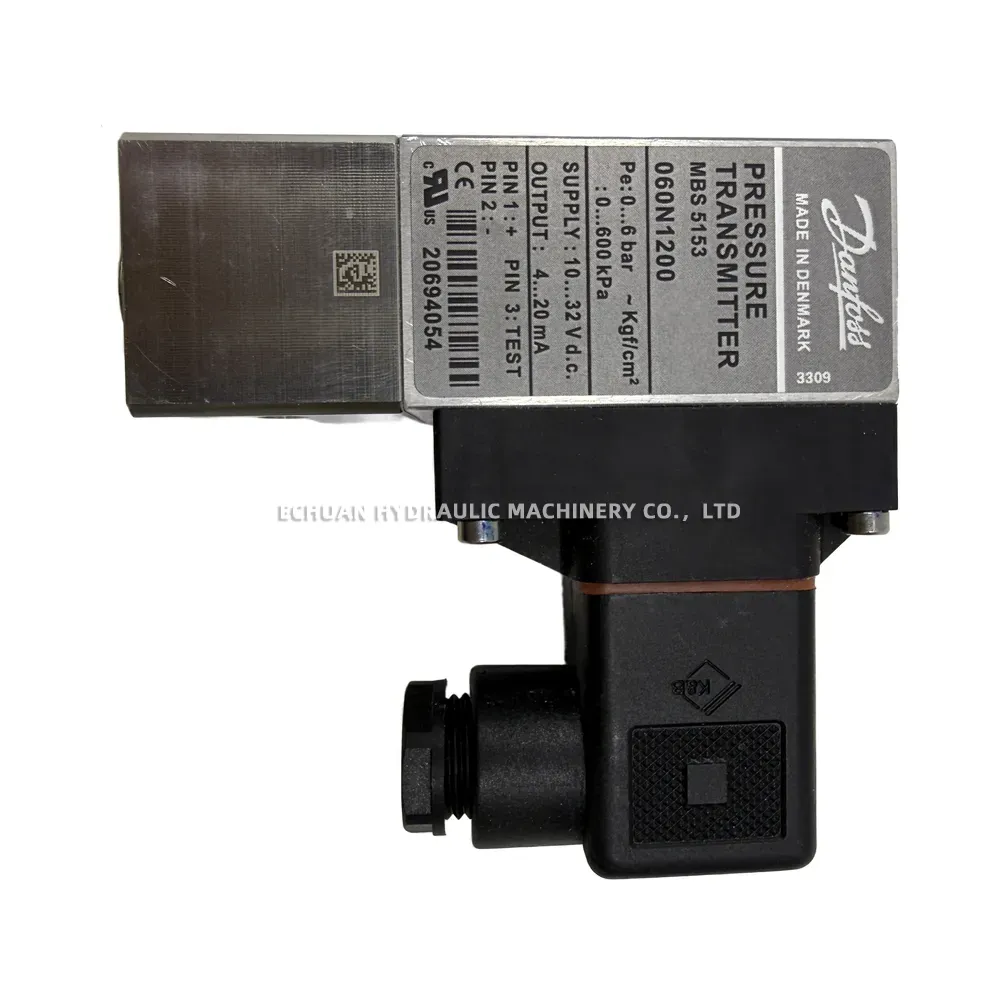

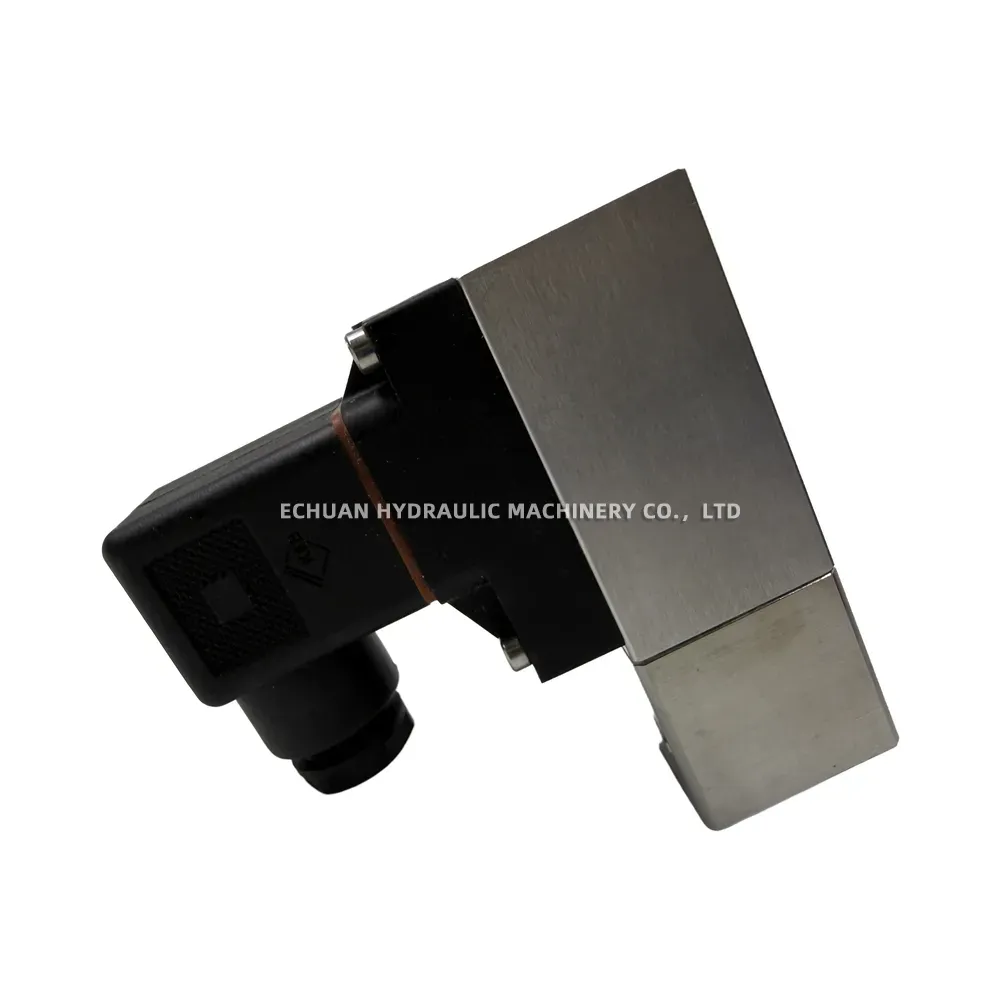

Danfoss MBS 5153 060N1200 Pressure Transmitter
The Danfoss MBS 5153 060N1200 is a highly reliable block-type pressure transmitter specifically designed to withstand demanding marine and industrial environments. Engineered with a robust stainless steel body, it provides exceptional vibration stability and long-term durability. This transmitter features a measuring range of 0 to 6 bar (0 to 600 kPa) and delivers a highly accurate 4 to 20 mA analog output signal. Equipped with a DIN-form connector and integrated test pins (PIN 3: TEST) for quick on-site diagnostics without breaking the loop, the MBS 5153 guarantees precise pressure monitoring and straightforward installation.
Technical Specifications:
- Brand: Danfoss
- Model: MBS 5153
- Part Number: 060N1200
- Measuring Range (Pe): 0…6 bar (0…600 kPa / ~ Kgf/cm²)
- Output Signal: 4…20 mA
- Supply Voltage: 10…32 V d.c.
- Electrical Connection: PIN 1: +, PIN 2: -, PIN 3: TEST (DIN-form connector)

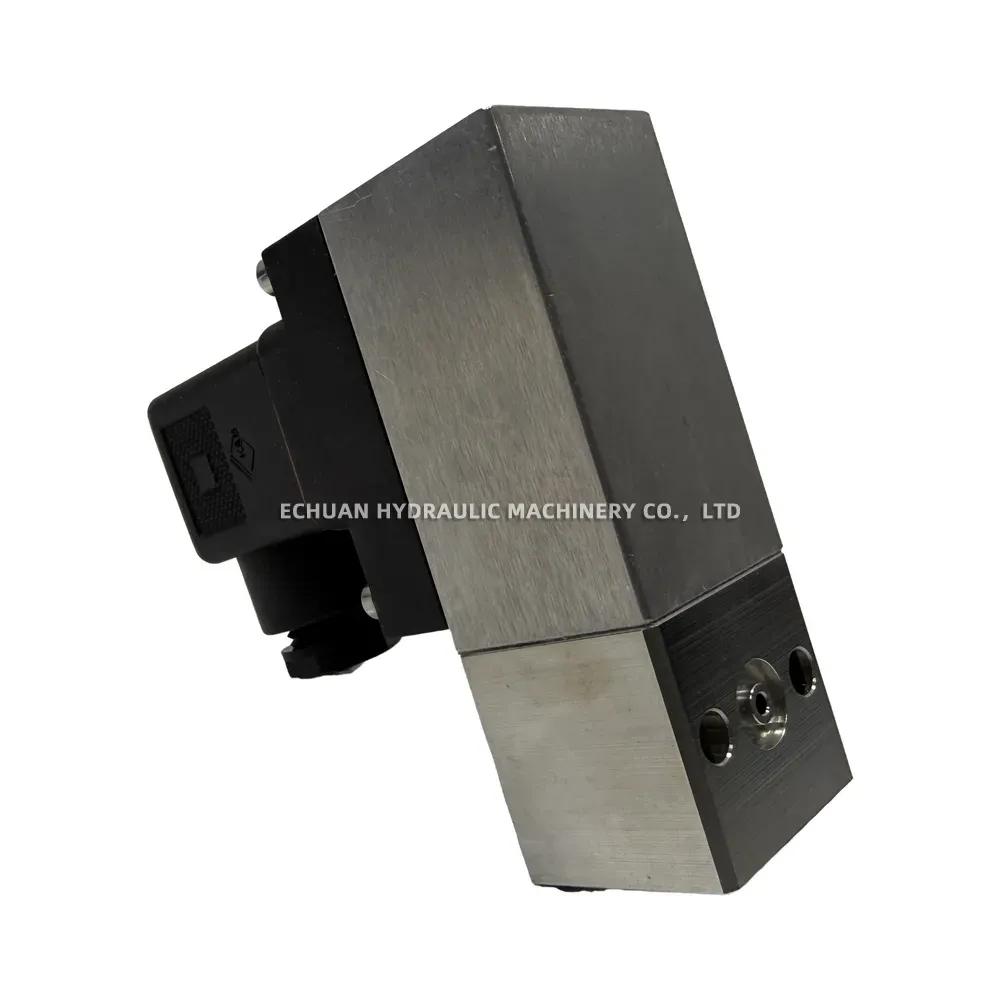

- Design/Material: Stainless steel block body with pressure port and mounting holes
- Certifications & Approvals: CE, cRUus
- Country of Origin: Made in Denmark
Danfoss MBS 5153 060N1200 Pressure Transmitter
Shop the genuine Danfoss MBS 5153 (060N1200) Block-Type Pressure Transmitter. Features a 0-6 bar (0-600 kPa) measuring range, 4-20mA analog output, 10-32 VDC supply, and a rugged stainless steel design. Perfect for reliable pressure monitoring in heavy-duty marine and industrial applications.
