Product Description

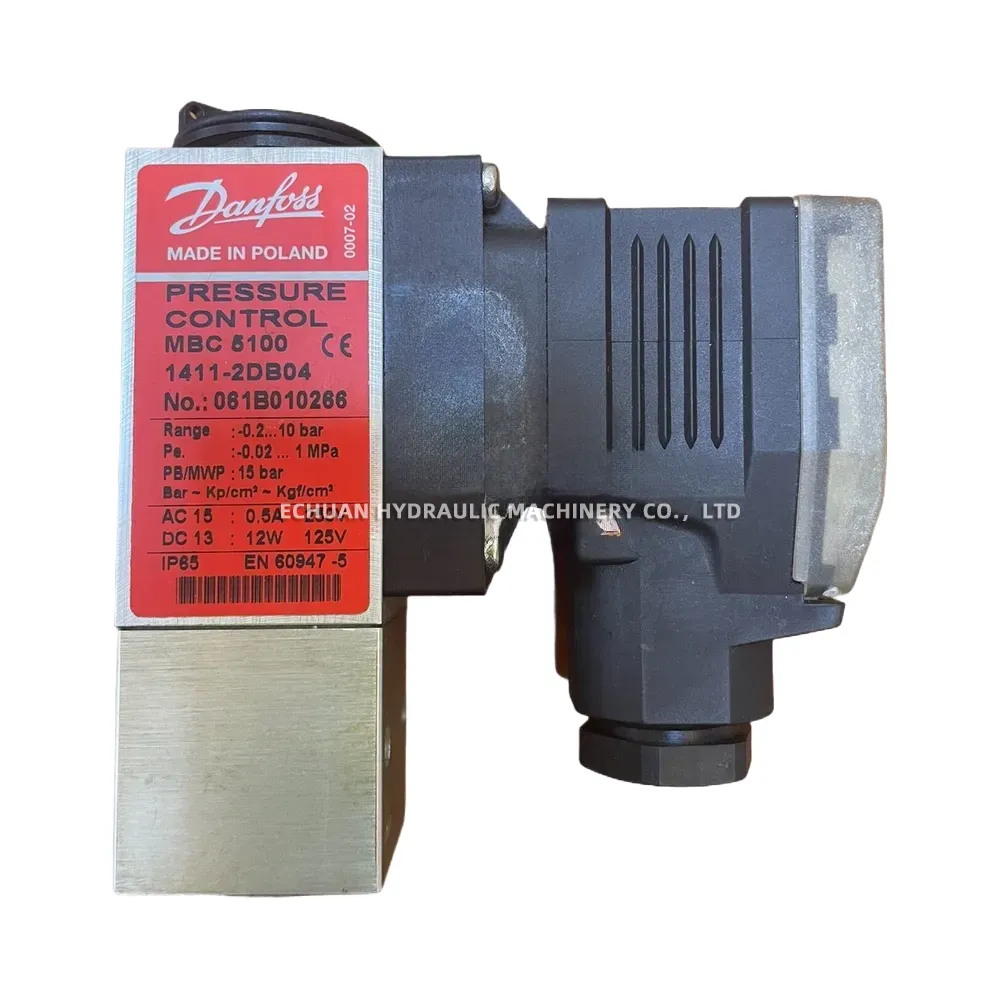

Danfoss MBC 5100 Pressure Switch

The Danfoss MBC 5100 is a compact, block-type pressure switch designed for robust and reliable performance in demanding industrial and marine applications. Engineered to withstand severe conditions including high vibration and shock, this pressure control unit is ideal for alarm and regulation systems in harsh environments. Its high-quality construction and IP65-rated enclosure ensure accurate pressure monitoring and long service life, making it a preferred choice for hydraulics, process control, and general industrial machinery where space and reliability are critical.

Technical Specifications:

  • Model: MBC 5100

  • Part Number: 061B010266

  • Pressure Range: -0.2 to 10 bar (-0.02 to 1 MPa)

  • Maximum Working Pressure (PB/MWP): 15 bar

  • AC Electrical Rating: AC-15, 0.5A at 250V

  • DC Electrical Rating: DC-13, 12W at 125V

  • Protection Class: IP65

  • Standard Compliance: EN 60947-5

  • Country of Origin: Poland

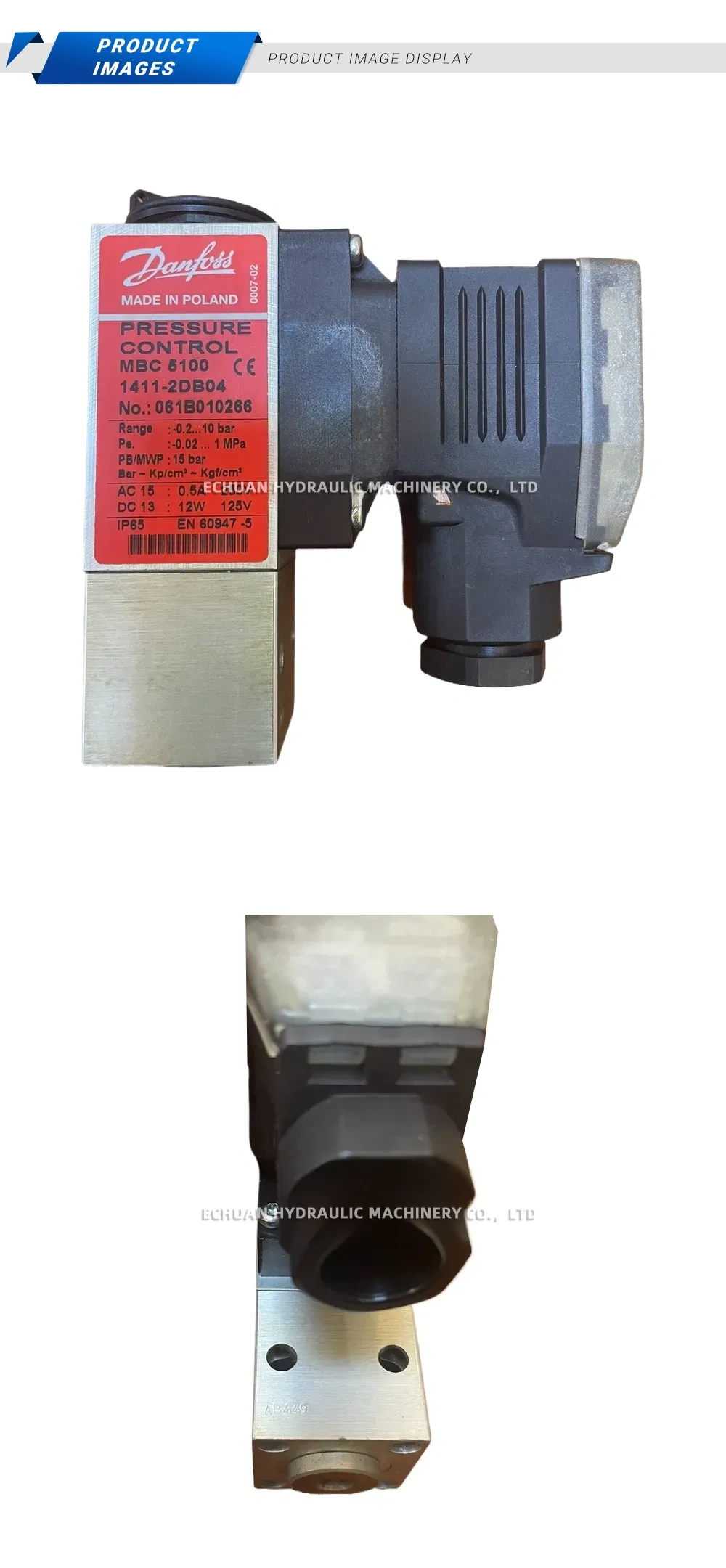

Danfoss MBC 5100 Pressure Switch Description

Danfoss MBC 5100 Pressure Switch

Buy the Danfoss MBC 5100 pressure switch (061B010266), a compact and durable pressure control for industrial use. Features a -0.2 to 10 bar range, IP65 rating, and high vibration resistance.
