Product Description

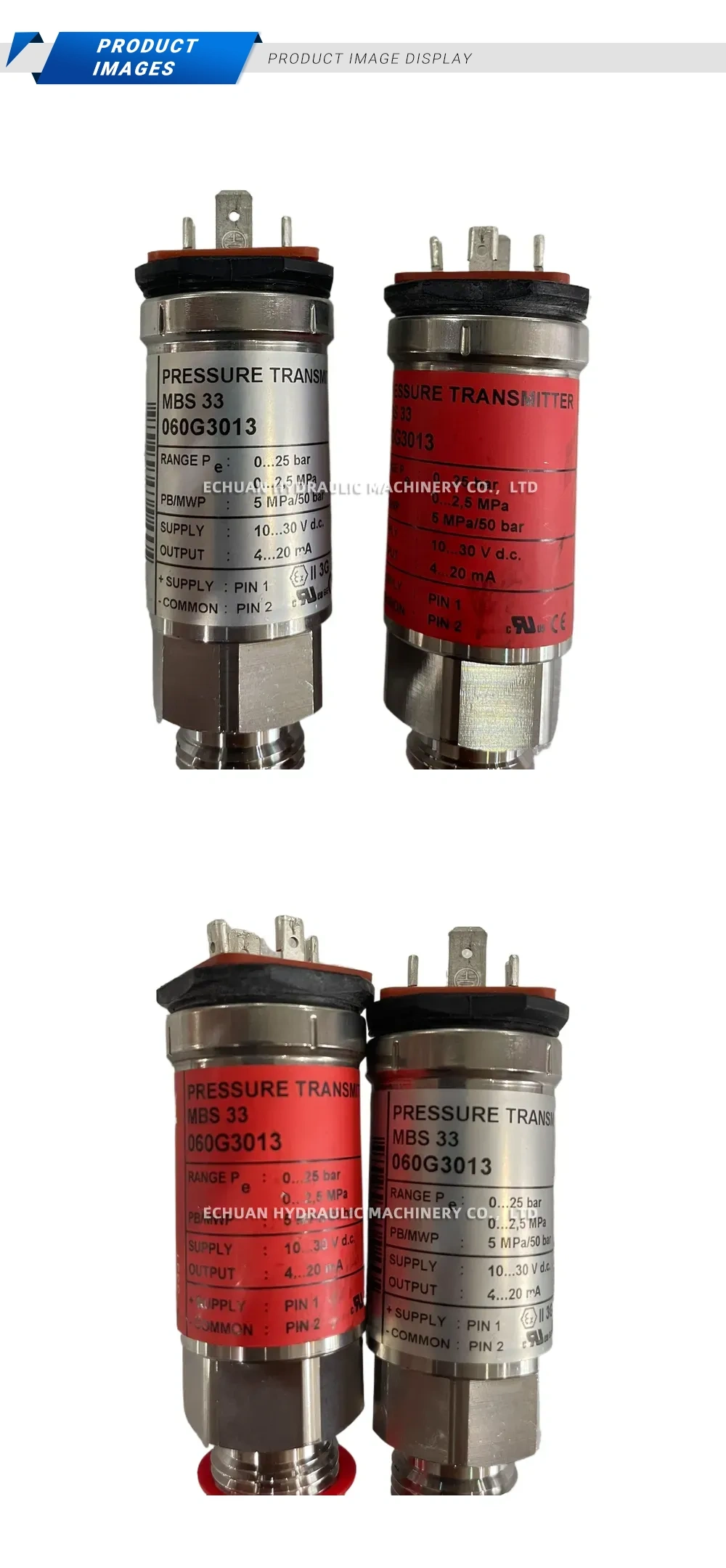

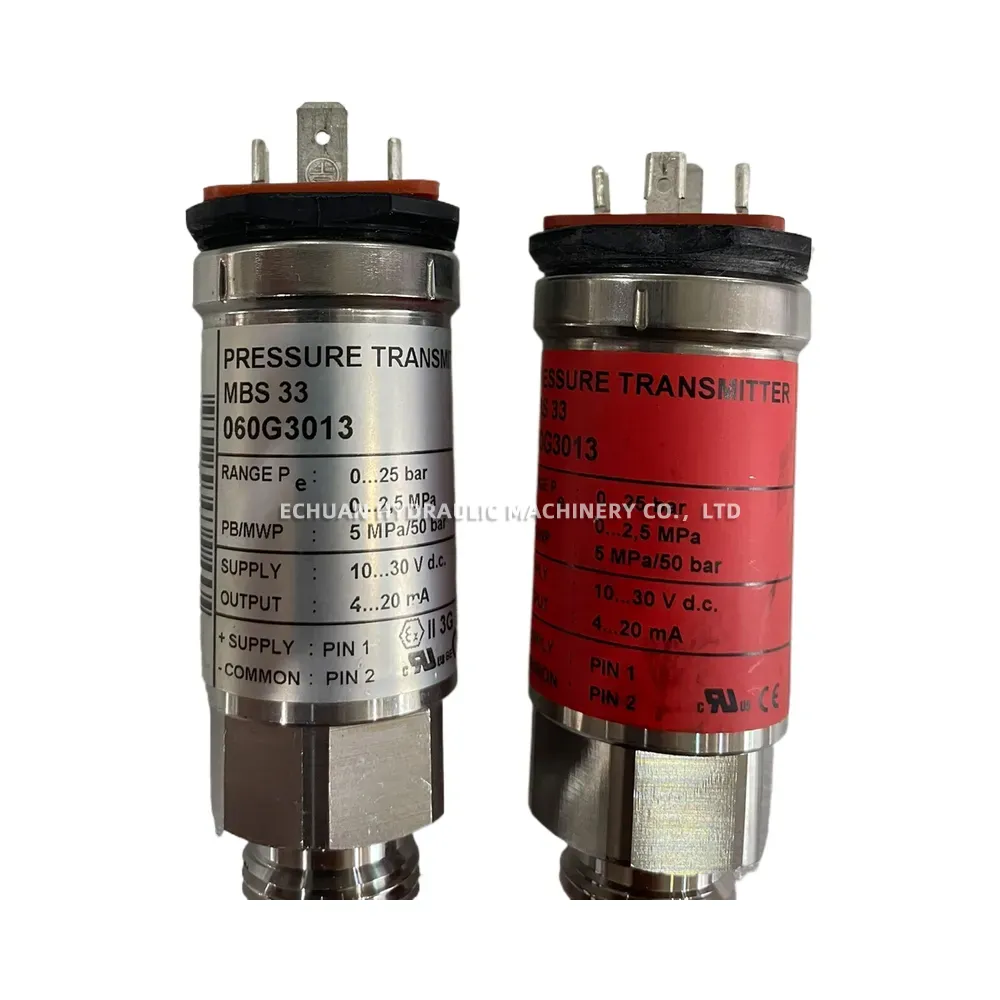

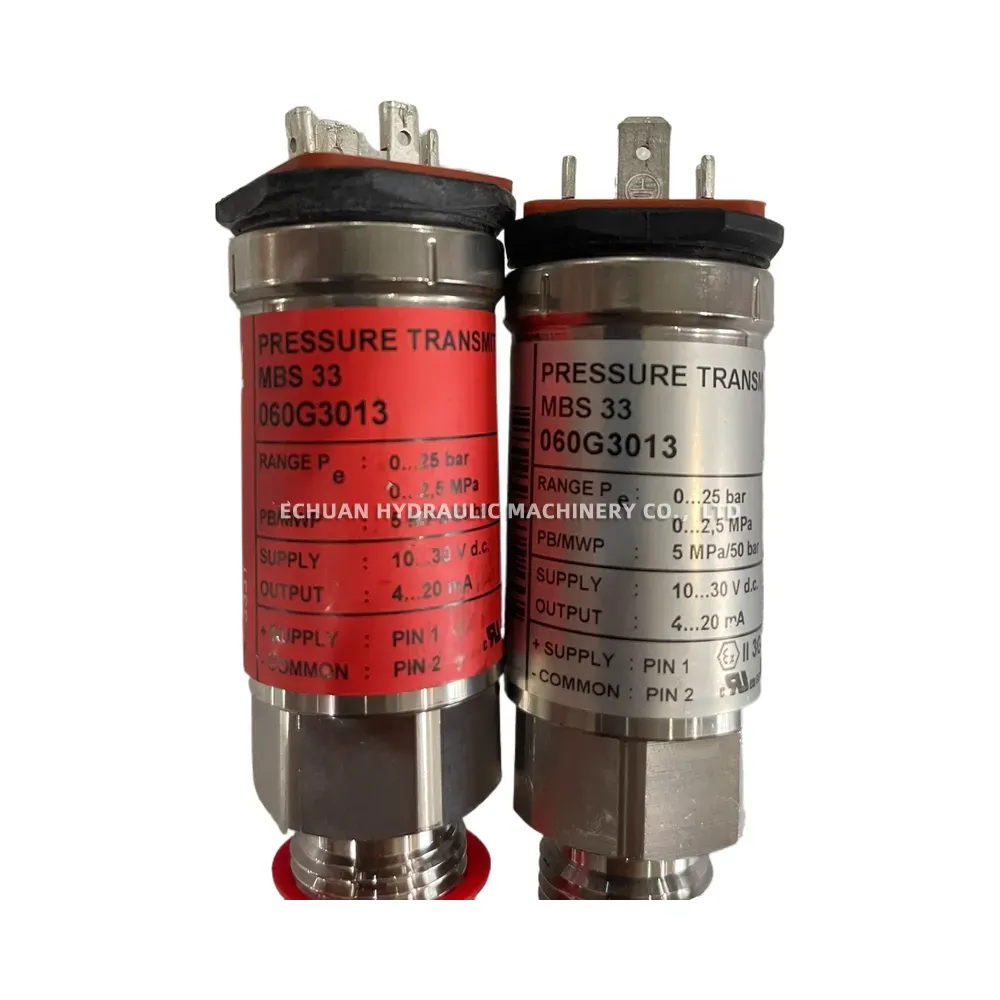

Danfoss MBS 33 / 060G3013 Pressure Transmitter
The Danfoss MBS 33 is a robust industrial pressure transmitter designed for reliable performance in demanding hydraulic applications. Engineered to withstand severe environmental conditions, it is highly resistant to cavitation, liquid hammer, and pressure peaks. This model, 060G3013, provides a standard 4-20 mA output signal, making it compatible with a wide range of industrial control systems. Its compact design and high degree of EMC protection ensure accurate and stable measurements, even in environments with significant electrical interference. Certified for use in various international markets, the MBS 33 is an ideal solution for monitoring and controlling pressure in pumps, compressors, and other industrial machinery.
Technical Specifications:
- Model: MBS 33
- Part Number: 060G3013
- Pressure Range (Pe): 0 – 25 bar / 0 – 2.5 MPa
- Maximum Working Pressure (MWP): 50 bar / 5 MPa
- Output Signal: 4 – 20 mA
- Supply Voltage: 10 – 30 V d.c.
- Electrical Connection: Pin 1 (+ Supply), Pin 2 (- Common)
- Certifications: ATEX (II 3G), cRUus, CE
Danfoss MBS 33 / 060G3013 Pressure Transmitter
Buy the Danfoss MBS 33 pressure transmitter, model 060G3013. This industrial sensor features a 0-25 bar range, a reliable 4-20 mA output, and is built for demanding hydraulic and industrial applications. ATEX, UL, and CE certified.
