Product Description

Danfoss MBC8100 2431-1A02000 061B810466

The Danfoss MBC 8100 is a compact temperature switch engineered for exceptional performance in harsh industrial and marine environments. Its block-type design is built to withstand severe vibrations and shocks, ensuring high reliability and operational safety. This model features a fixed differential and is equipped with an SPDT contact system, making it ideal for alarm and control functions in a wide range of applications, including engines, gearboxes, and monitoring systems. With major marine approvals, the MBC 8100 stands as a testament to Danfoss’s commitment to quality and durability in demanding conditions.

Technical Specifications:

  • Model: MBC 8100

  • Part Number: 061B810466

  • Regulation Range: 20 to 120 °C

  • Contact Function: SPDT (Single Pole Double Throw)

  • Sensor Type: Capillary tube with sensor bulb

  • Capillary Tube Length: 2000 mm

  • Enclosure Rating: IP65

  • Approvals: Major marine type approvals (LR, DNV, GL, CCS, RINA, etc.)

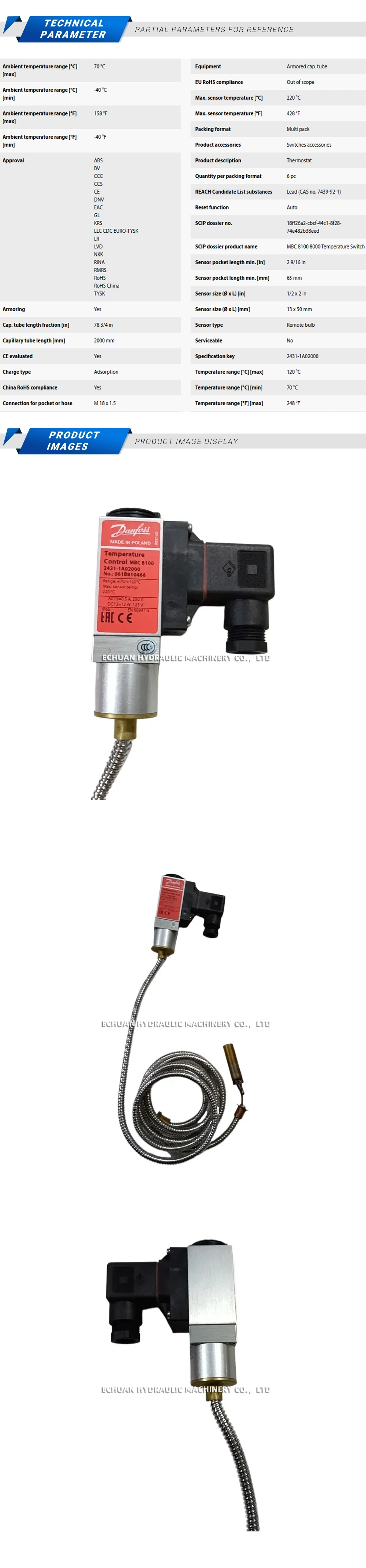

Danfoss MBC8100 2431-1A02000 061B810466 Description

Danfoss MBC8100 2431-1A02000 061B810466

Discover the Danfoss MBC 8100 temperature switch (061B810466), a compact and robust solution for temperature control in demanding marine and industrial applications, featuring a 20-120°C range and high vibration resistance.

BrandDANFOSS
ModelMBC8100 2431-1A02000 061B810466
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/danfoss-mbc8100-2431-1a02000-061b810466
