Product Description

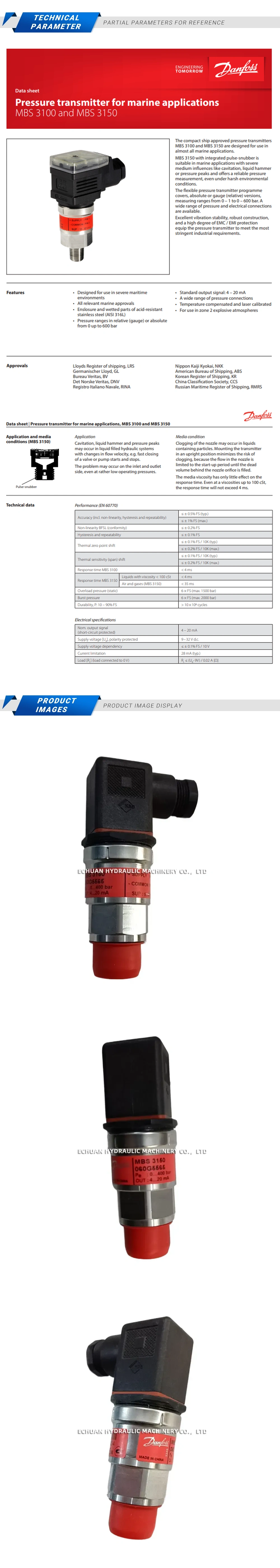

Danfoss MBS3150 060G5565
The Danfoss MBS 3150 is a heavy-duty pressure transmitter designed for use in severe marine environments. This specific model, 060G5565, is built to provide reliable pressure measurement even under harsh conditions, making it resistant to cavitation, liquid hammer, and pressure peaks. It features a block-design and holds all relevant marine approvals, ensuring high performance and durability in applications such as ship engines, pumps, and hydraulic systems. Its ratiometric output signal is ideal for integration with various control systems.
Technical Specifications:
- Pressure Range: 0 – 25 bar (Gauge)
- Output Signal: 10 – 90% of V supply (Ratiometric)
- Supply Voltage [V d.c.]: 5 V
- Pressure Connection: G 1/4 A (EN 837)
- Electrical Connection: DIN 43650-A, PG 9
- IP Rating: IP65
- Compensated Temp. Range [°C]: 0 – 80 °C
Danfoss MBS3150 060G5565
Purchase the Danfoss MBS 3150 pressure transmitter, model 060G5565. This robust, marine-approved sensor features a 0-25 bar range, ratiometric output, and is designed for reliable performance in harsh hydraulic and industrial applications.
| Brand | DANFOSS |
|---|---|
| Model | MBS3150 060G5565 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbs3150-060g5565 |
