Product Description
Danfoss MBS 3050 060G5864 Pressure Transmitter
The Danfoss MBS 3050 is a compact, heavy-duty pressure transmitter designed for reliable performance in harsh industrial and marine environments. This model is engineered to withstand severe conditions, offering excellent vibration stability, robust construction, and a high degree of EMC/EMI protection. The integrated pulse-snubber provides protection against cavitation and liquid hammer, making it ideal for applications with significant pressure spikes, such as in pumps, compressors, hydraulics, and marine systems. Its reliable design ensures accurate pressure measurement even under demanding operational conditions.

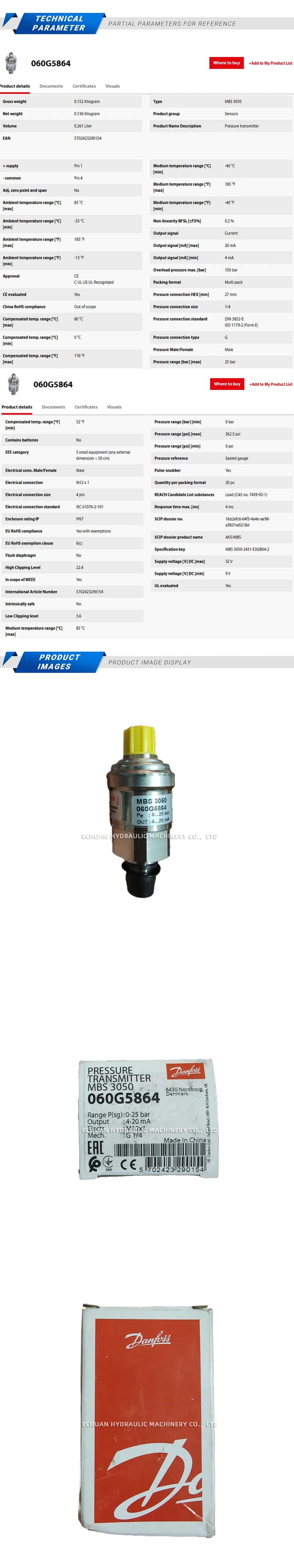

Technical Specifications:
- Pressure Range: 0 – 250 bar
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/4 A (EN 837)
- Electrical Connection: DIN 43650-A, PG 9
- Supply Voltage: 10 – 30 V d.c.
- Accuracy, typical [± % FS]: 0.5 %
- Enclosure Rating: IP65
Danfoss MBS 3050 060G5864
Shop the Danfoss MBS 3050 060G5864, a robust 0-250 bar pressure transmitter with a 4-20 mA output. Designed for harsh marine and hydraulic applications with high vibration resistance and EMC protection.
