Product Description

Danfoss MBS 3300 060G3878

The Danfoss MBS 3300 is a compact and robust pressure transmitter designed for reliable performance in severe industrial and hydraulic environments. It is engineered to withstand high levels of mechanical shock, vibration, and temperature fluctuations, making it ideal for demanding applications. This model features a high degree of EMC/EMI protection and provides accurate, stable pressure measurement for systems such as pumps, compressors, pneumatics, and water treatment facilities. Its durable construction ensures a long service life even under challenging operational conditions.

Technical Specifications:

  • Pressure Range: 0 – 25 bar

  • Output Signal: 4 – 20 mA

  • Pressure Connection Type: G 1/4 A

  • Electrical Connection: Plug, DIN 43650-A

  • Accuracy, typical: ±0.5 % FS

  • Ingress Protection (IP) Rating: IP65

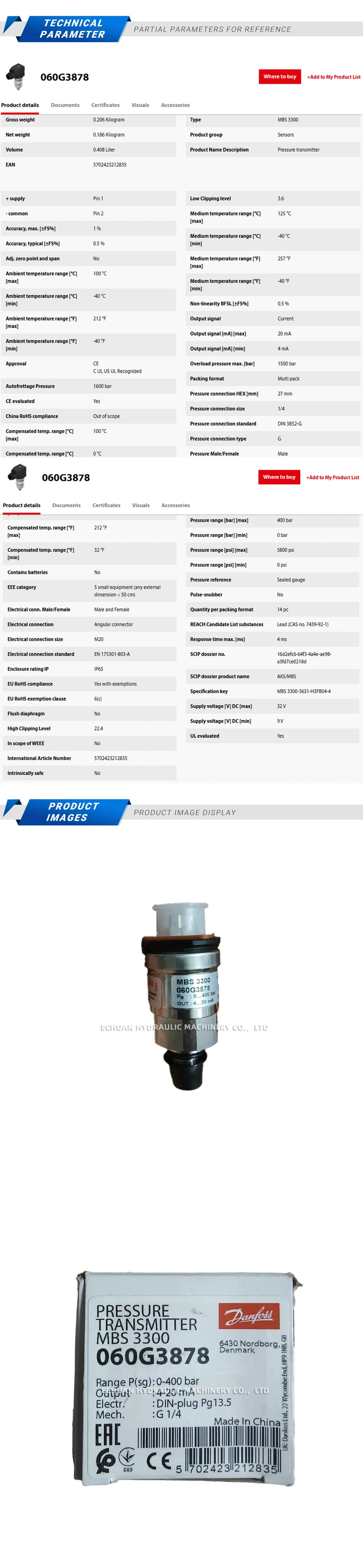

Danfoss MBS 3300 060G3878 Description

Danfoss MBS 3300 060G3878

Order the Danfoss MBS 3300 pressure transmitter, part number 060G3878. This reliable sensor provides accurate pressure measurement from 0 to 25 bar with a 4-20 mA output and a G 1/4 connection. Built for harsh industrial and hydraulic applications.
