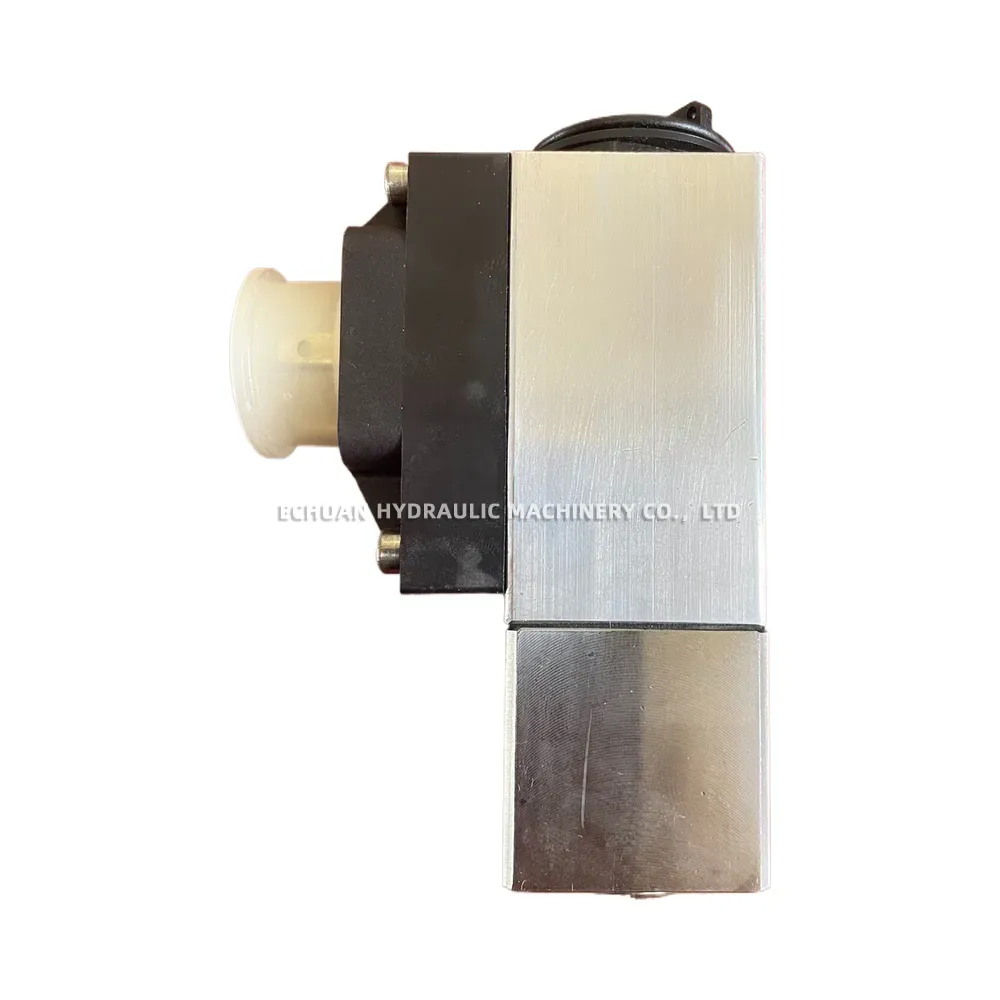

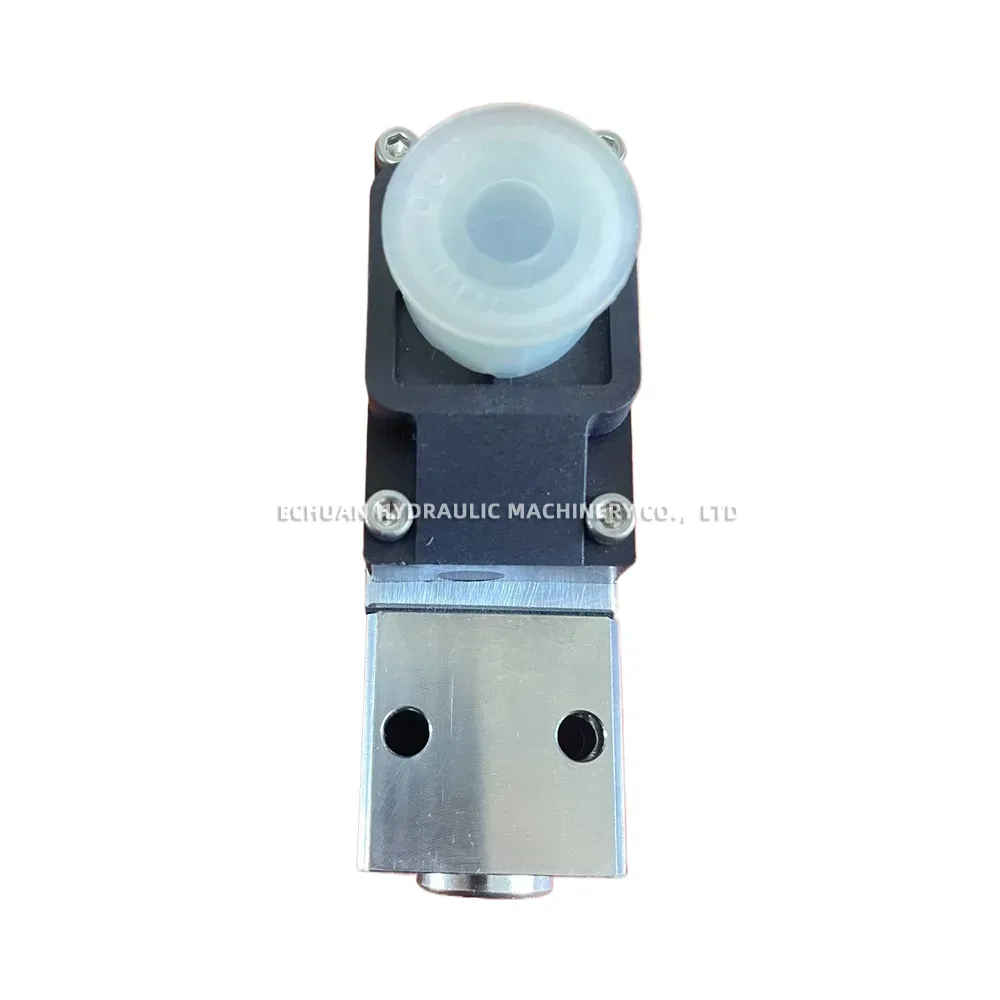

Danfoss MBS 5150-1611-2DB04 Pressure Transmitter

The Danfoss MBS 5150 is a block-type pressure transmitter engineered for reliable performance in harsh industrial and marine environments. This model is specifically designed to withstand severe conditions, offering high resistance to vibration and a wide operating temperature range. With major ship approvals, it is ideal for monitoring and control applications in marine engines, pumps, compressors, and other demanding systems. The MBS 5150 ensures accurate pressure measurement with a standard 4-20 mA output signal, providing a robust and dependable solution for critical pressure sensing tasks.

Technical Specifications:

  • Model: MBS 5150-1611-2DB04

  • Danfoss Part Number: 060N1071

  • Pressure Range: 0 – 4 bar (0 – 400 kPa)

  • Output Signal: 4 – 20 mA

  • Supply Voltage: 10 – 32 V d.c.

  • Pin Configuration: Pin 1 (+), Pin 2 (-), Pin 3 (Test)

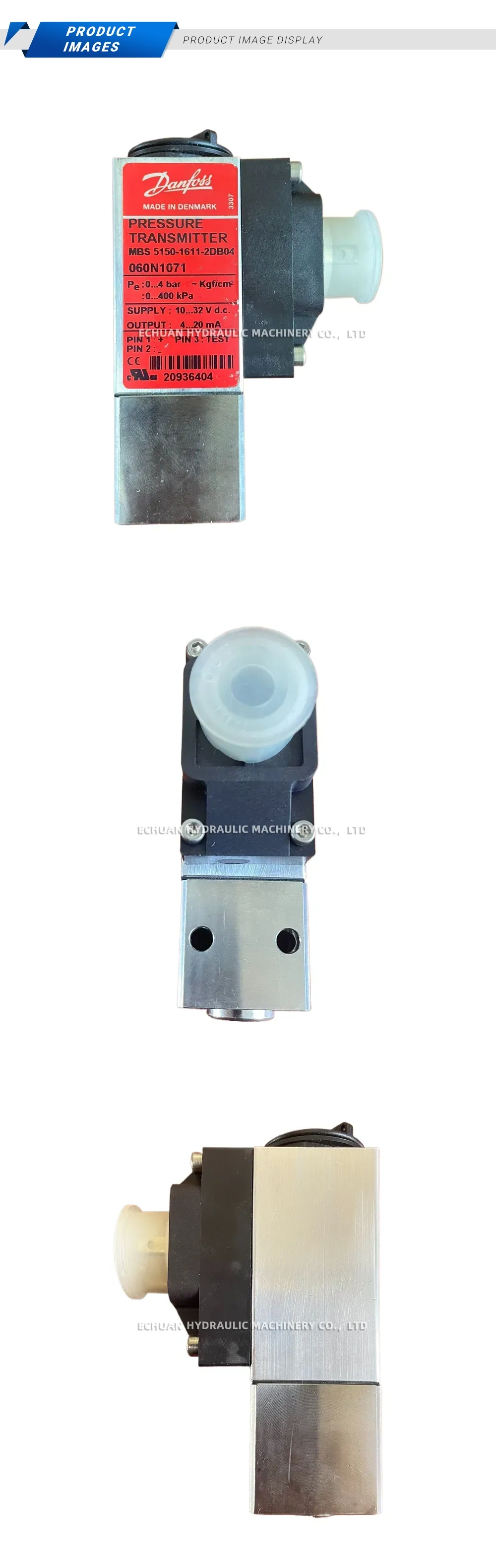

Danfoss MBS 5150-1611-2DB04 Pressure Transmitter Description

Danfoss MBS 5150-1611-2DB04 Pressure Transmitter

Purchase the Danfoss MBS 5150-1611-2DB04 pressure transmitter, a robust sensor for marine and industrial use. Features a 0-4 bar range and a 4-20 mA output signal for reliable pressure measurement.

BrandDANFOSS
ModelMBS 5150-1611-2DB04
CategoryOther products
