Product Description

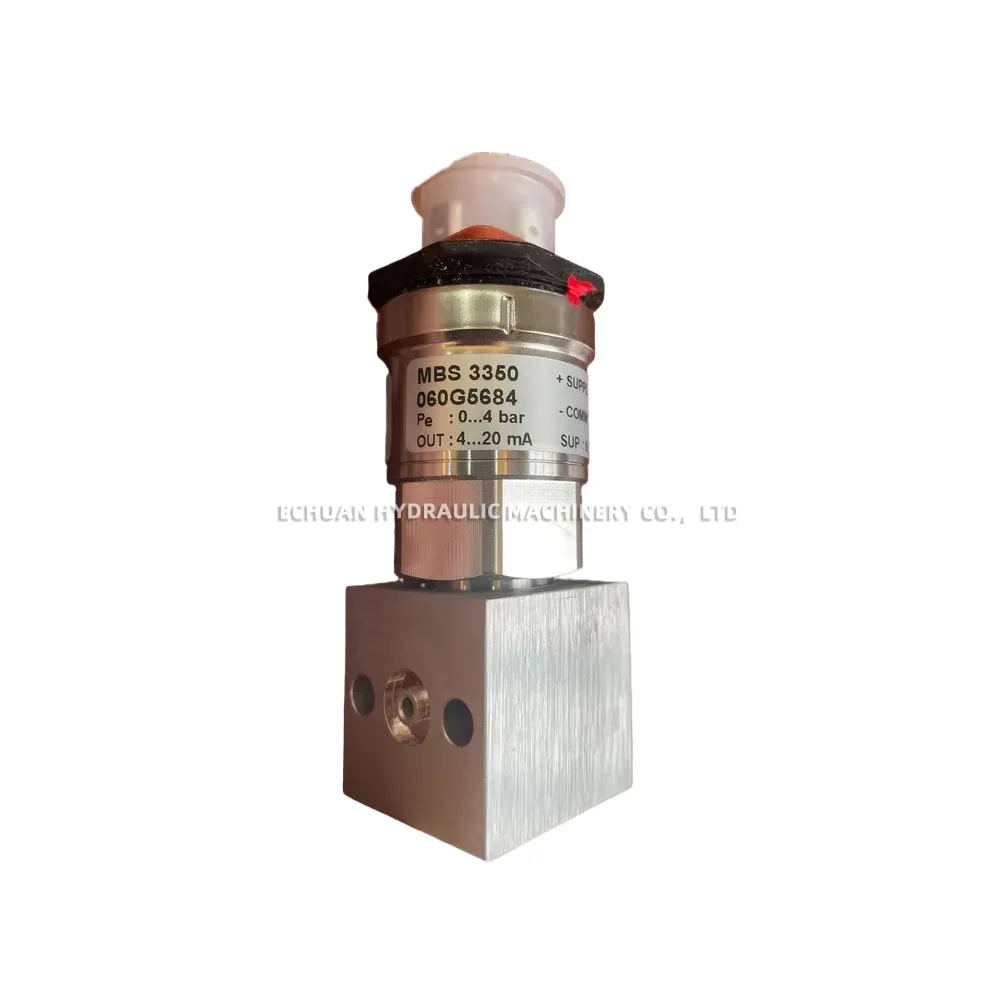

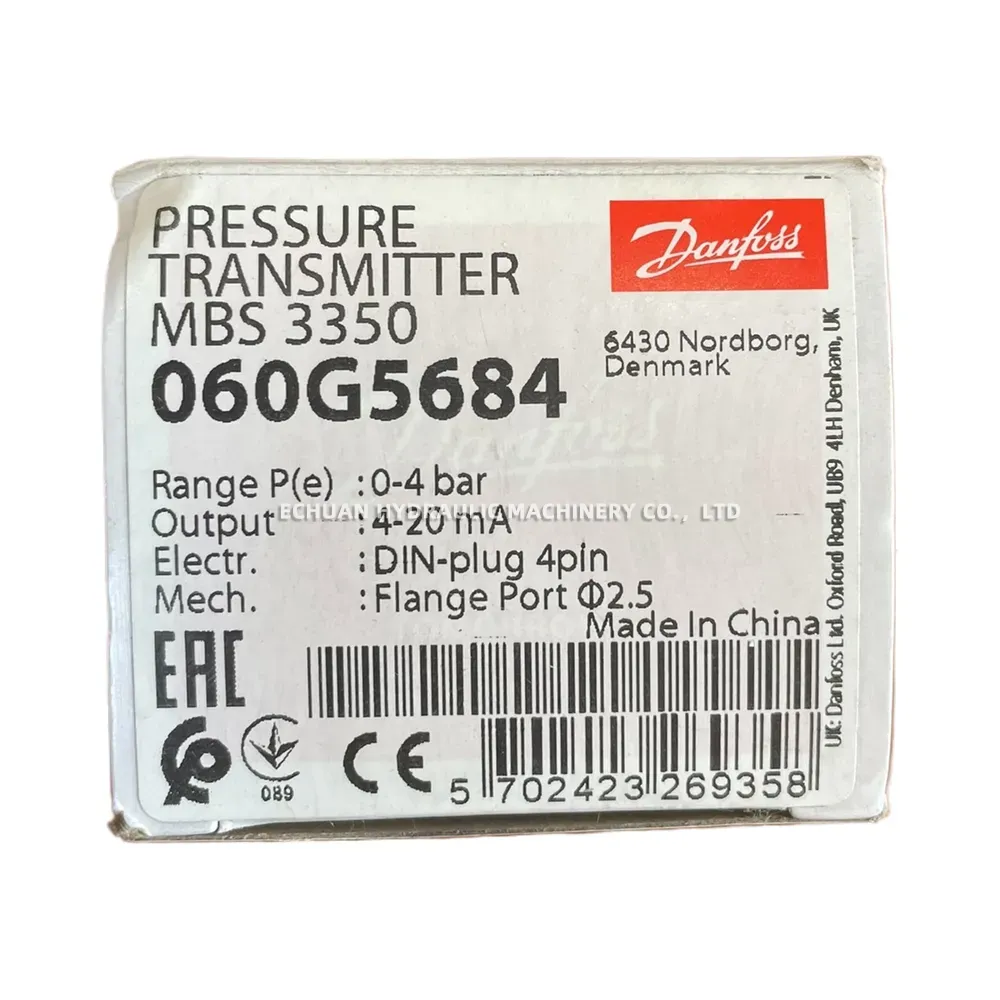

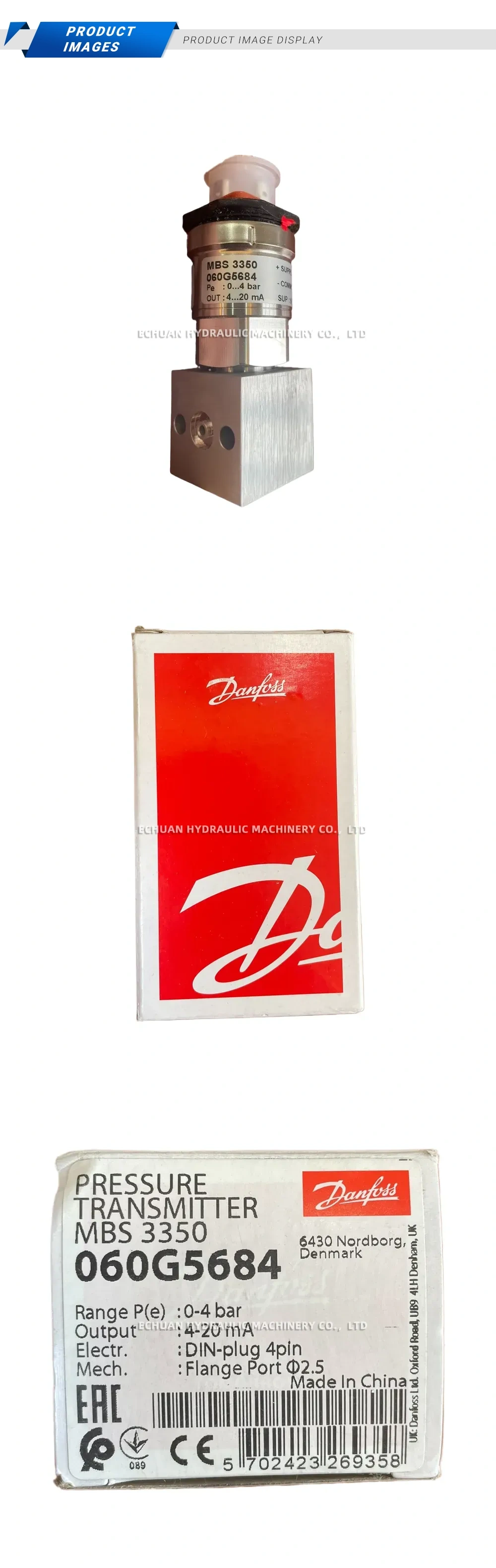

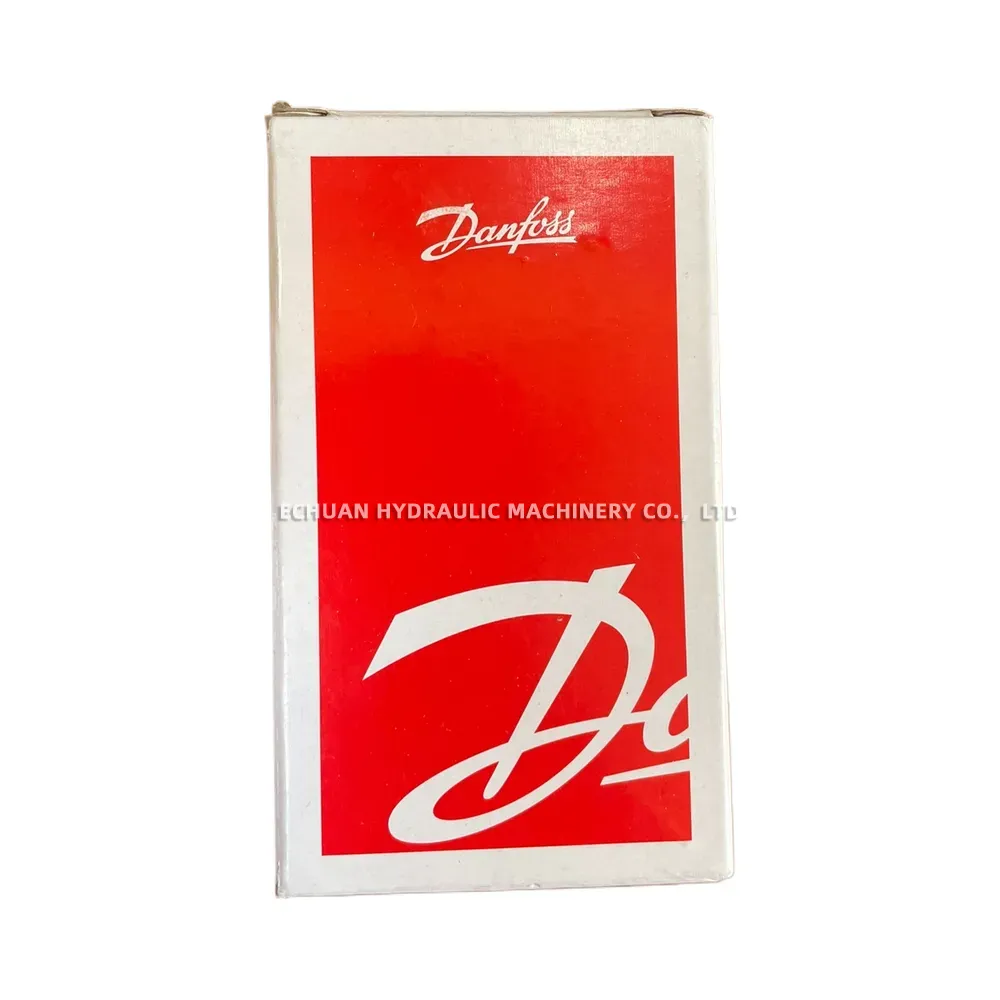

Danfoss MBS 3350 Pressure Transmitter
The Danfoss MBS 3350 is a high-performance pressure transmitter engineered for demanding marine and offshore applications. Designed to provide reliable pressure measurement even in harsh environments, it features excellent vibration stability and a high degree of EMC/EMI protection. This model is built to withstand severe conditions like cavitation, liquid hammer, and pressure peaks, ensuring accurate and dependable performance for control, monitoring, and alarm systems on board ships and offshore platforms. Its robust construction makes it an ideal choice for critical systems where reliability is paramount.
Technical Specifications:
- Part Number: 060G5684
- Pressure Range: 0 – 4 bar
- Output Signal: 4 – 20 mA
- Electrical Connection: DIN-plug, 4-pin (DIN 43650-A)
- Mechanical Connection: Flange Port Ø2.5 mm
Danfoss MBS 3350 Pressure Transmitter
Order the robust Danfoss MBS 3350 Pressure Transmitter (060G5684), designed for marine applications. Features a 0-4 bar pressure range, 4-20 mA output, and a DIN-plug connection for reliable and accurate pressure measurement in harsh environments.
