Product Description

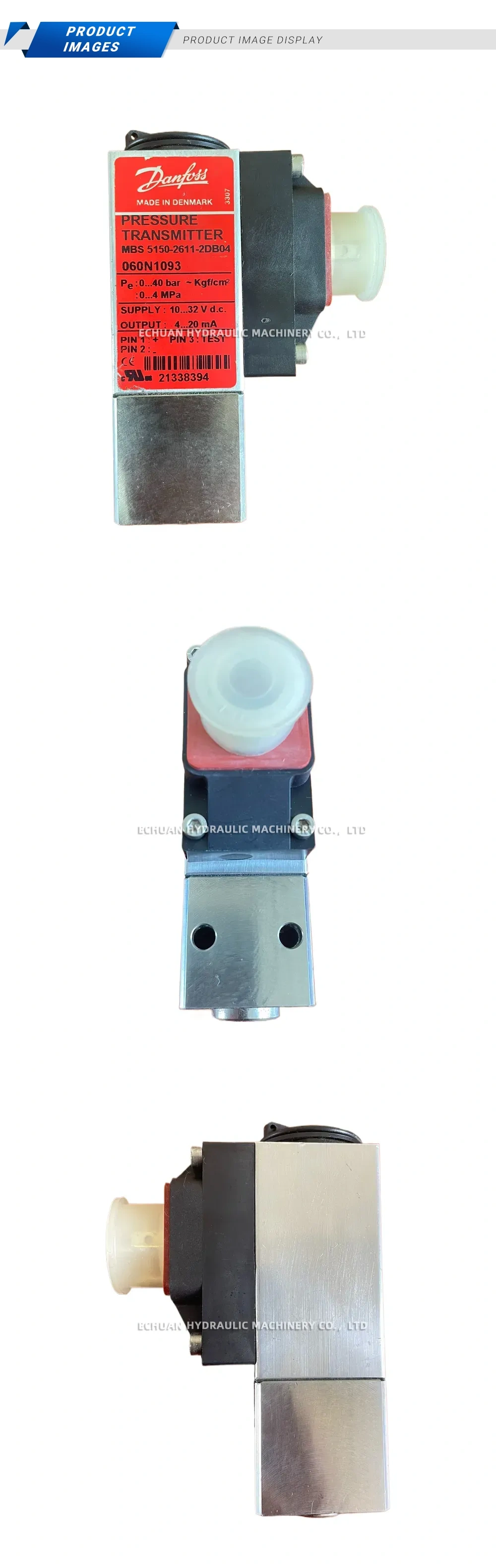

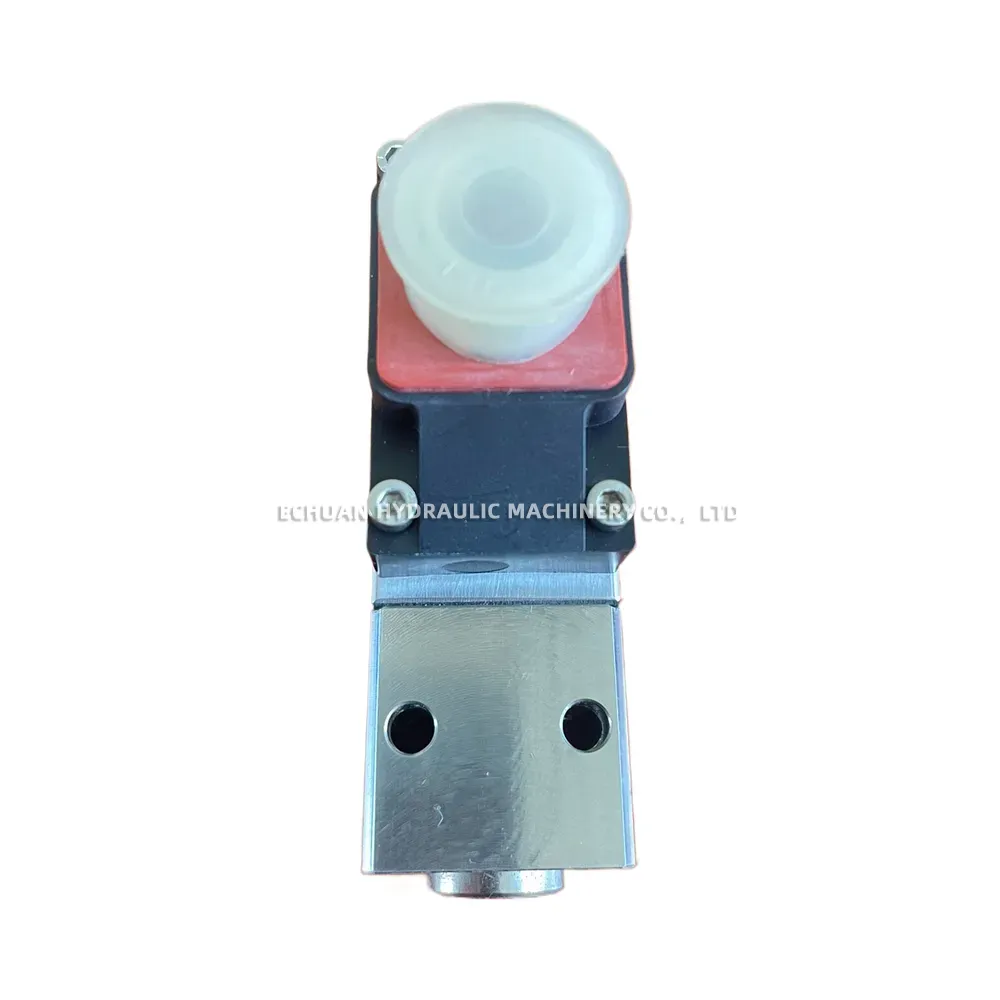

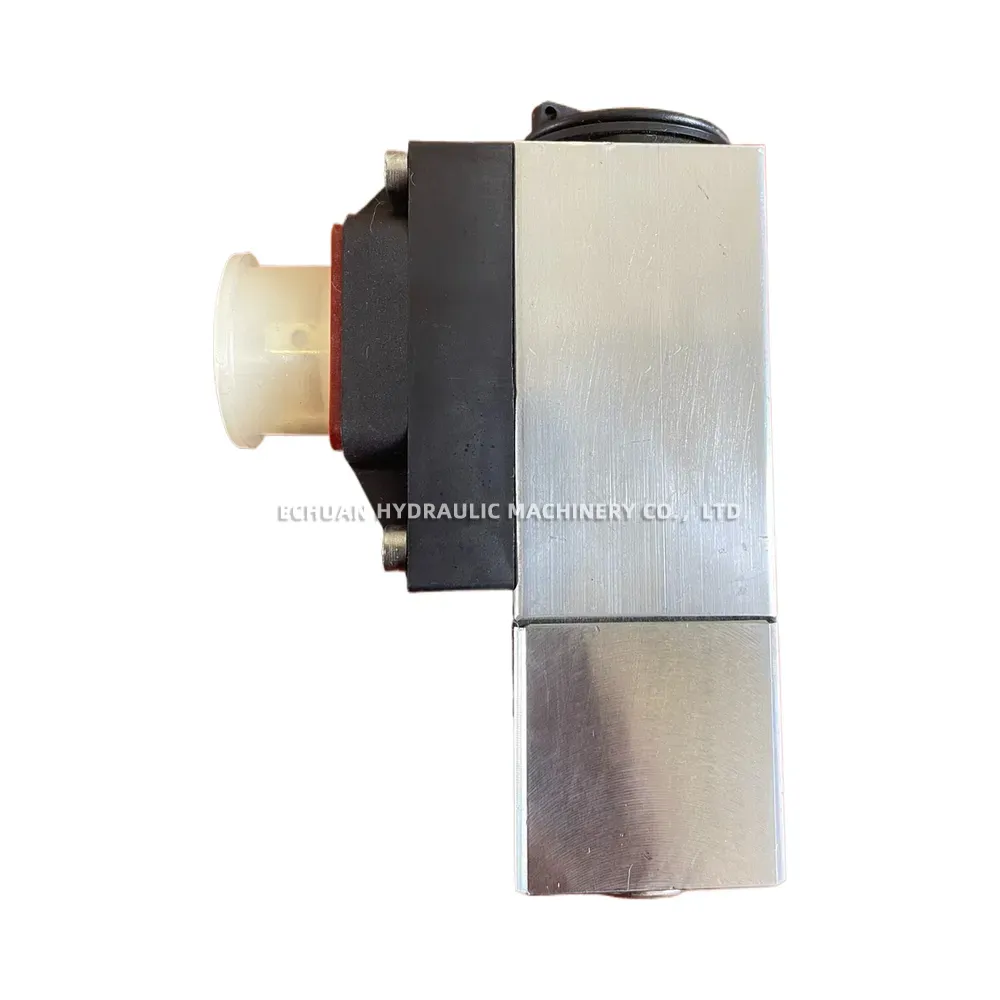

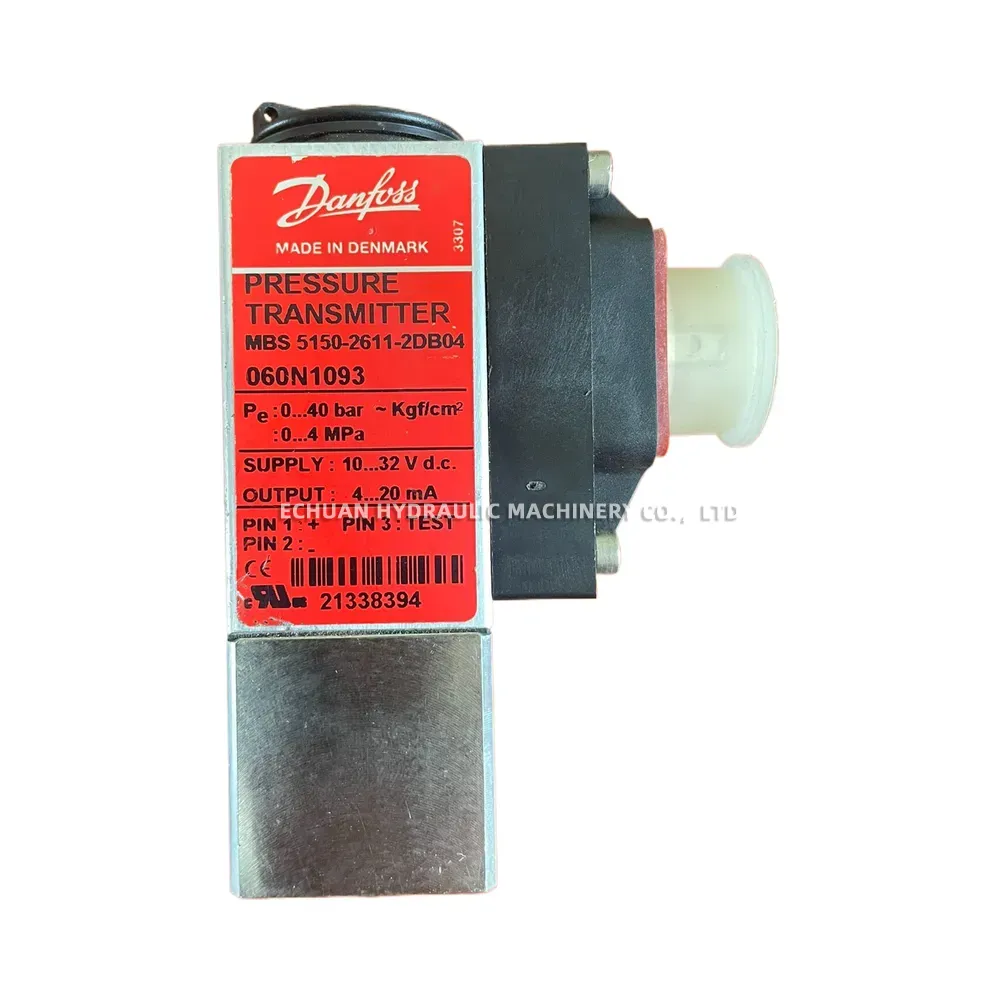

Danfoss MBS 5150-2611-2DB04 Pressure Transmitter
The Danfoss MBS 5150-2611-2DB04 is a high-performance, ship-approved pressure transmitter designed for demanding marine and industrial applications. It provides reliable and accurate pressure measurement even in harsh environments characterized by high vibration and shock. This block-type transmitter is engineered for exceptional robustness and features a high degree of EMC/EMI protection, making it ideal for critical systems such as pumps, compressors, and hydraulics on board ships and in offshore installations.
Technical Specifications:
- Model: MBS 5150-2611-2DB04
- Part Number: 060N1093
- Pressure Range: 0 – 40 bar / 0 – 4 MPa
- Output Signal: 4 – 20 mA
- Supply Voltage: 10 – 32 V d.c.
- Electrical Connection: 3-pin Connector (Pin 1: +, Pin 2: -, Pin 3: Test)
Danfoss MBS 5150-2611-2DB04 Pressure Transmitter
Shop the Danfoss MBS 5150-2611-2DB04 (060N1093) pressure transmitter, featuring a 0-40 bar measuring range, 4-20 mA output, and a robust design for reliable performance in marine and heavy-duty industrial applications.
| Brand | DANFOSS |
|---|---|
| Model | MBS 5150-2611-2DB04 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbs-5150-2611-2db04-pressure-transmitter |
