Product Description

Danfoss MBS3100 060G1369

The Danfoss MBS 3100 is a compact, heavy-duty pressure transmitter designed for reliable performance in demanding industrial and marine applications. This model is engineered to withstand severe environmental conditions such as high vibrations, cavitation, and pressure peaks, making it ideal for use in ship engines, hydraulic power packs, and other machinery where robust and accurate pressure measurement is critical. With its excellent EMC immunity and a high degree of protection, the MBS 3100 ensures stable and dependable operation even in the harshest settings.

Technical Specifications:

  • Pressure Range: 0 – 10 bar (Gauge)

  • Output Signal: 4 – 20 mA

  • Pressure Connection: G 1/4 A (ISO 228-1)

  • Electrical Connection: Plug DIN 43650-A, PG 9

  • Supply Voltage: 10 – 30 V d.c.

  • Ingress Protection: IP65

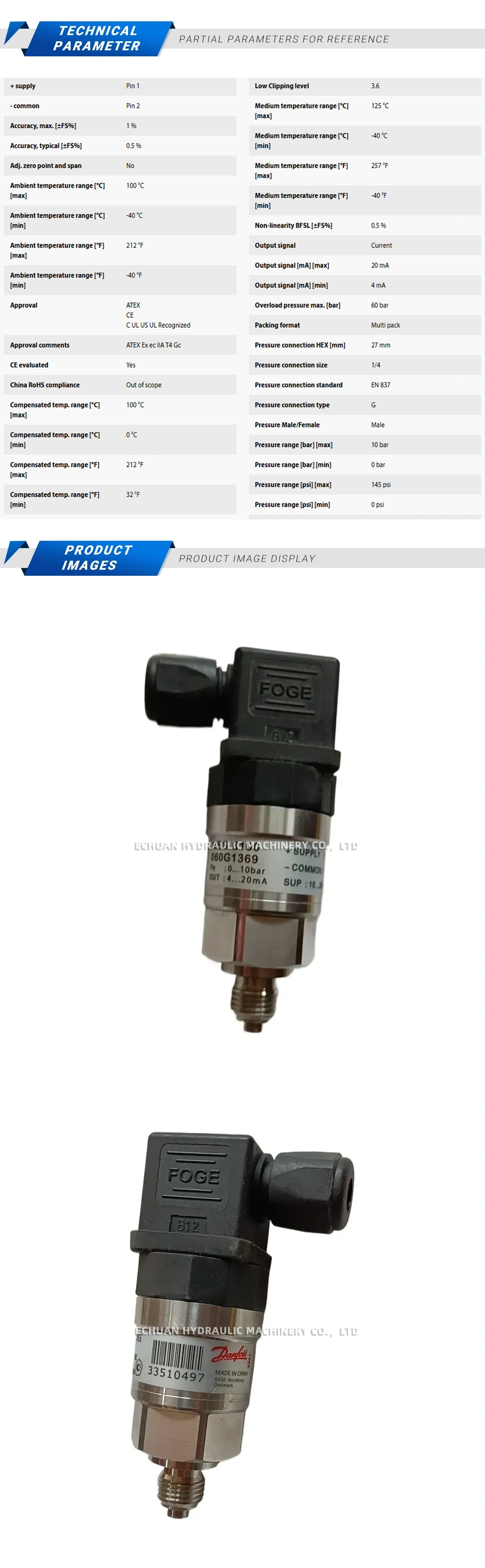

Danfoss MBS3100 060G1369 Description

Danfoss MBS3100 060G1369

Shop the Danfoss MBS3100 060G1369 pressure transmitter. This compact sensor offers a 0-10 bar range with a 4-20 mA output, designed for reliable pressure monitoring in harsh industrial and marine environments.
