Product Description

Danfoss MBC5100 061B010466

The Danfoss MBC 5100 is a compact, block-type pressure switch designed for use in demanding industrial and marine applications. Engineered for exceptional reliability, it features high vibration resistance and is suitable for harsh environments such as engine rooms, on-board ships, and in connection with pumps, compressors, and hydraulic systems. The MBC 5100’s robust design and various marine approvals ensure reliable performance where space and durability are critical factors. Its fixed differential provides simple and accurate monitoring and control of pressure levels.

Technical Specifications:

  • Pressure Range: 2 to 20 bar

  • Differential: 1.2 bar (Fixed)

  • Pressure Connection: G 1/4 Male

  • Contact Function: SPDT (Single Pole Double Throw)

  • Enclosure Rating: IP65

  • Approvals: Features all major marine approvals

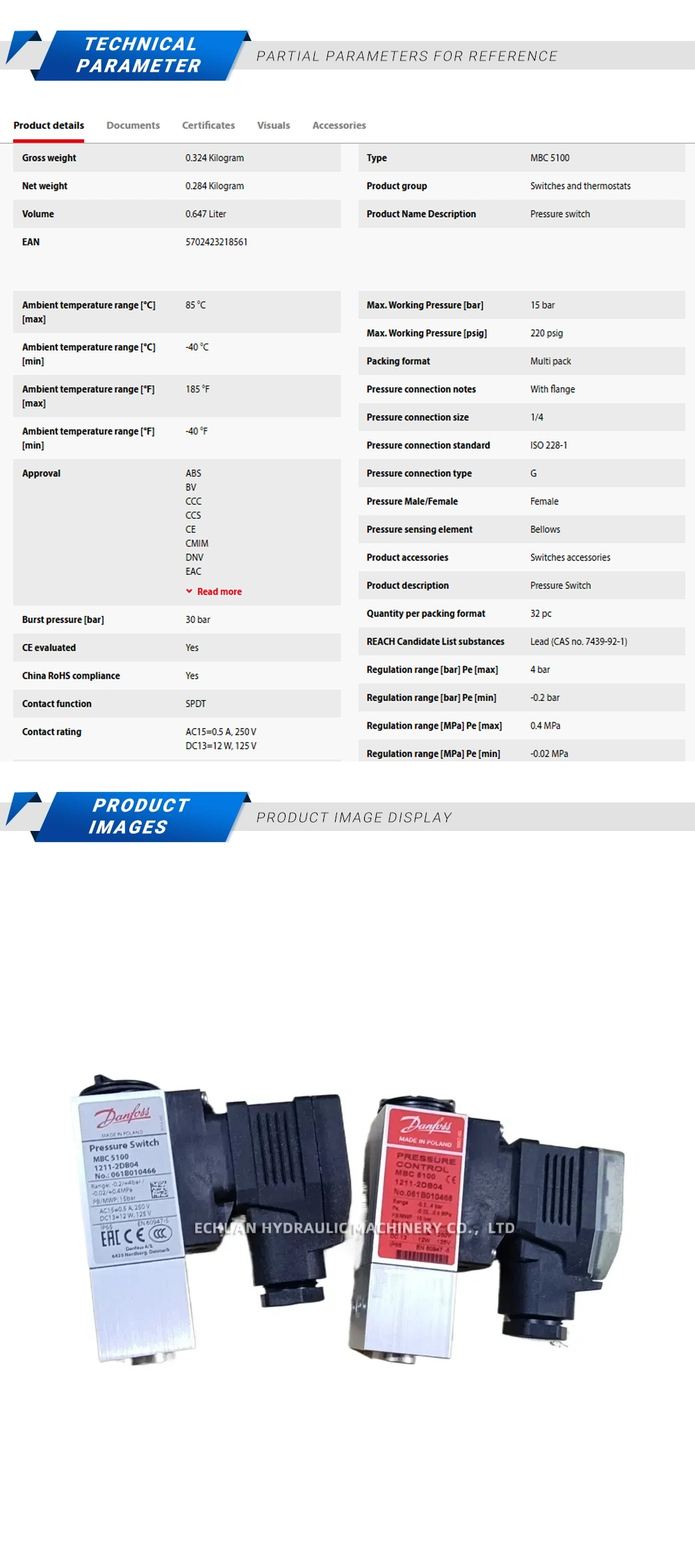

Danfoss MBC5100 061B010466 Description

Danfoss MBC5100 061B010466

Purchase the Danfoss MBC5100 061B010466, a compact and robust block-type pressure switch with a 2-20 bar range. Ideal for marine and industrial applications requiring high vibration resistance and reliability.
