Product Description
Danfoss MBS5100 060N1005
The Danfoss MBS 5100 series pressure transmitter is a high-performance, block-type sensor specifically designed for heavy-duty marine applications. This model, 060N1005, is engineered to withstand severe environmental conditions, offering exceptional vibration stability, robust construction, and a high degree of EMC/EMI protection. It is ship-approved and ideal for monitoring and control in demanding systems such as engines, pumps, and compressors found in maritime environments. Its reliable performance ensures accurate pressure measurement even under the most challenging circumstances.

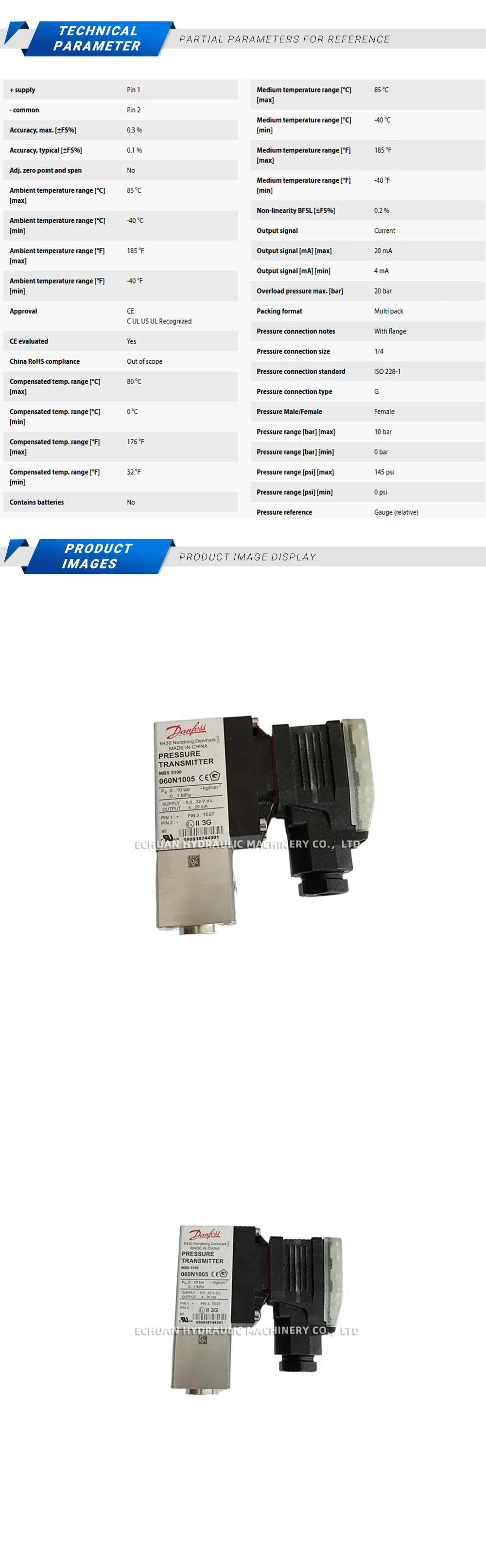

Technical Specifications:
- Pressure Range: 0 to 10 bar (Gauge)
- Output Signal: 4 – 20 mA
- Supply Voltage: 10 – 32 V DC
- Pressure Connection: G 1/4 Female (EN 837)
- Electrical Connection: DIN 43650-A, Pg 9
- IP Rating: IP65
- Approvals: DNV, GL, LR, MRS, RINA, ABS, BV, CCS, KRS, NKK (Ship approved)
Danfoss MBS5100 060N1005
Danfoss MBS5100 060N1005 ship-approved pressure transmitter, featuring a 0-10 bar range, 4-20 mA output, and a G 1/4 connection. Ideal for robust marine and heavy-duty industrial applications.
| Brand | DANFOSS |
|---|---|
| Model | MBS5100 060N1005 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbs5100-060n1005 |
