Product Description
Danfoss MBS3100 060G1612
The Danfoss MBS 3100 pressure transmitter is a high-performance sensor designed for reliable pressure measurement in demanding industrial and hydraulic applications. Built to withstand severe environmental conditions, it offers excellent vibration stability, robust construction, and a high degree of EMC/EMI protection. This compact transmitter is ideal for use in air compressors, water pumps, and various hydraulic systems where accuracy and durability are critical. Its design ensures reliable performance even when exposed to significant mechanical shocks, vibrations, and temperature variations.

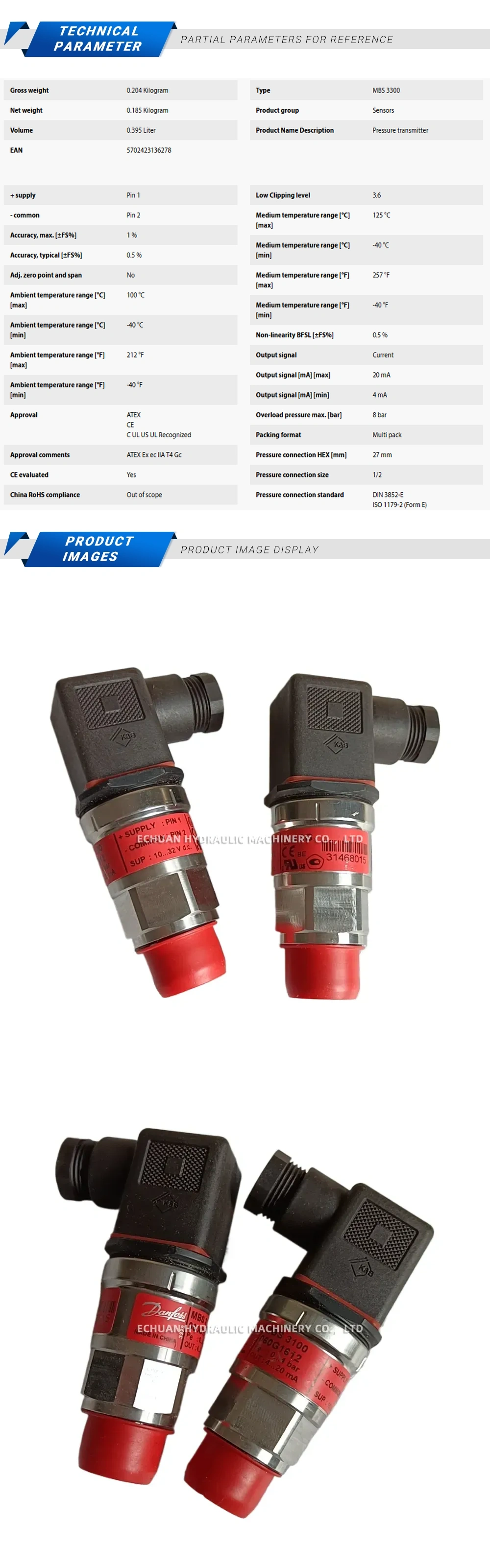

Technical Specifications:
- Pressure Range: 0 – 25 bar (Gauge)
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/4 A (EN 837)
- Electrical Connection: DIN 43650-A, PG 9
- Supply Voltage: 10 – 30 V d.c.
- Accuracy, typ. FS: ±0.5 %
- IP Rating: IP65
Danfoss MBS3100 060G1612
Shop the Danfoss MBS 3100 pressure transmitter, model 060G1612. This reliable sensor features a 0-25 bar range, 4-20 mA output, and a G 1/4 A connection, designed for harsh hydraulic and industrial environments.
| Brand | DANFOSS |
|---|---|
| Model | MBS3100 060G1612 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbs3100-060g1612 |
