Product Description
Danfoss MBS3100-060G1464
The Danfoss MBS 3100 compact pressure transmitter is engineered for use in a wide range of industrial and hydraulic applications, providing reliable pressure measurement even under harsh environmental conditions. This model is designed to be highly resistant to common issues like cavitation, liquid hammer, and pressure peaks, thanks to its integrated pulse-snubber. Its robust construction and excellent vibration stability ensure high-performance and accuracy for systems such as pumps, compressors, pneumatics, and water treatment facilities.

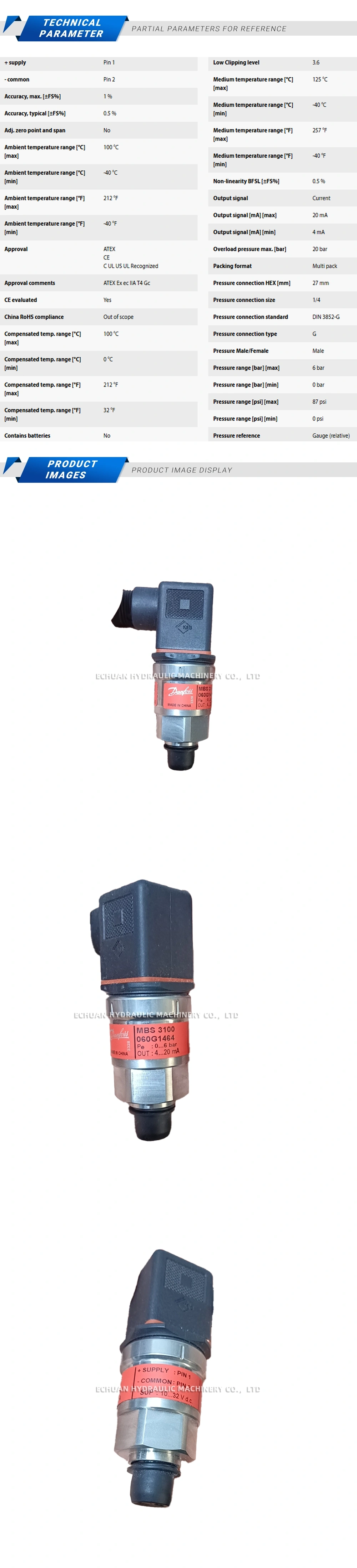

Technical Specifications:
- Pressure Range: 0 – 10 bar
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/4 A Male (EN 837)
- Electrical Connection: DIN-plug EN 175301-803-A
- Supply Voltage: 10 – 30 V DC
- IP Rating: IP65

Danfoss MBS3100-060G1464
Buy the Danfoss MBS 3100 pressure transmitter, part 060G1464. This compact sensor features a 0-10 bar range, 4-20 mA output, and a G 1/4 A connection for reliable industrial and hydraulic pressure monitoring.
