Product Description
Danfoss MBS33M 060G3126
The Danfoss MBS 33M pressure transmitter is specifically engineered for demanding marine applications, providing reliable pressure measurement even in harsh environmental conditions. This model is built to withstand severe vibrations, temperature fluctuations, and offers a high degree of EMC/EMI protection. Its robust, compact design and compliance with major marine approvals (such as LR, DNV-GL, RINA, ABS) make it an ideal choice for ship engine rooms, refrigeration systems, and various onboard hydraulic and pneumatic systems where accuracy and durability are paramount.

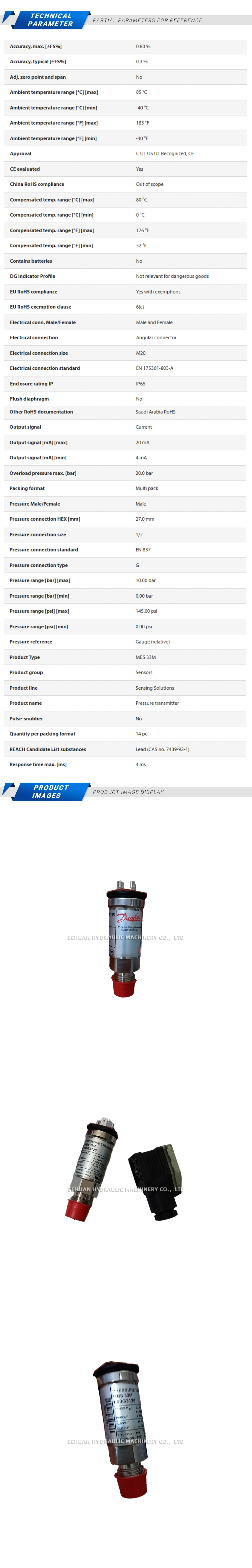

Technical Specifications:
- Pressure Range: 0 – 10 bar
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/4 A (ISO 228-1)
- Electrical Connection: DIN 43650-A, Pg 9 Plug
- Supply Voltage: 10 – 30 V d.c.
- Marine Approvals: Yes
Danfoss MBS33M 060G3126
Buy the Danfoss MBS 33M 060G3126 pressure transmitter, designed for reliable performance in harsh marine environments. Features a 0-10 bar range, 4-20 mA output, and G 1/4 connection.
