Product Description

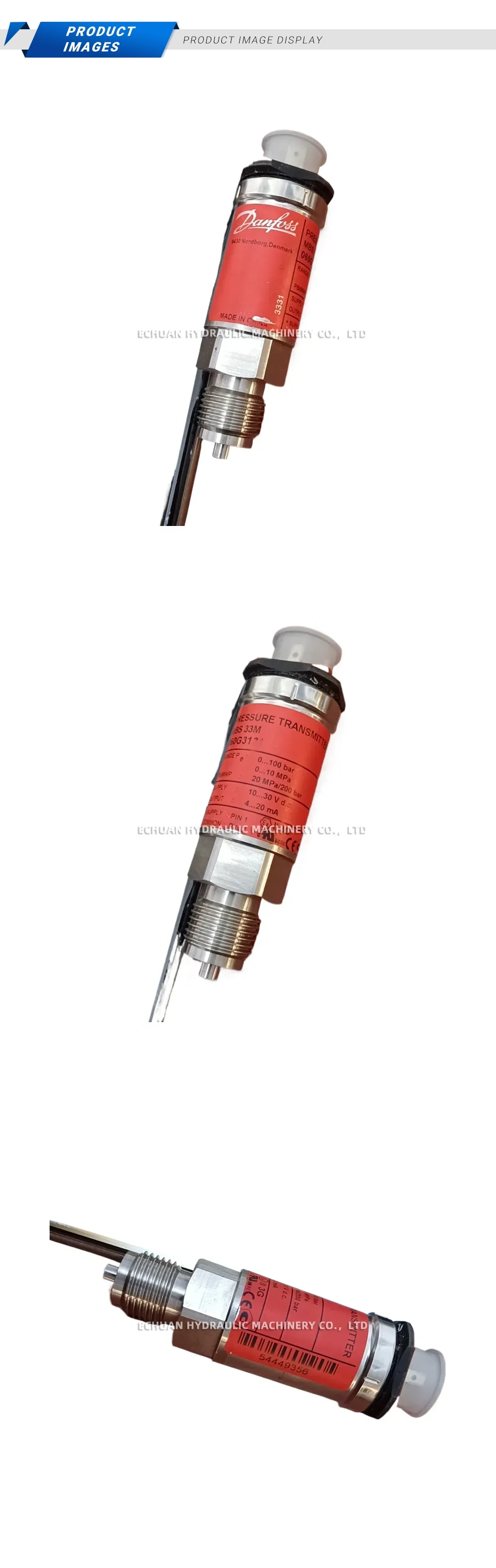

Danfoss MBS33M060G313
The Danfoss MBS 33M pressure transmitter is a high-performance sensor specifically engineered for demanding marine applications. This model is designed to provide reliable pressure measurement even in harsh environments characterized by severe vibrations, shock, and temperature fluctuations. Featuring a robust, compact design and a high degree of EMC/EMI protection, the MBS 33M is compliant with major marine classification society standards. Its construction ensures accurate and stable performance, making it an ideal choice for control, monitoring, and alarm systems in ship engines, pumps, compressors, and other onboard hydraulic and pneumatic systems.
Technical Specifications:
- Type: Pressure Transmitter, MBS 33M
- Pressure Range: 0 – 100 bar (Gauge)
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/4 A (ISO 228-1)
- Electrical Connection: DIN 43650-A, Plug PG 9
- Supply Voltage: 10 – 30 V DC
- Approvals: LR, DNV GL, BV, ABS, RINA, KR, PRS, CCS

Danfoss MBS33M060G313
Shop the Danfoss MBS33M060G313 pressure transmitter, engineered for marine use with a 0-100 bar range, 4-20 mA output, and G 1/4 connection. A robust and reliable sensor for harsh maritime environments.
