Product Description
DANFOSS MBT 5252 084Z8215

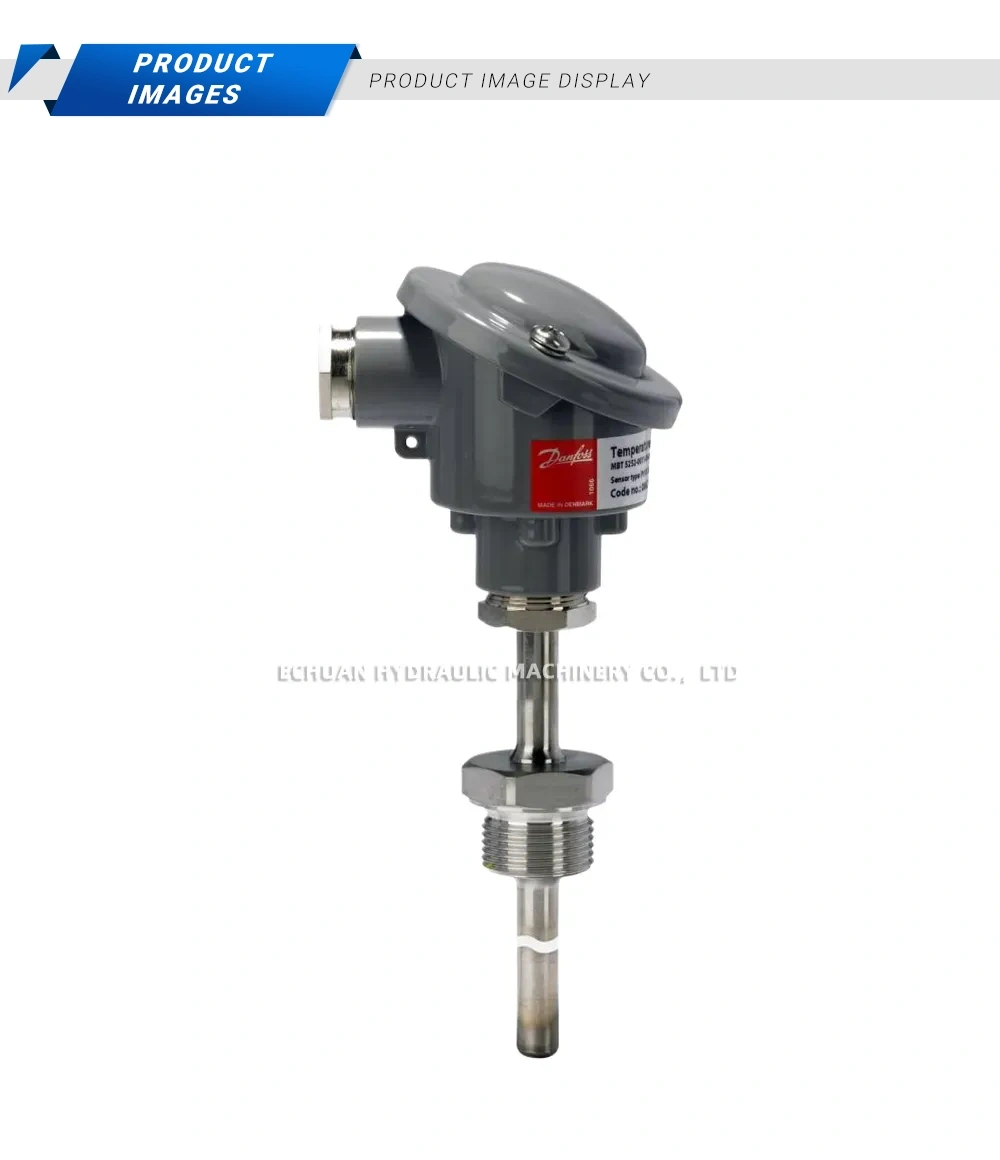

The Danfoss MBT 5252 is a heavy-duty temperature sensor engineered for reliable and accurate temperature measurement in demanding industrial and marine applications. It is designed to withstand harsh environments, including high vibrations and shocks. This model features a Pt 1000 sensing element, ensuring high accuracy and long-term stability. Its robust construction with a stainless steel protection tube makes it ideal for measuring and regulating temperature in fluid systems, such as those found in diesel engines, compressors, mobile hydraulic systems, and refrigeration plants.
Technical Specifications:
- Type: MBT 5252
- Sensor Element: Pt 1000
- Temperature Range: -50 to 200 °C (-58 to 392 °F)
- Protection Tube Length: 160 mm
- Process Connection: G 1/2 A
- Electrical Connection: DIN 43650-A, Pg 11
- Ingress Protection (IP) Rating: IP65

DANFOSS MBT 5252 084Z8215
Order the Danfoss MBT 5252 084Z8215 heavy-duty temperature sensor. Features a Pt 1000 element, -50 to 200°C range, and a robust 160mm stainless steel probe for reliable performance in harsh industrial and marine environments.
